Manual Documentation Number: EIR505-xx_5107m 31
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

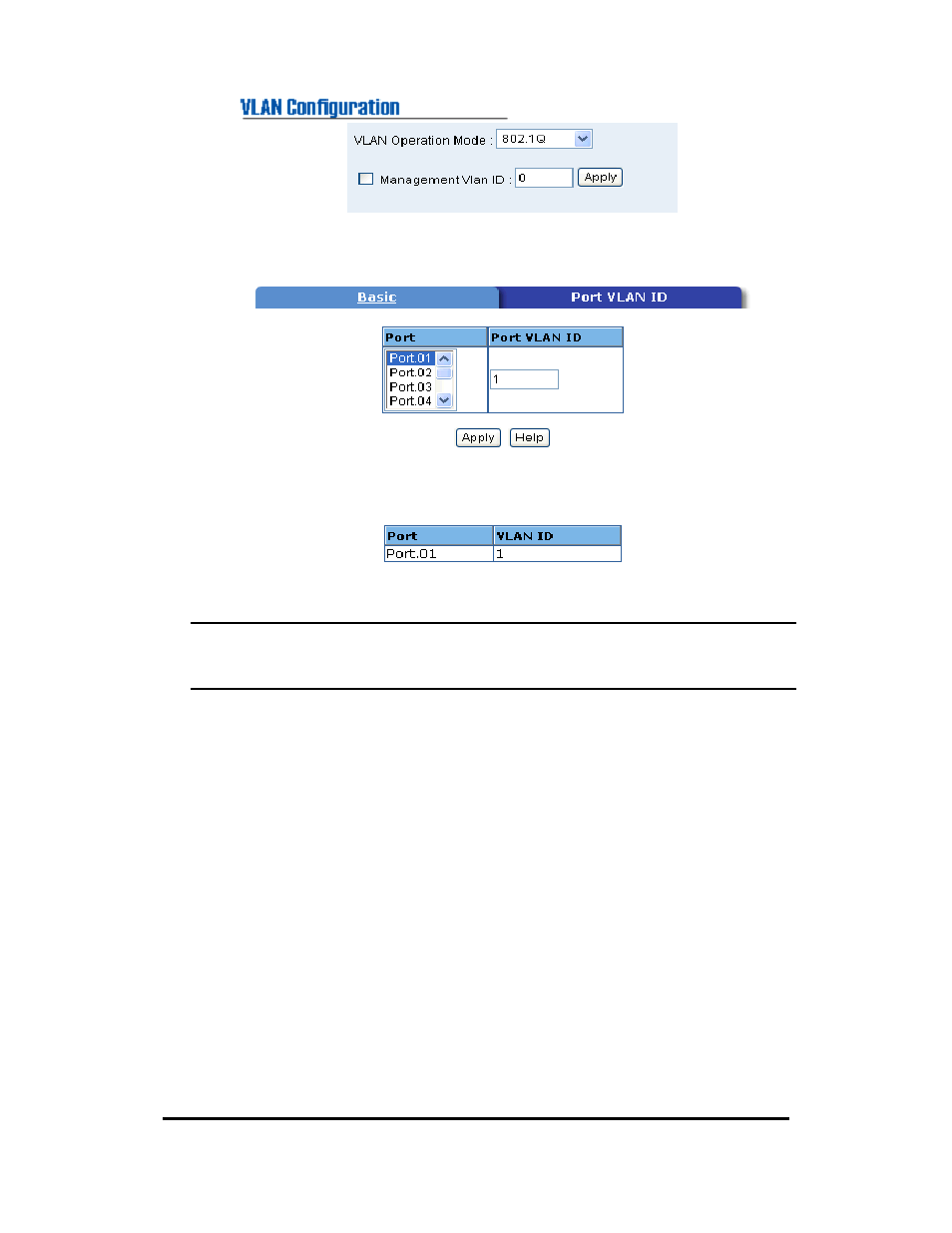

802.1q VLAN – Port VLAN ID interface
[NOTE] If the configuration is not saved, it will be lost if the switch is
powered off.
IP Address
Configure the IP Settings and DHCP client function
„ DHCP Client: Use to enable or disable the DHCP client function. When
the DHCP client function is enabled, the industrial switch will be
assigned an IP address from the network DHCP server. After the
“Apply” button is clicked, dialog box will indicate that the user that when
the DHCP client is enabled, the current IP will lost and the new IP must
be looked up on the DHCP server. The switch’s MAC Address will be
required to look up the new IP Address on the DHCP Server. To cancel
the DHCP client function, click “cancel”.
„ IP Address: Assign a static IP address. This is not required if DHCP
