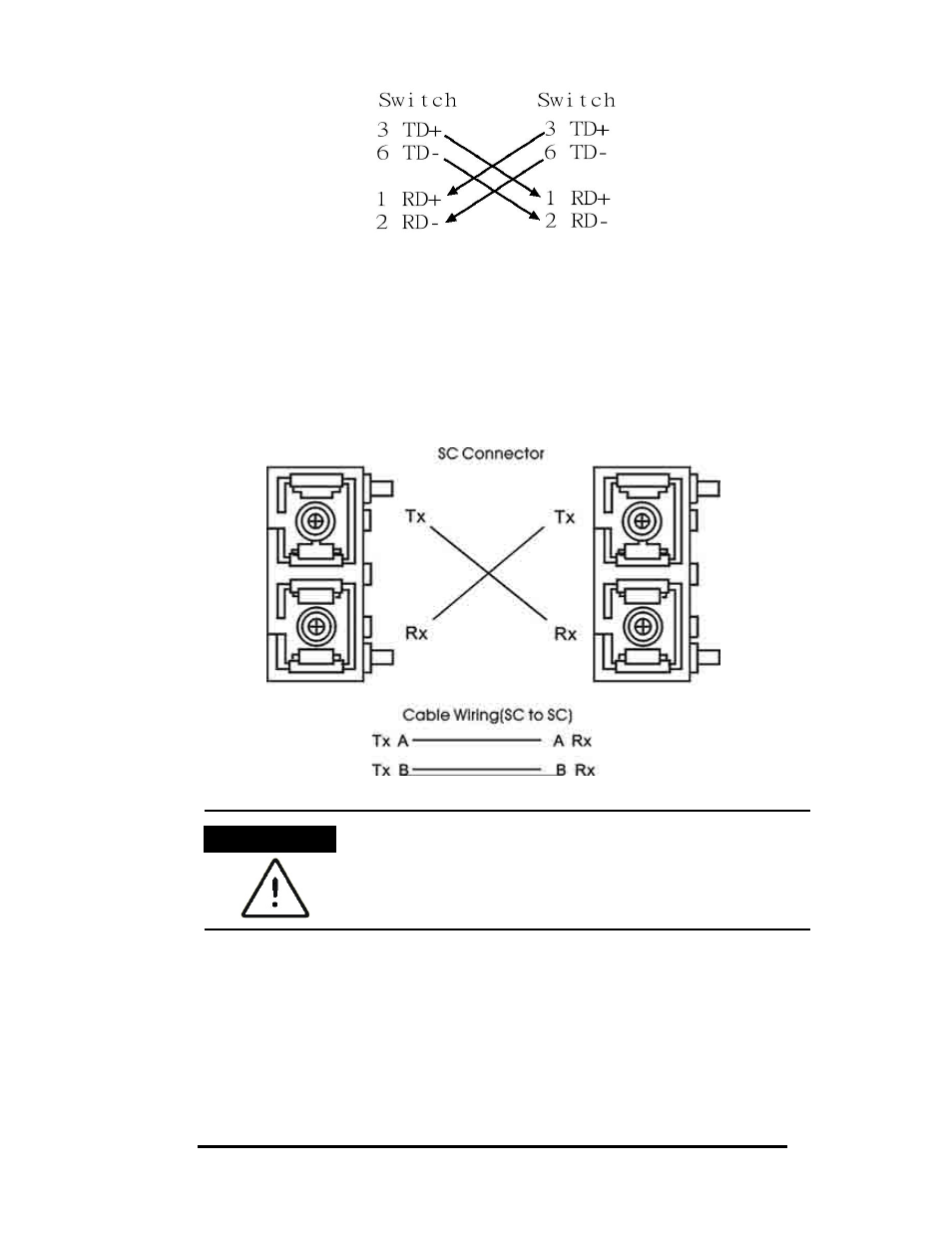

Cross Over Cable Schematic
„ Fiber Port
There is one 100Base-FX port. The fiber port is SC type connector in multi
mode (2Km) or single mode (30Km).
Connect the fiber port as described below.
Cabling
„ Use Category 5 cabling for RJ-45 port connections. The cable must
be less than 328 ft (100 meters) long.
„ Use 8/125 or 9/125 um for single-mode fiber. Distances up to 30
ATTENTION
This is a Class 1 Laser/LED product. Do not stare into
the Laser/LED Beam.
