Switch Settings
Used to assign the system name, location and to view system information
„ System Name: Assigns a name to the switch. The maximum length is
64 bytes
„ System Location: Assigns a physical location for the switch. The
maximum length is 64 bytes
„ System Description: Displays the description of switch. This is read
only and cannot be modified
„ Firmware Version: Displays the firmware version
„ Kernel Version: Displays the kernel software version
„ Hardware version: Display the hardware version
„ MAC Address: Display the unique hardware address assigned by
manufacturer (this value is different for each switch)

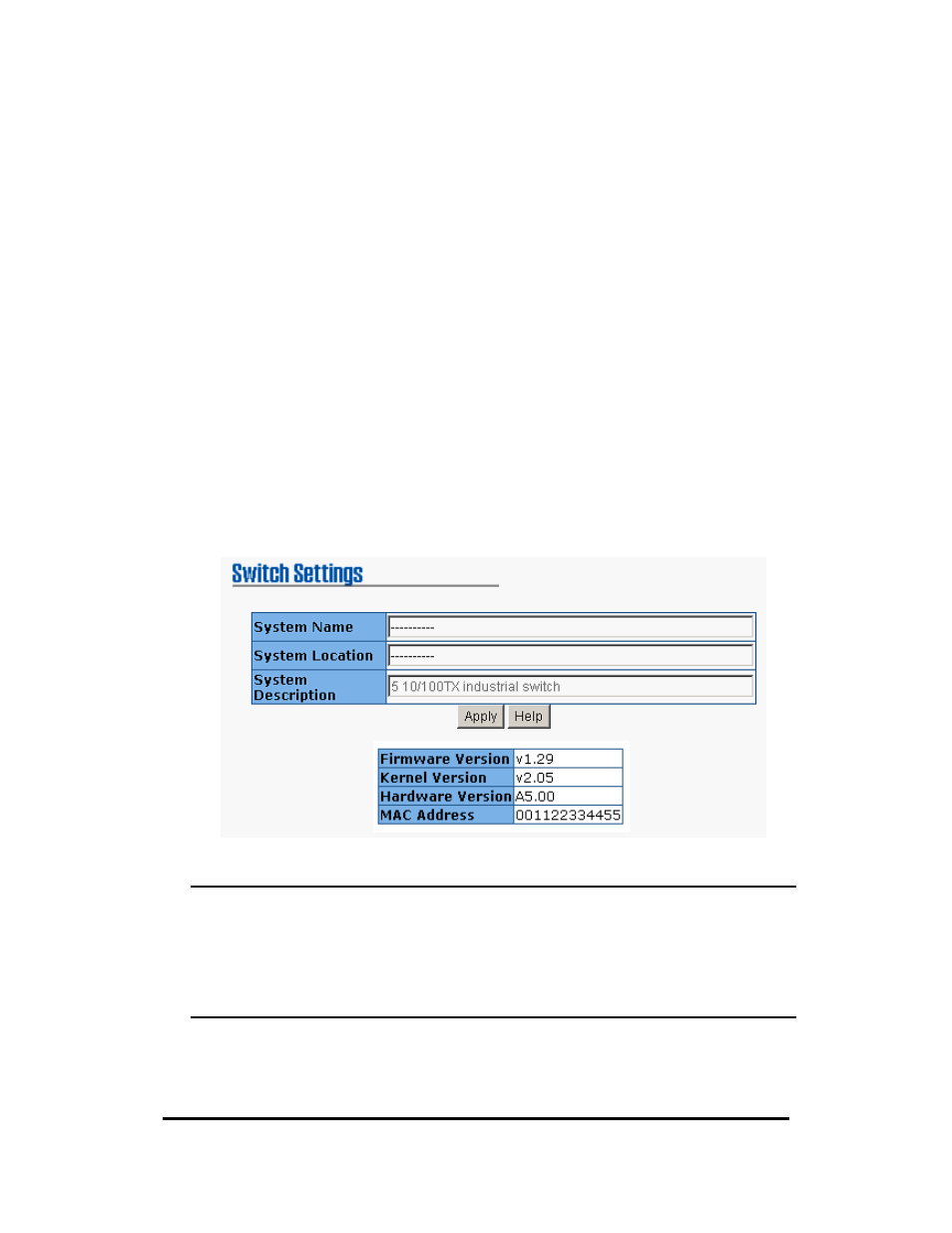

Switch settings interface
[NOTE] If the configuration is not saved, it will be lost when the switch
is powered off.
[NOTE] The Firmware, Hardware, and Kernel versions listed above are
current as of the date this manual was produced.
