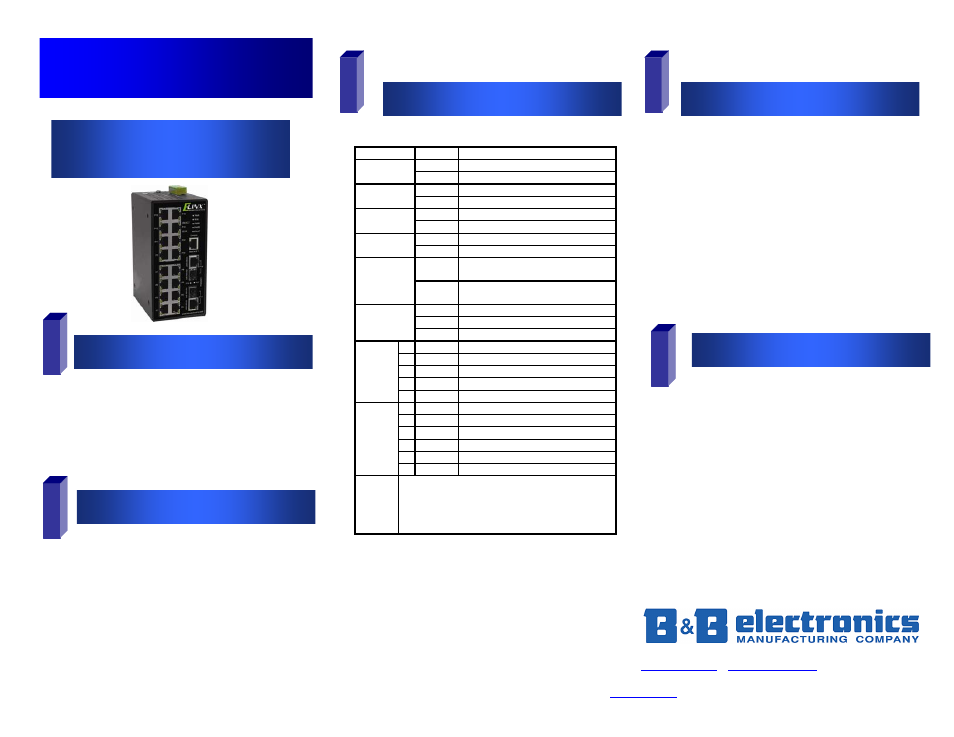

Quick Start Guide
Elinx Managed Ethernet Switch
EIR618 Series
Items Included
1
2
3
LED Chart Hardware Installation
Log into the Switch 5
4
o Ethernet Switch
o Console Cable (RS-232 RJ-45 to DB-9)
o
CD with Support Manual
o This Quick Start Guide
o
Panel Mount Bracket
o IP Address: 192.168.16.1
o
Subnet Mask: 255.255.255.0
o Gateway: 192.168.16.254
o
User Name: root, Password: root
LED Status Meaning
Green The Switch is powered on
PWR
Off The Switch is powered off
Green Power Source 1 is available
PWR1
Off Power Source 1 is unavailable
Green Power Source 2 is available
PWR2
Off Power source 2 is unavailable
Red Power or Port failure
Fault
Off Normal Operation
Green
The Switch is the master of a redundant
ring (X-Ring)
R.M
Off
The Switch is not the master of a
redundant ring.
Green SFP Port is linked
Blinking Data is being transmitted or received
LINK/ACT
Port 17/18 *
SFP Off Not connected to the network
T Green Port is linked
T Blinking Data is being transmitted or received
T Off Not connected to the network
B Green Operating at 1000M
Port
17/18*
RJ-45
B Off Disconnected or below 1000M
T Green Connected to the network
T Blinking Data is being transmitted or received
T Off Not connected to the network
B Yellow Operating in full-duplex
B Blinking Data collision
P1-16 *
B Off Half-duplex or not connected
*Note
Ports 1 through 16 are 10/100 RJ-45, Ports 16 & 17 are
100/1000 RJ-45 or SFP.
o
Record the switch’s MAC Address in the space
provided. The MAC Address is printed on the product
label. NOTE: Provide the MAC Address to your
Network Administrator. The Network Administrator
should provide an IP Address, Subnet Mask, and
Gateway.
o Select a mounting location and install with the attached
DIN rail clip or included panel mount kit.
o Connect power to the switch
o
12 to 48 VDC
o Redundant inputs are available with fault
contacts.
NOTE: The installation of an SFP Module disables
the associated RJ-45 Port.
o These instructions are for Web based management.
Refer to the User’s Manual for instructions concerning
console management.
o Connect a switch port to a stand alone PC. Change the
PC’s network IP Address to allow it to connect to the
switch (ex: 192.168.16.2). Use the default subnet mask
and gateway.
o Launch the PC’s web browser and navigate to the
switch by typing the switch’s IP Address in the browser
address window.
o Navigate the web page by expanding the folders on the
left side of the web page.
Default Settings
