Wiring the Fault Alarm Contact

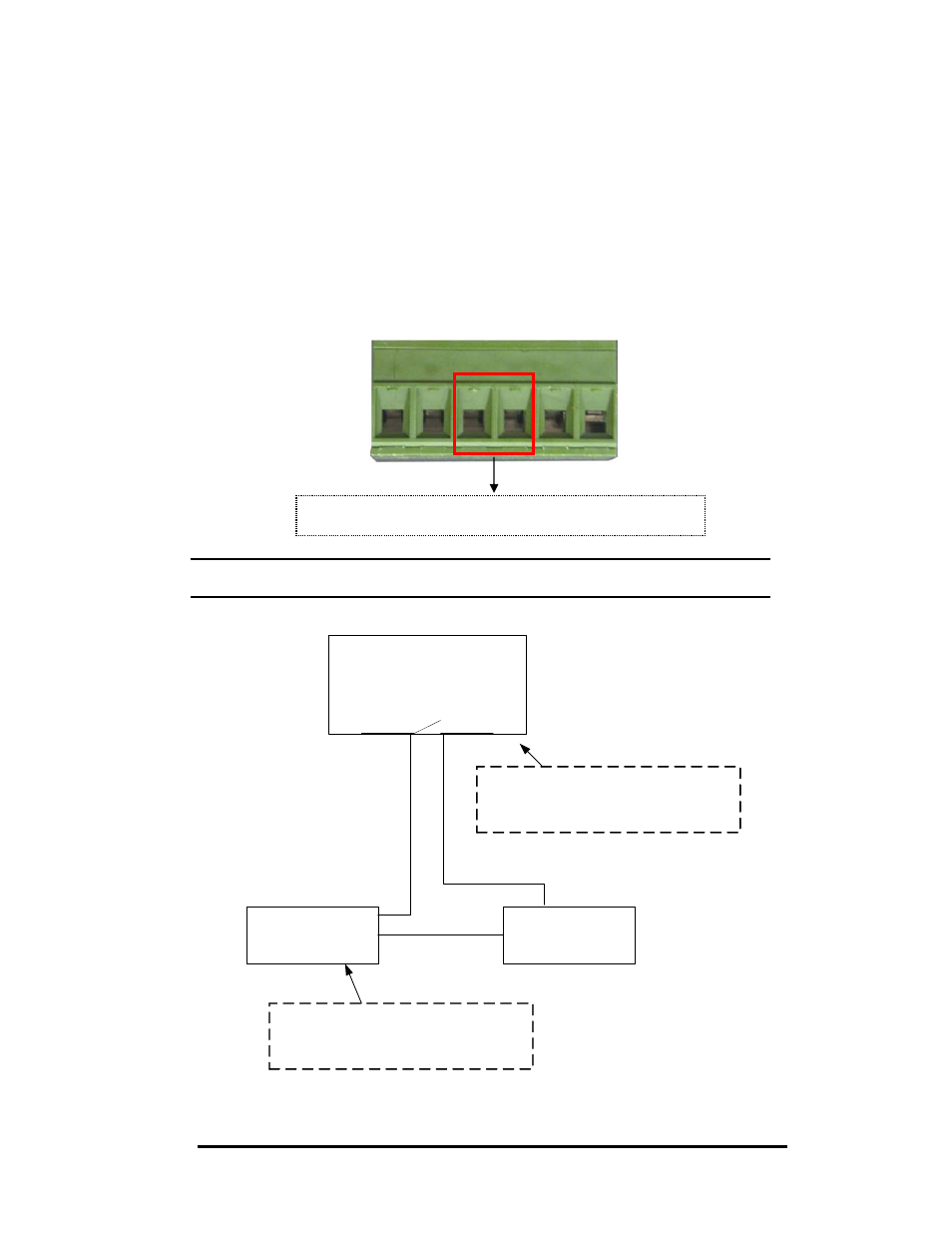

The fault alarm contact are located in the middle of terminal block connector
as shown below. Insert the wires and set the Dipswitch to “ON”. When a
power source fails or a link fault occurs, it will be detected and cause an
open circuit. The following figure shows an application example for the fault
alarm contact.
[NOTE] The wire range of terminal block is from 12~ +24 AWG.
Fault Alarm Contact
24V DC Buzzer 24V Battery
The open circuit will form when the
power failure or port link failure.
The fault alarm device will send a
warning signal to warn the user, ex:
alarm sound or flash light.
Insert the wires into the fault alarm contact
1A@24V
