Media Dependent Adapters (MDAs)
893-01010-A B-5
3. Insert the MDA into the slot, taking care to slide the MDA onto the guides
“see
Figure B-3 ”.
The guides ensure that the MDA connector plugs correctly into the switch
motherboard. The guides are part of the plastic and metal chassis.

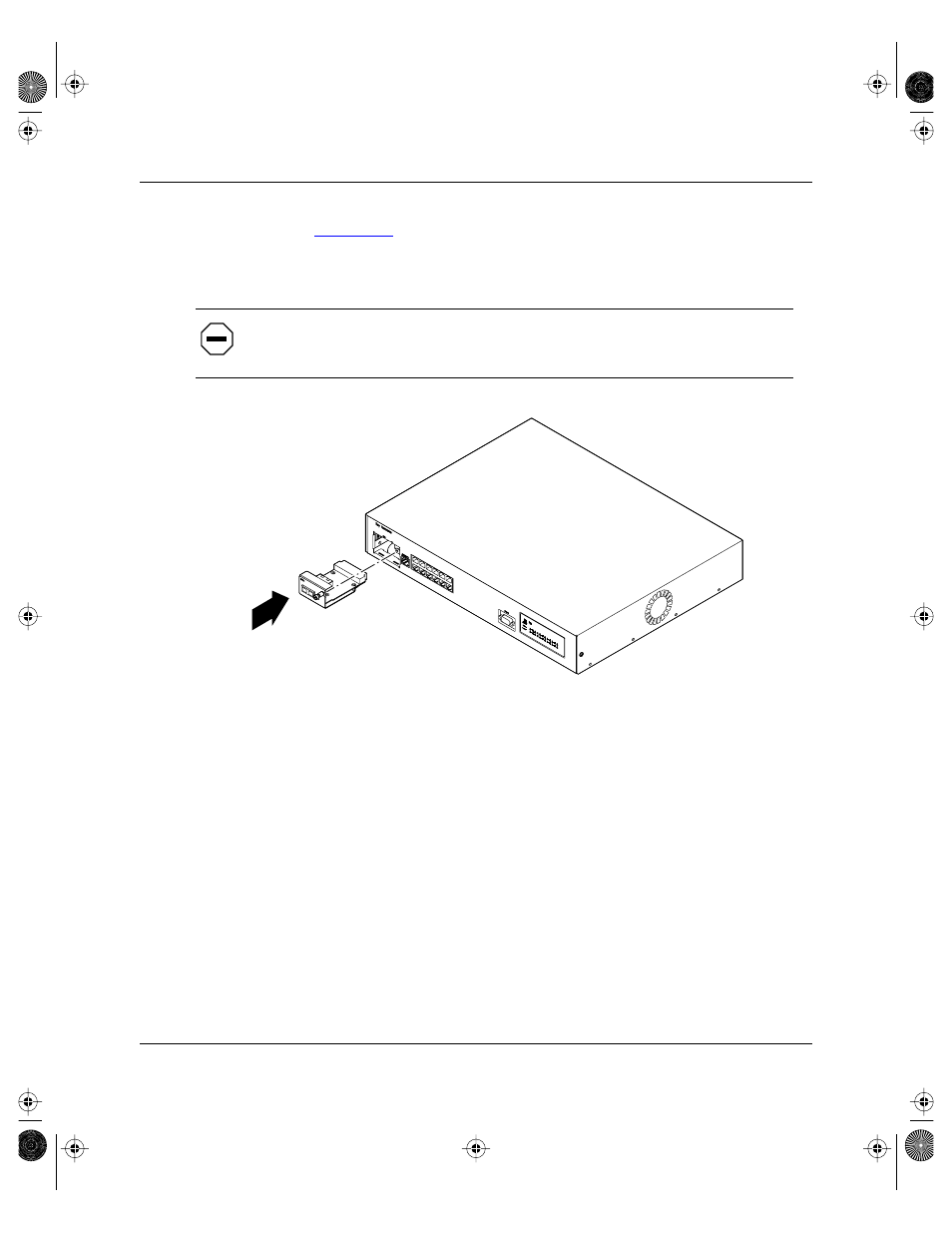

Figure B-3. Installing an MDA
4. Secure the MDA in the chassis by tightening the thumb screw on the
front panel.
5. Attach the high-speed device to the port.
6. Plug the AC power cord into the switch.
Caution: Make sure the MDA slides in on the guides. Failure to align the
guides could result in bent and broken pins.
7532FA
