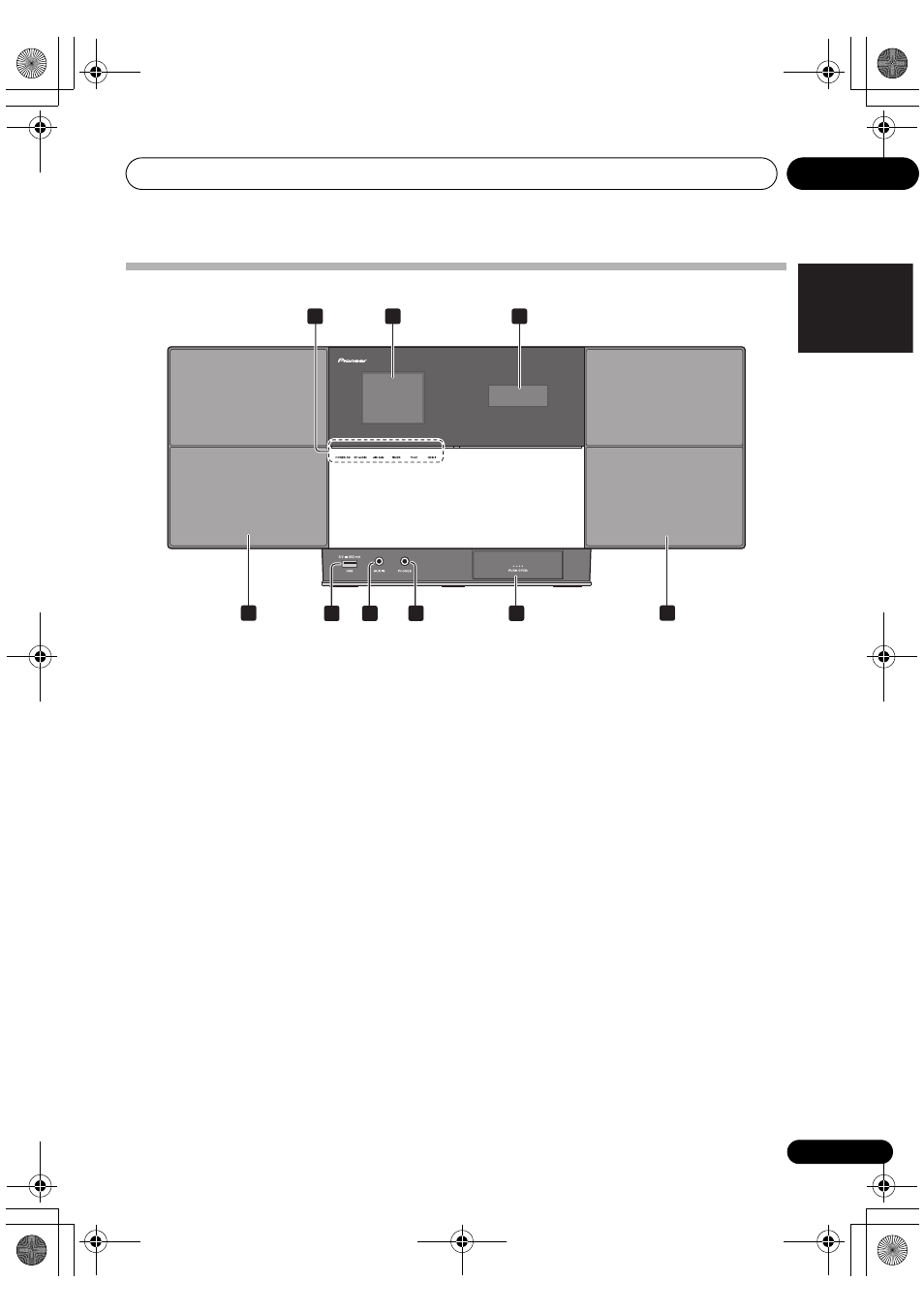

Front panel
1 POWER ON
When the power is on, this indicator lights.
BT AUDIO
When BT Audio is selected as the input source, this
indicator lights.
AIR JAM
When Air Jam is selected as the input source, this
indicator lights.
TIMER
When the wake-up timer is set to On, this indicator
lights.
TUNE
When the tuner receives FM broadcasts, the TUNE
indicator lights.
HDMI
When this unit is recognized by another HDMI
compatible component, this indicator lights.
2 Main Display
3 Sub Display
4 Speaker units
5 USB port
6 AUX IN
Use to connect auxiliary components.
7 PHONES
Use to connect headphones.
8 iPod/iPhone connector port
4 4
3
5 6 7 78
2 1
