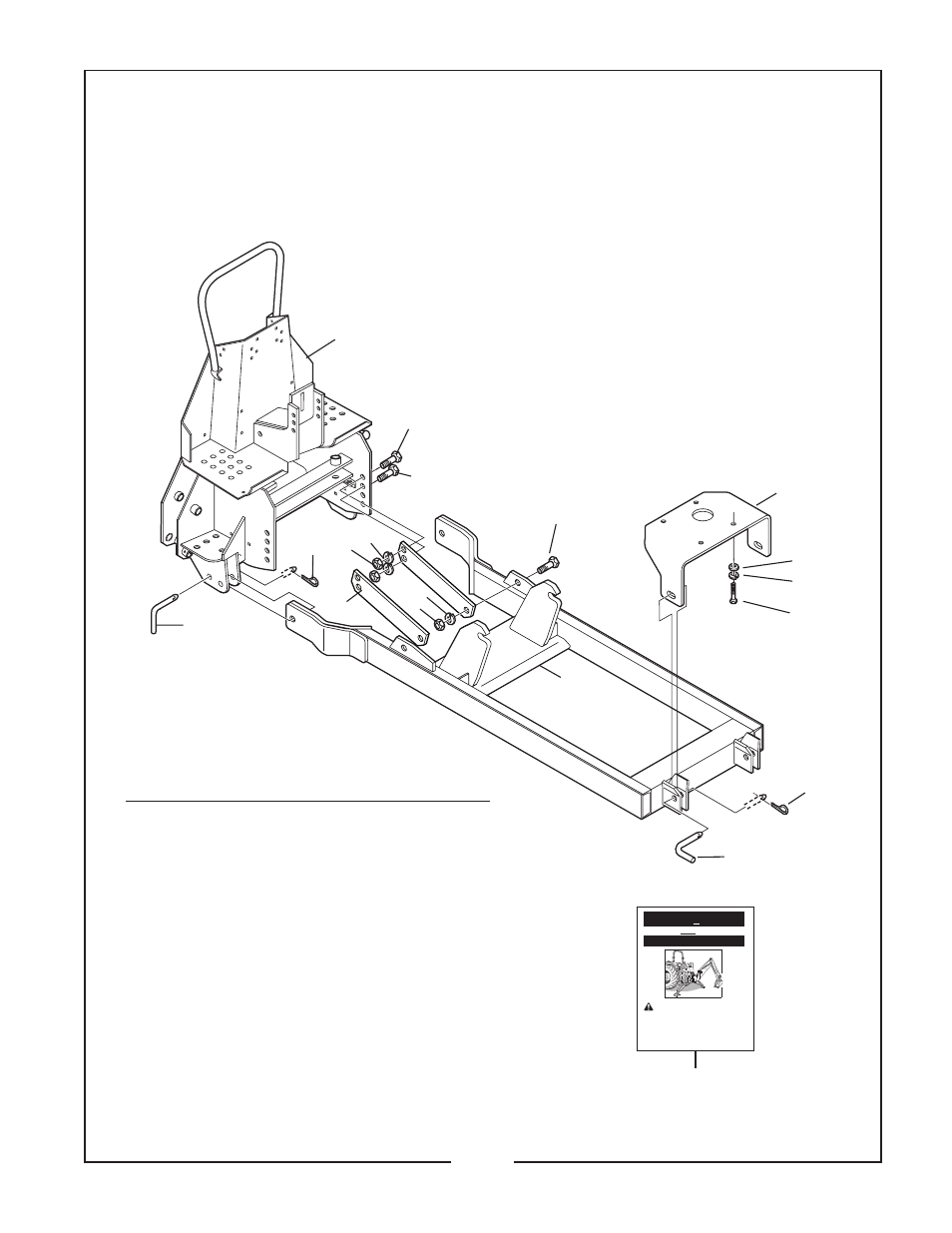

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
14-13-50
REF. PART
NO. NO. QTY. DESCRIPTION
1 50056101 1 Subframe Weldment
2 50056103 1 Instruction Sheet
3 50056149 1 Front Mount
4 50034919 2 Brace
5 —— 2 Capscrew 7/8” x 2-1/2” G5 ZP
6 —— 2 Lockwasher 7/8” CP
7 —— 2 Hex Nut 7/8” CP
8 44334 4 Capscrew M12 x 1.25 x 30 G8.8 ZP
9 44200 4 Lockwasher M12 ZP
10 44269 4 Flatwasher M12 ZP
11 —— 2 Hex Nut 7/8” CP
12 —— 2 Lockwasher 7/8” CP
13 —— 2 Capscrew 7/8” x 2” G5 ZP
14 50005860 2 Cotter Hair Pin
15 50032825 2 3-Point Lower Pin
16 0461086 2 Jack Clip Pin
17 50034870 2 Lock Pin
18 44896 2 Capscrew 3/4” x 2” NF
19 –––– 2 Lockwasher 3/4”
20 44897 2 Hex Nut 3/4” NF
BACKHOE
MAINFRAME
1
3
5
7
6
13
18, 19, 20
16
17
15
14
12
11
10
9
8
4
50056100 SUBFRAME KIT
Bush Hog BH650, BH750 Backhoes
Used on Kioti DK45S Tractor
with Bush Hog M346, 3545;
Great Bend 2136, 3545;
Kioti KL451 & KL1470S Loader Mounts
