BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
14-13-32

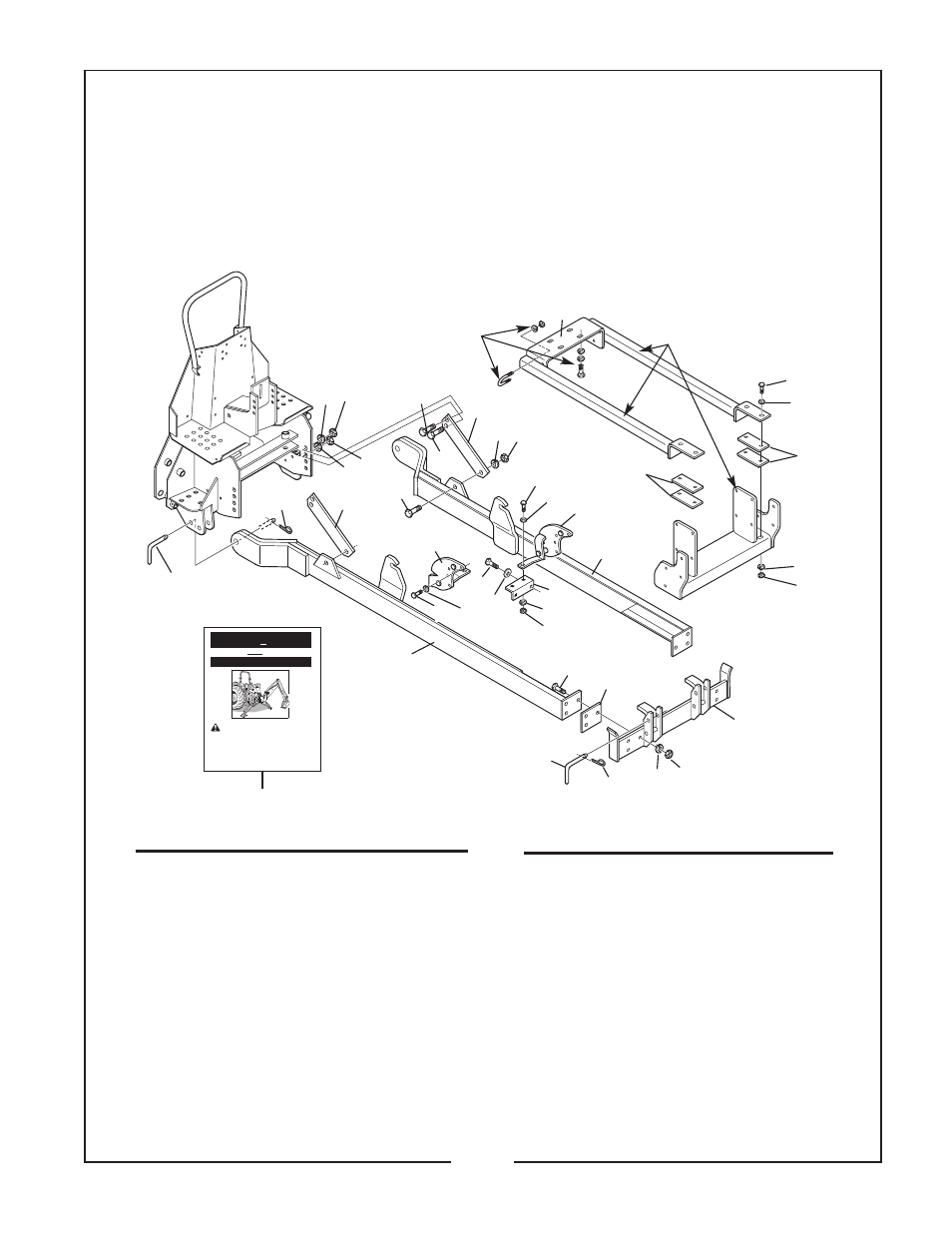

50045926 SUBFRAME KIT
For Bush Hog BH650, BH750, BH850 Backhoes
Used on Ford / New Holland 1530, 1630, 1725, 1925, TC25, TC25D,
TC29, TC29D, TC29DA, TC30, TC33, TC33D,
Case IH D25, DX25, D29, DX29, D33 and DX33 tractors
with Bush Hog M246 and
Great Bend 2130 Loader
31
34
35 36
32
4
26
5
15
20
27
2
29
24
18
Bush Hog Loader
Mount Assembly
28
13
REF. PART
NO. NO. QTY. DESCRIPTION
1 –––– 2 Capscrew 1/2” x 1-1/4” Gr.5 ZP
2 15032 6 Capscrew 5/8” x 2” NF Gr.5 ZP
3 44920 4 Capscrew 5/8” x 2-1/2” Gr.8 NF ZP
4 15046 2 Capscrew 7/8” x 2” Gr.5 NF ZP
5 –––– 2 Capscrew 7/8” x 2-1/2” Gr.5 ZP
6 44895 2 Capscrew M16 x 2 x 30 Gr.8.8 ZP
7 44394 8 Capscrew M12 x 1.75 x 30 Gr.8.8
8 –––– 2 Hex Nut 1/2” CP
9 44743 10 Hex Nut 5/8” NF
10 44061 2 Hex Nut 7/8” NF CP Class 2B
11 –––– 2 Hex Nut 7/8” CP
12 –––– 2 Lockwasher 1/2” CP
13 –––– 6 Lockwasher 5/8” CP
14 –––– 8 Lockwasher M12 ZP
15 –––– 4 Lockwasher 7/8” CP
16 –––– 2 Flatwasher 1/2” ZP
17 –––– 4 Flatwasher 5/8” ZP
18 0461086 2 Jack Clip Pin
10
23
7 14
21
23
15 11
Bush Hog Loader Mount
Hardware
27
17
3
9
1 16 22
13
6 25
12
8
13
9
REF. PART
NO. NO. QTY. DESCRIPTION
19 50045922 1 R.H. Frame Rail Weldment
20 50045921 1 L.H. Frame Rail Weldment
21 50035379 1 R.H. Rear Axle Weldment
22 50035380 1 L.H. Rear Axle Weldment
23 50034919 2 Brace
24 50034870 2 Lock Pin
25 50036410 1 Angle
26 50036411 1 Rear Mount Plate
27 50036412 4 Shim
28 50036429 1 Front Mount Weldment
29 50034957 2 Shim Plate
31 50032825 2 3 Point Lower Pin
32 50005860 2 Cotter, Hair Pin
33 50036431 1 Instruction Sheet
34 44896 2 Capscrew 3/4” x 2” NF
35 –––– 2 Lockwasher 3/4”
36 44897 2 Hex Nut 3/4” NF
19
CAU ION Be ore e v ng ra t r se t s op en i e ock r ke re eve yd au c
p es ure a d rem ve k y
CAU ION Do Not l ow b st nd rs n wo k ar a
NSTALLAT ON NOTES • Rem ve l mo n ng r c e s f m r te R f r o F g 1 on P ge 2 o n u e ha a l om on n s h ve e n i c u e ) • C ean h e d d ho es n he r c or ame w h a t p of he r pe s ze Pa nt u t a d or eb s
in he h e ds m y c use o ts o m s l gn r n t i h en c r e t y
• Th s m u t n k t as b h s a da d nd me c f s e e s n u e ha he p o e f s e e s a e u ed n he o r ct
l c t ns ( e er o ig 2 n Pa e 2 as n a d o de i y g c r e t a t n r )
• Le ve l mou t g ha dw re o se n i mou t ng i i com l t y i s a ed • A t r he m u t n k t n t l t n i co p e e t g en a ha d a e t t e s ec ca o s g v n n t e b t o que h rt
on P ge 6
• A t r he r t ou a d t en f e e e y 4 h u s f r he r t ay f o e a on a l m un ng a dw re h u d be h c ed
f r r pe t r ue p c f a ons
a e 1 1 0 / 4 02 3 n r c i n S ee No 5 04 9 0
OR RACTOR MOD LS JOHN DEERE ® 770 90
FOR MOUN ING Bush Hog 650 / 750 BackHoe G eat Bend 2165 / 2175 BackHoe
BUSH HOG / GREAT BEND
SUBFRAME ATTACH NG KIT 5004 534
s ng Bush H g M146 oad r G eat end 2 25 L ad r
33
JUNE, 2008
