BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
14-9-7

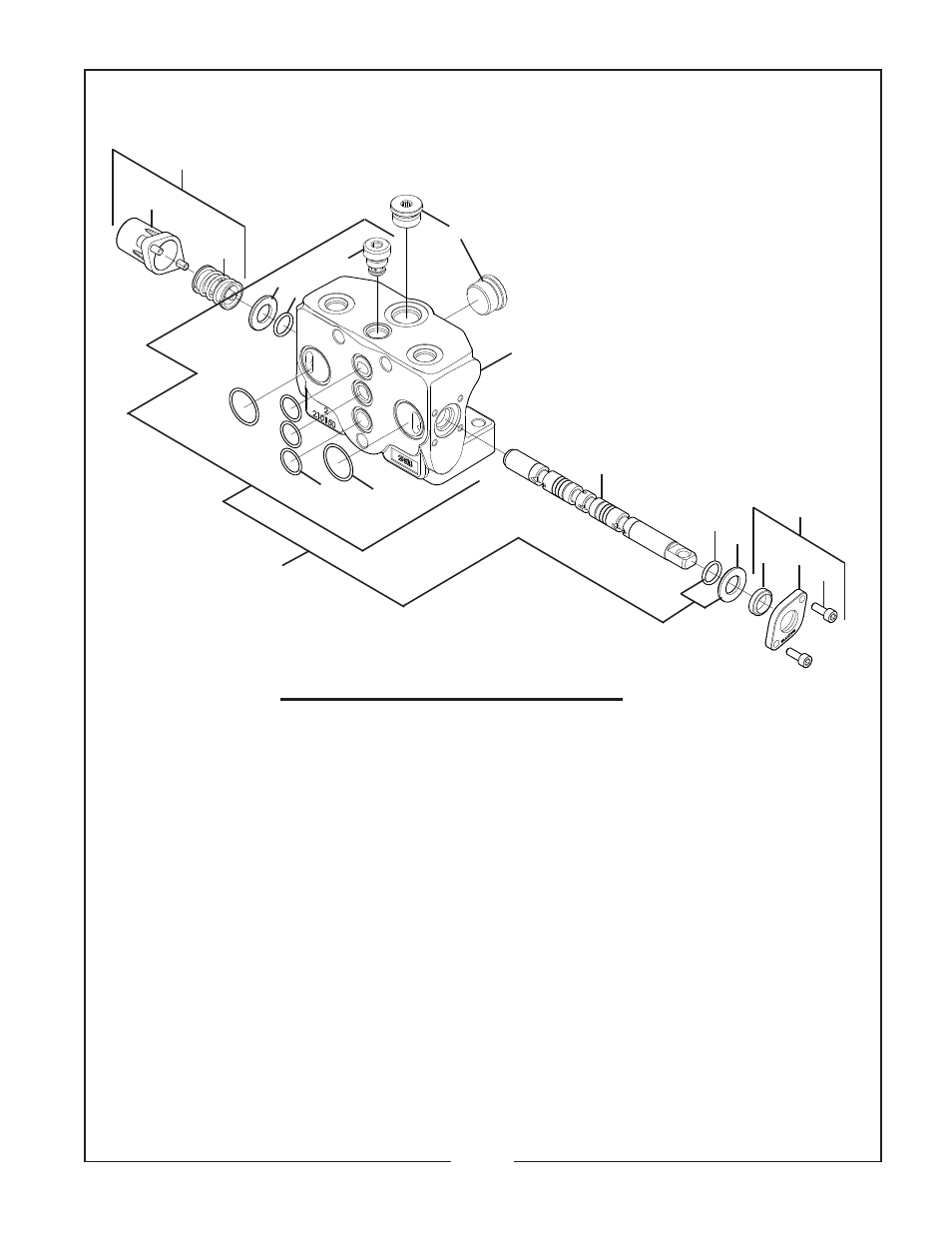

50033291 R.H. STABILIZER SECTION
For Control Valve 50032997 (BH650 & BH750)
and Control Valve 50102278 (BH850 & BH950)
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50033306 1 Upper Dust Cap
2 –––– 2 Screw, M5 x 14 – 8.8
3 –––– 1 Flange
4 –––– 1 Dust Cover 14 x 3.5
5 50033310 1 Spool
6 25H50798 2 Valve Plug (SAE 10)
7 50033307 1 R.H. Stabilizer Working Section
8 –––– 1 Working Section
9 –––– 2 O-Ring 14 x 2 NBR 70 SH
10 –––– 2 Seal 14 x 25.5 x 2.3
11 –––– 1 VR Kit
12 –––– 2 O-Ring 26.7 x 1.78 NBR
13 –––– 3 O-Ring 17.17 x 1.78 NBR
14 50033309 1 Spool Control Kit
15 –––– 1 End Cap Kit
16 –––– 1 Spool Control Kit
50033302 1 Seal Kit
–––– 1 O-Ring 11.3 x 2.4 NBR
–––– 2 O-Ring 14 x 2 NBR
–––– 3 O-Ring 17.17 x 1.78 NBR
–––– 2 O-Ring 26.7 x 1.78 NBR
–––– 2 O-Ring 19.18 x 2.46 NBR
–––– 1 Dust Cover 14 x 3.5
15
14
10 9
9
10
1
5
8
6
4 3
2
11
12
13
16
7
SEPTEMBER, 2003
