Bush Hog BH950 - Manual (Page 11)

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
14-4-1
REF. PART
NO. NO.
QTY. DESCRIPTION
1 –––– 4 Capscrew 5/16” x 2”
2 15602 13 Locknut 5/16”
3 –––– 2 Lockwasher 3/8”
4 –––– 2 Flatwasher 3/8”
5 –––– 2 Capscrew 3/8” x 1”
6 44824 2 Roll Pin 1/2” x 2-1/2”
7 50033323 1 Mainframe w/ Decals, BH650
50033650 1 Mainframe w/ Decals, BH750
8 50033512 2 Swing Cylinder w/ Decal
9 50032923 2 Pin, 1.00 x 4.56”
10 50033030 2 Bearing, Garlock
11 50032917 2 Swing Pin Weldment
12 50032841 1 Swing Frame Assembly, BH650
12A 50033145 1 Swing Frame Assembly, BH750
13 50033190 2 Pin, 1.00 x 4.66”
14 50102244 2 Flatwasher 1-3/4” Narrow, Hard
REF. PART
NO. NO.
QTY. DESCRIPTION
15 50033247 1 Fast Pin 1.00 x 4.50”
16 50101785 2 Rubber Bumper
17 50102292 1 Decal, Danger
18 50102293 1 Decal, Warning
19 50102294 1 Caution Decal, BH650
50033476 1 Caution Decal, BH750
20 50102296 1 Decal, Important
21 50033282 1 Decal, Inlet-Outlet
22 50033366 1 Decal, Warning
23 50028063 2 Grease Fitting
24 50033361 2 Grease Fitting
25 449 2 Grease Fitting
26 50100238 2 Decal, Caution
27 50032976 2 Bushing 1-1/4 x 1 x 1.75”
28 50033096 2 Bushing 1-1/2” x 1-1/4” x 1-3/4”
29 50033364 1 Decal, Warning

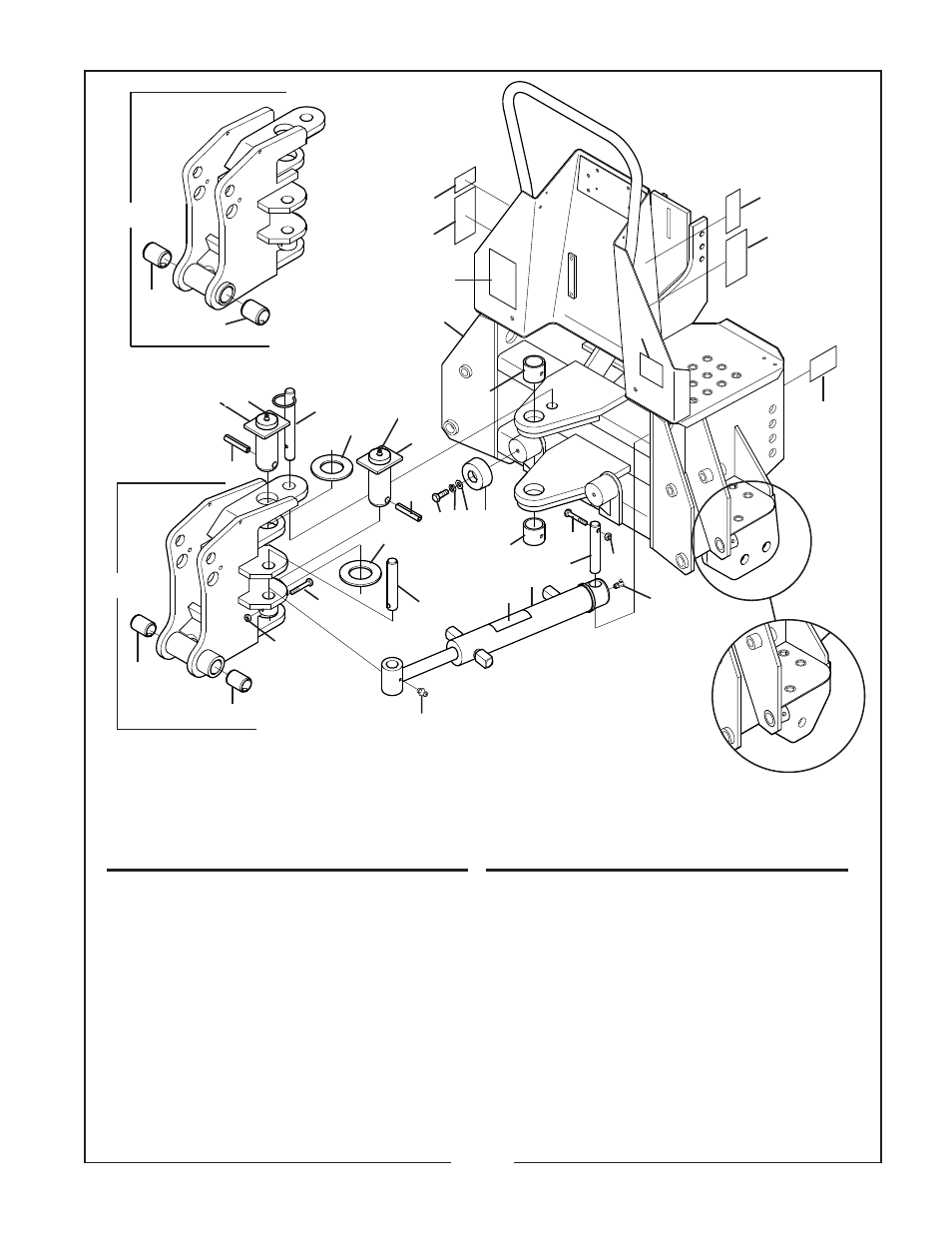

MAIN FRAME, SWING FRAME & RELATED PARTS
Model BH650, BH750
S/N 3-00001 and Above
27
27
23
2
11
11
14
13
24
Old Style Mainframe
S/N Below 3-00001
21
19
18
17
7
29
22
26
10
1
2
10
20
14
15
28
28
6
6
8
9
5 3 4 16
1
25
25
12
12A
November, 2004
