BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
14-7-2

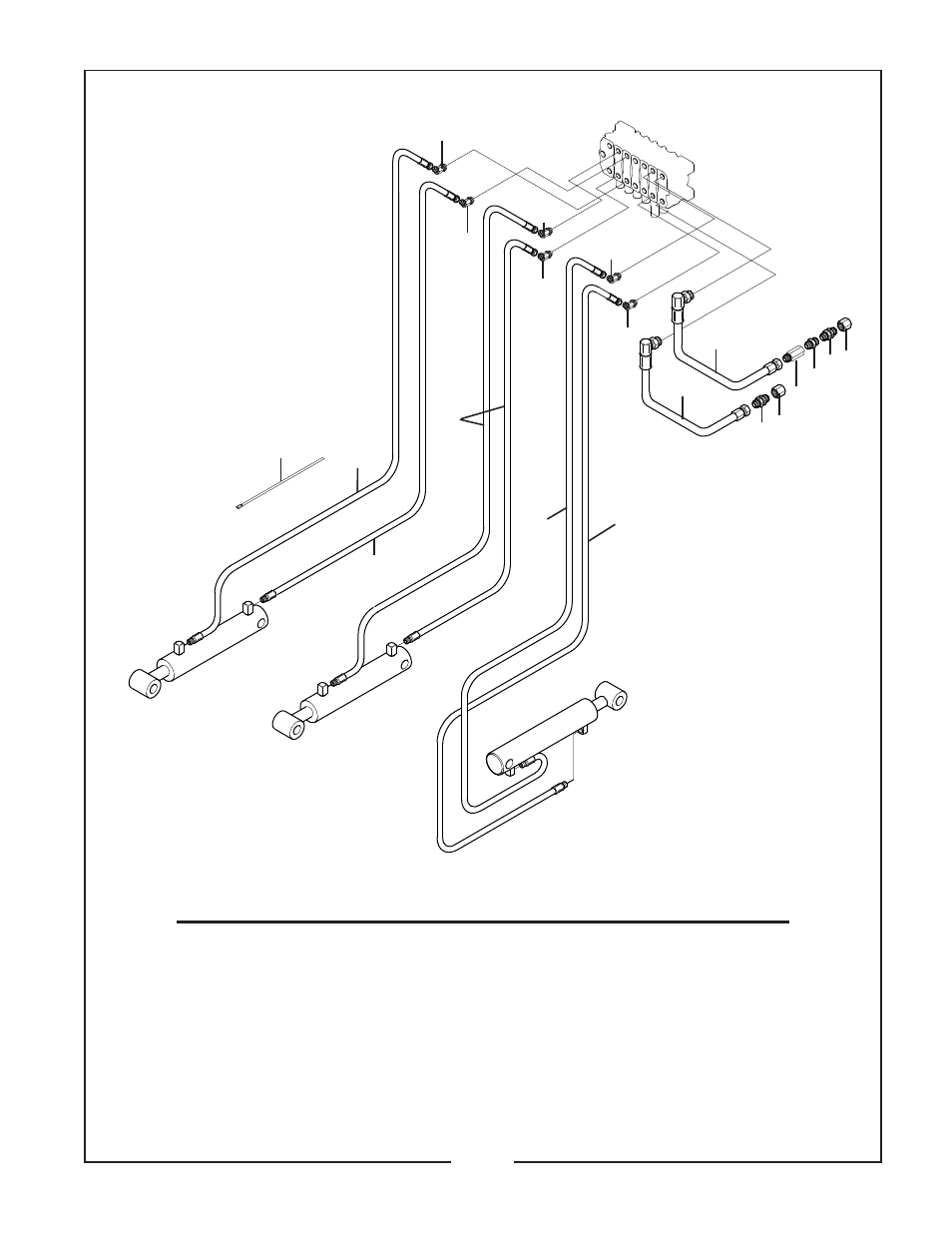

HYDRAULIC FITTINGS
FOR DIPPERSTICK,
BOOM & BUCKET
Model BH750
REF. PART
NO. NO.
QTY. DESCRIPTION
1 25H41174 6 45° Elbow 9/16” JICM x 9/16” ORBM
2 25H47052 2 Straight Bulkhead Union 3/4” JICM
3 25H47624 1 Straight Adapter 3/4” JICF Swivel x 3/4” ORBM
4 25H47571 3 Nylon Cable Tie
5 50033047 1 Check Valve
6 50033127 2 Hydraulic Hose .875 ORBM 90° Swivel x 3/4” JICF Swivel x 20”
7 50033211 1 Hydraulic Hose w/ Sleeve 9/16” JICF Swivel x 9/16” ORBM Swivel x 81”
8 50033212 2 Hydraulic Hose w/ Sleeve 9/16” JICF Swivel x 9/16” ORBM Swivel x 82.50”
9 50033213 1 Hydraulic Hose w/ Sleeve 9/16” JICF Swivel x 9/16” ORBM Swivel x 113”
10 50033214 1 Hydraulic Hose w/ Sleeve 9/16” JICF Swivel x 9/16” ORBM Swivel x 131”
11 50033244 1 Hydraulic Hose w/ Sleeve 9/16” JICF Swivel x 9/16” ORBM Swivel x 74”
12 50033705 2 3/4” – 16 JIC Cap, Shipping
Bucket
Dipperstick
Boom
1
1
1
1
1
6
2
12
12
5
3
2
6
1
10
4
9
8
7 11
SEPTEMBER, 2003
