BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
14-13-9

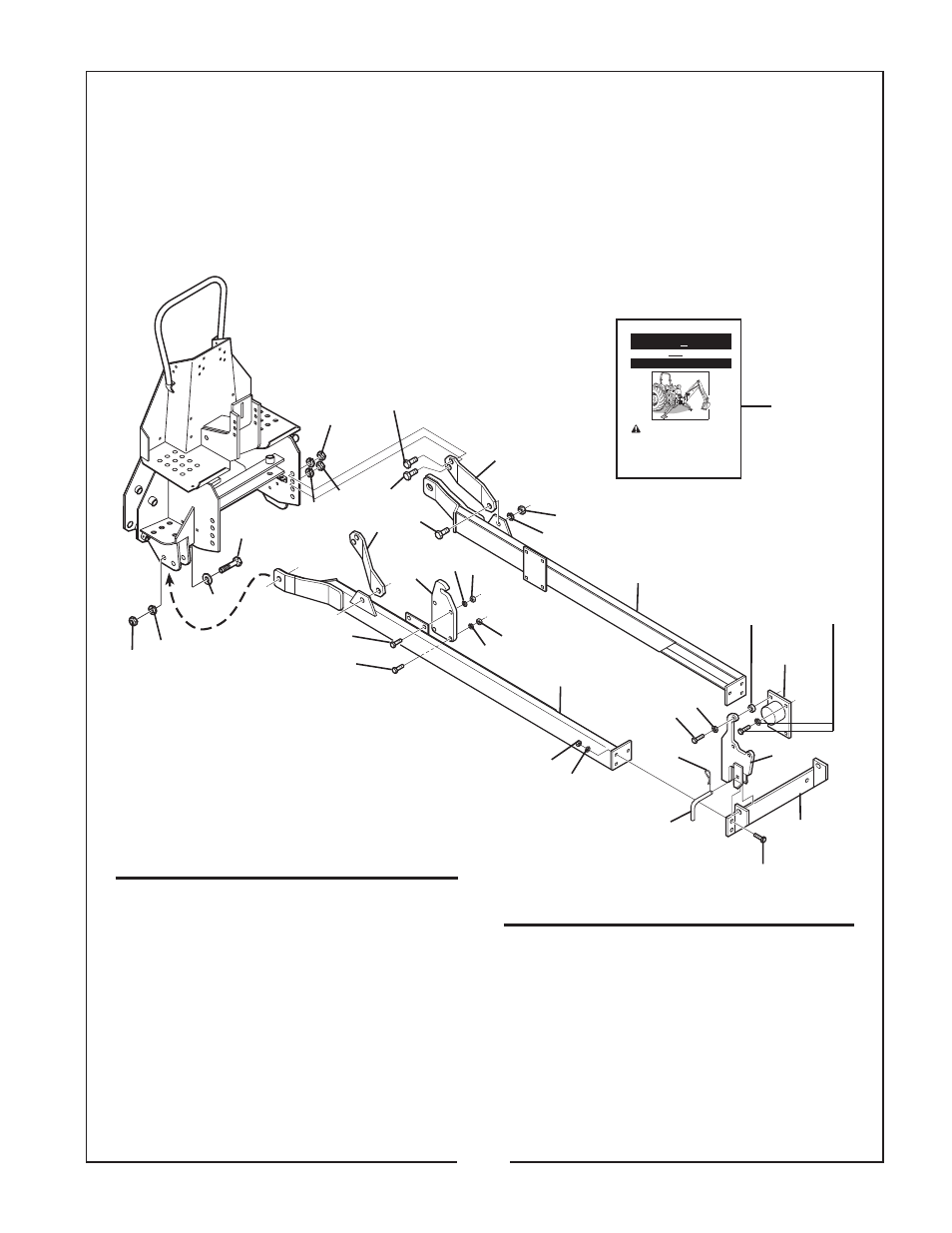

50036461 SUBFRAME KIT
for Bush Hog Backhoe Models BH650 and BH750
used on Tractor Models
Ford / New Holland 2120 &3415
Use with Bush Hog 2246 QT or 2346 QT Loader
Ford / New Holland 7309 Loader Mount
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50034903 1 Frame Rail Weld. R.H.
2 50034904 1 Frame Rail Weld L.H.
3 50035618 2 Hanger Weld.
4 59934862 1 Cross Support Weld.
5 50035620 2 Rear Hanger
6 50034865 1 Brace L.H.
7 50034870 2 Lock Pins
8 0461086 2 Pin #6
9 15032 10 Capscrew 5/8” x 2” NF Gr.5
10 ––––– 10 Lockwasher 5/8”
11 44743 10 Hex Nut 5/8” NF
12 44896 4 Capscrew 3/4” x 2” NF Gr.5
13 ––––– 4 Lockwasher 3/4”
14 44897 4 Hex Nut 3/4” NF
15 ––––– 2 Capscrew 7/8” x 2” Gr.5
16 ––––– 6 Lockwasher 7/8”
25 - 2346QT
Loader Only
24
23
22
21
20
27
15
28
19
18
17
17
16
16
29
14
13
12
11
10
9
11
10
9
8
7
6
5
4
3
2
1
Loader
Fasteners
Loader
Bracket
REF. PART
NO. NO.
QTY. DESCRIPTION
17 ––––– 4 Hex Nut 7/8”
18 50035322 1 Brace R.H.
19 44061 2 Hex Nut 7/8” NF
20 15046 2 Capscrew 7/8” x 2” NF Gr.5
21 20132 2 Capscrew 7/8” x 3” NF Gr.5
22 20571 2 Flatwasher 7/8”
23 44099 6 Lockwasher M16
24 44793 6 Capscrew M16 x 2 x 70 Gr.8.8
25 50035619 6 Spacer
26 50035621 1 Instruction Seet
27 44896 2 Capscrew 3/4” x 2”
28 –––– 2 Lockwasher 3/4”
29 44897 2 Hex Nut 3/4” NF
26
CAUT ON: B f re ea i g t ac or eat t p ng ne ock b a e e i ve h dr u ic
pr ss re and emo e key
CAUT ON: Do N t a ow by ta de s n w rk rea
NSTALLAT ON NOTES • em ve a mo n i g b a k ts om c a e Re e to ig 1 n Pa e 2 o ns re at l c mp n n s h ve b en c u ed) • l an h ea ed o es n t e t a t r r me w th a ap f he ro er ze a nt us a d / r d b is n he h e ds may a se b l s o m sa gn o no t g t n co ec y • h s m un ng i h s b th an a d a d me ic s en s n u e t a t e p o er a en rs e us d n t e c r e t
ca o s R f r o F g 2 on age as a a d t i e t y ng o ec f s e e s)
• e ve a l ou t ng a dwa e oo e u t l m un ng k t s omp e ly n t l d • f e t e mo n ng i ns l a on s om l te gh n a l a dw re o he p c i a on g v n in e bo t r ue ha t
n P ge 6
• f e t e i t h ur nd h n a er v ry 4 o rs r he i t d y o op r i n l mo n ng h r wa e ho d be he k d o p o er o q e s e i c t ns
P ge 1 1 01 04 7 2 03 n t u t n Sh et o 0 41 40
FOR T ACTOR MODE S OHN DEERE ® 70 7 0
FOR MOUNT NG Bush Hog 650 / 750 BackHoe Gre t B nd 21 5 / 2 75 Ba kHoe
BUSH HOG / GREAT BEND
SUBFRAME ATTACHING K T 50041534
U i g ush Hog M 46 L ader and / r Gr at B nd 21 5 Lo der
JUNE, 2008
