BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
14-9-3
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50033306 1 Upper Dust Cap, Valve
2 –––– 2 Screw, M5 x 14 - 8.8
3 –––– 1 Flange
4 –––– 1 Dust Cover
5 50033310 1 Spool
6 50033316 1 Working Section Assembly
7 –––– 1 Working Section
8 –––– 2 O-Ring Seal 14 x 2 NBR 70 SH
9 –––– 2 Seal 14 x 25.5 x 2.3
10 –––– 1 VR Kit
11 –––– 2 O-Ring Seal 26.7 x 1.78 NBR
12 –––– 3 O-Ring Seal 17.7 x 1.78 NBR
13 50033309 1 Spool Control Kit
14 –––– 1 End Cap Kit
15 –––– 1 Spool Control Kit
16 50033299 1 Seal Kit
–––– 1 O-Ring Seal 11.3 x 2.4 NBR
–––– 2 O-Ring Seal 14 x 2 NBR 70 SH
–––– 3 O-Ring Seal 17.17 x 1.78 NBR
–––– 2 O-Ring Seal 26.7 x 1.78 NBR
–––– 1 Dust Cover 14 x 3.5

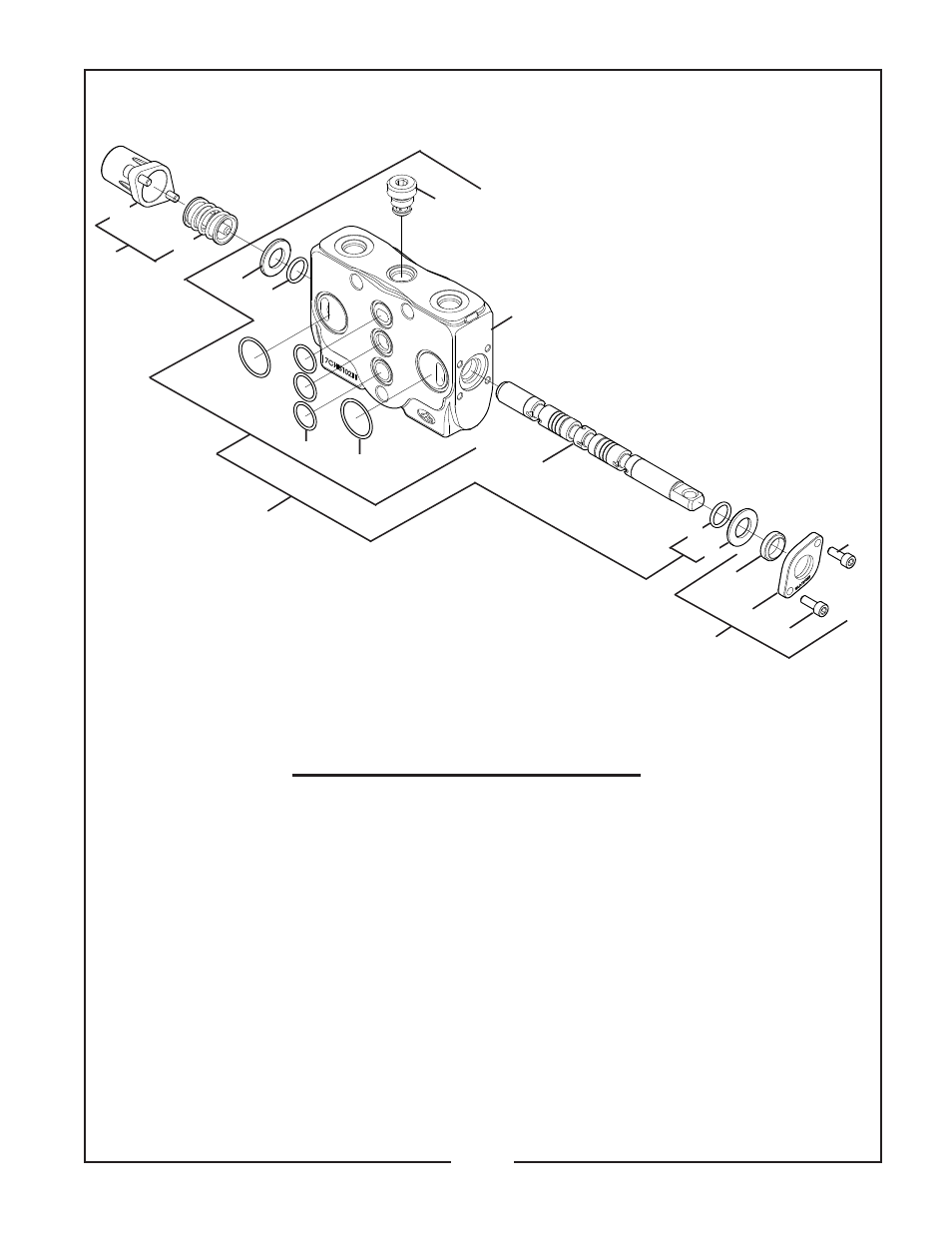

50033293 BUCKET SECTION
For Control Valve 50032997 (BH650 & BH750)
and Control Valve 50102278 (BH850& BH950)
3
2
2
13
6
5
1
4
10
7
12
11
9
8
14
15
9
8
SEPTEMBER, 2003
