BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
14-13-4

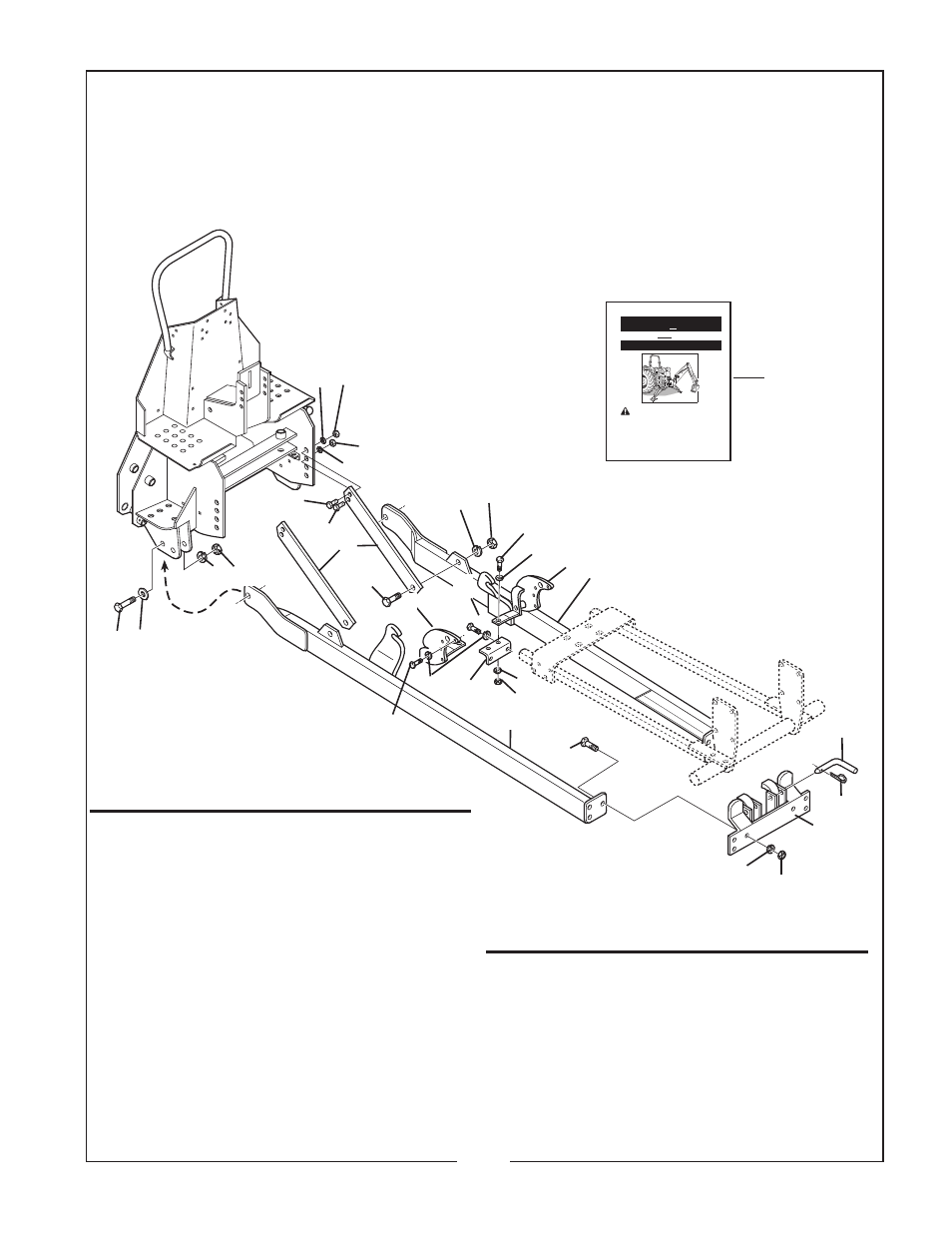

50036455 SUBFRAME KIT
for Bush Hog Backhoe Models BH650 and BH750
used on Tractor Models
Ford/NewHolland 1530, 1630, 1725, 1925, TC25, TC250, TC29, TC290, TC33, TC330
Case/IH D25, DX25, D29, DX29, D33, DX33
With Bush Hog 2246QT Loader or Great Bend 244 Loader
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
17
11
20 24
30
31
23
29
20 21
25
27
18
26
22
19 28
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50035372 1 Front Mount Weldment
2 50035365 1 Rail Weldment R.H.
3 50035366 1 Rail Weldment L.H.
4 50035379 1 Rear Axle Weldment R.H.
5 50035380 1 Rear Axle Weldment L.H.
6 50035355 1 Angle
7 50035356 2 Brace
8 50034870 2 Lock Pin
9 0461086 2 Hair Pin
10 15032 6 Capscrew 5/8” x 2” - NF Gr.5
11 ––––––– 6 Lockwasher 5/8”
12 92500 2 Hex Nut 5/8” - NF
13 20260 2 Capscrew 7/8” x 2” Gr.5
14 ––––––– 2 Lockwasher 7/8”
15 ––––––– 2 Hex Nut 7/8”
16 50035520 1 Instruction Sheet
17 44394 8 Capscrew m12 x 1.75 x 30 Gr 8.8
18 15806 10 Lockwasher 1/2”
19 20132 2 Capscrew 7/8” x 3” Gr.5
20 ––––––– 4 Lockwasher 7/8”
REF. PART
NO. NO.
QTY. DESCRIPTION
21 ––––––– 2 Hex Nut 7/8”
22 44895 2 Capscrew m16 x 2 x 30 Gr. 8.8
23 15046 2 Capscrew 7/8” x 2 - NF Gr.5
24 44061 2 Hex Nut 7/8” NF
25 ––––––– 2 Capscrew 1/2” x 1-1/4” Gr.5
26 ––––––– 2 Hex Nut 1/2”
27 ––––––– 2 Flatwasher 1/2”
28 ––––––– 2 Flatwasher 7/8”
29 44896 2 Capscrew 3/4” x 2”
30 –––– 2 Lockwasher 3/4”
31 44897 2 Hex Nut 3/4” NF
16
