BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
14-13-63
REF. PART
NO. NO. QTY. DESCRIPTION
1 50005860 2 Cotter, Hair Pin
2 —— 2 Lockwasher 7/8” CP
3 44200 4 Lockwasher M12 ZP
4 44333 4 Capscrew M12 x 1.25 x 55 G8.8 ZP
5 50020926 8 Flatwasher 1/2” SAE HRD ZP
6 —— 2 Hex Nut 7/8” CP
7 —— 2 Capscrew 7/8” x 2” G5 ZP (*Used on
BH750/GB 2175)
8 50034870 2 Lock Pin
9 0461086 2 Jack Clip Pin
10 50032825 2 3 Point Lower Pin
11 50061818 1 Instruction Sheet
12 50053654 1 Subframe Weldment
13 50061814 1 Center Support Weldment
14 50034919 2 Brace
REF. PART
NO. NO. QTY. DESCRIPTION
15 —— 4 Hex Nut 1/2”
16 —— 2 Capscrew 7/8” x 2-1/2” G5 ZP
17 —— 2 Lockwasher 7/8” CP
18 —— 2 Hex Nut 7/8” CP
19 44896 2 Capscrew 3/4” x 2” NF G5 ZP
(*Used on BH 665H/GB 652)
20 44897 2 Hex Nut 3/4” NF
21 —— 2 Lockwasher 3/4”
22 50061815 1 L.H. Front Hanger
23 50061816 1 R.H. Front Hanger
24 44212 6 Capscrew M16 x 1.6 x 60 G8.8
25 —— 6 Lockwasher 5/8”
26 —— 4 Capscrew 1/2” x 2-1/4”
27 —— 4 Flatwasher 1/2”
28 —— 4 Lockwasher 1/2”
10

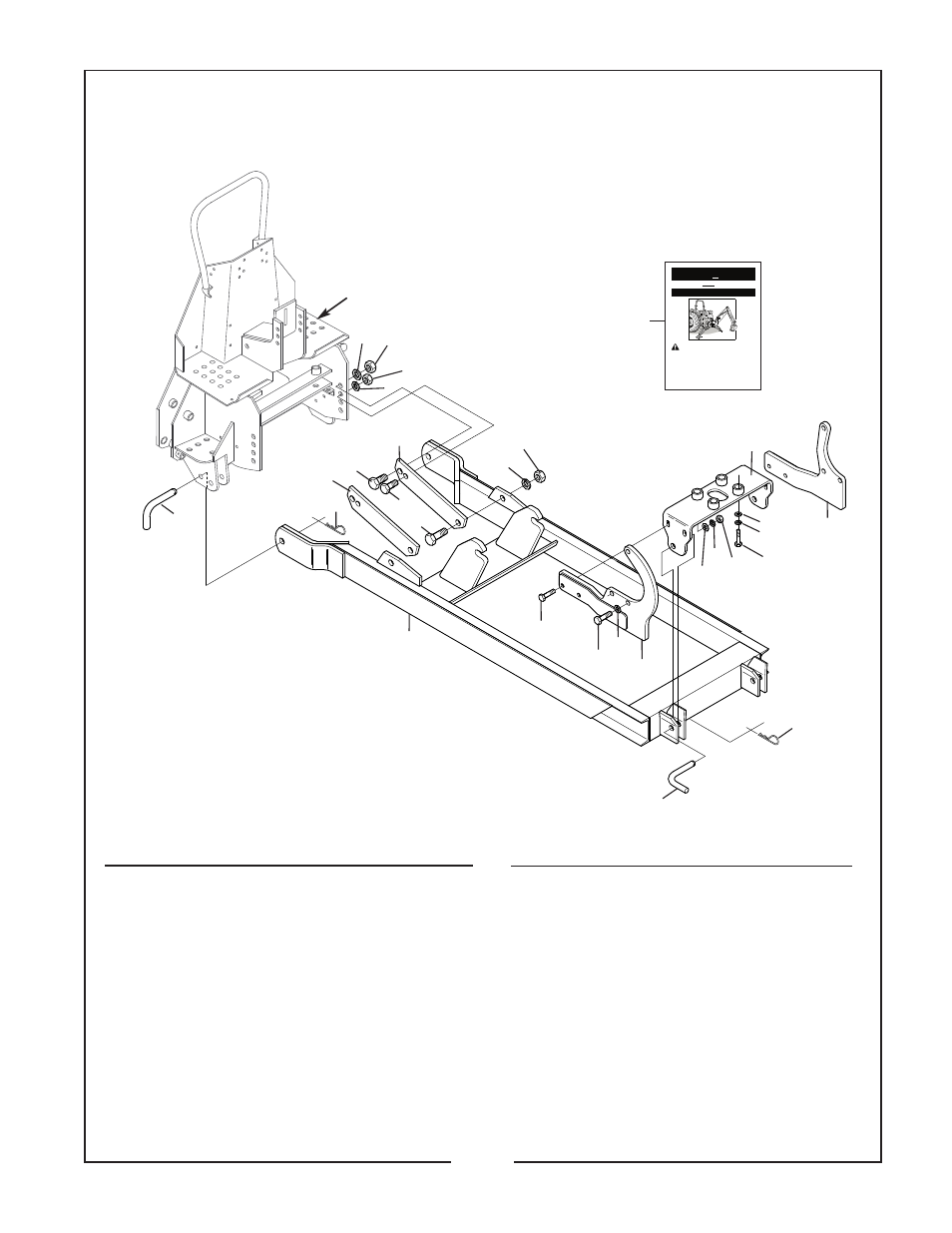

BH750
BACKHOE
MAINFRAME
50061813 SUBFRAME KIT
BUSH HOG BH750 BACKHOE
For Kubota L4400 Tractors
with BH M246 / 2045, GB 2130 / 2045
and Kubota LA703 Loader Mounts
12
26
24
25
23
27
28 15
22
17
8
