Assign IP Addresses
8
MM701G and MM702G User Manual
Use the following steps to set up a management PC to be on the same subnet with the modem.
(The example shows instructions for a PC that is running Microsoft Windows 98 SE;
instructions for other operating systems may differ slightly.)
1
From the Windows desktop, click
Start
,
Settings
,
Control Panel
to open the
Control Panel
dialog.
2

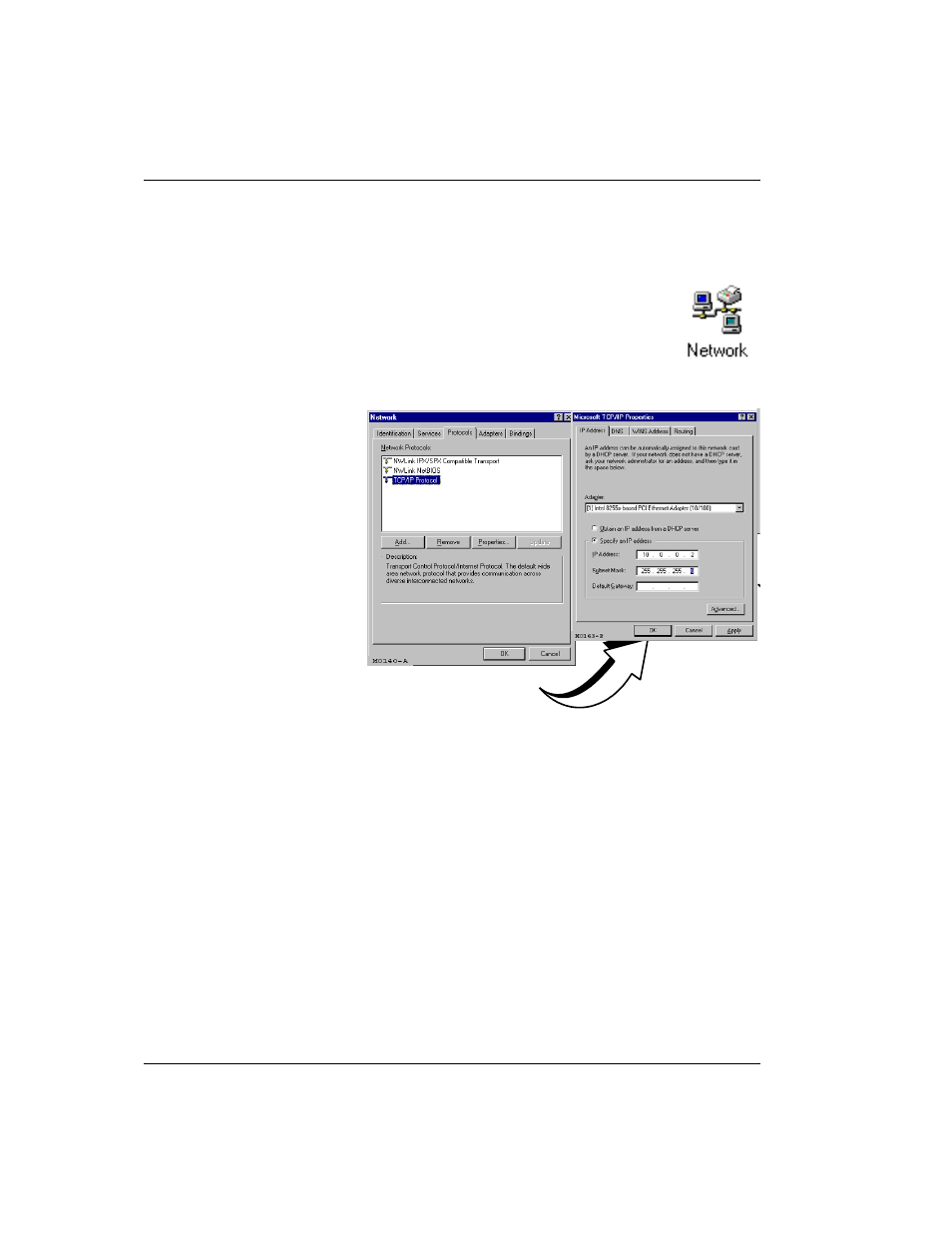

From the
Control Panel
dialog, double-click the
Network
icon (shown to the
right). The
Network
dialog is displayed.
3
From the
Configuration
tab, double-click
TCP/IP
to display the
TCP/IP Properties
dialog.
4
The modem can be set up to serve IP addresses to devices on the LAN (DHCP server
feature). Do one of the following:
•
If DHCP server has not been enabled on the modem (default setting), select
Specify an
IP address
.
•
If DHCP server has been enabled on the modem, select
Obtain an IP address
automatically
and go to
5
Enter an
IP Address
and
Subnet Mask
that places the management PC on the same subnet as
the modem.
Use an IP address in the range of 10.0.0.2 to 10.0.0.254.
6
Click
OK
to close the
TCP/IP Properties
dialog.
7
Click
OK
to close the
Network
dialog.
8
Click
OK
to restart the computer.
TCP/IP Network Configuration
for an Ethernet NIC
