8200 Series Converged Network Adapter and 3200 Series Intelligent Ethernet Adapter
Page
53
Figure 29: Selecting FCoE Function Type to Change
4. Move your cursor to the MinBW% column to adjust the minimum bandwidth (Figure 30) on each
partition (between 0-100%).

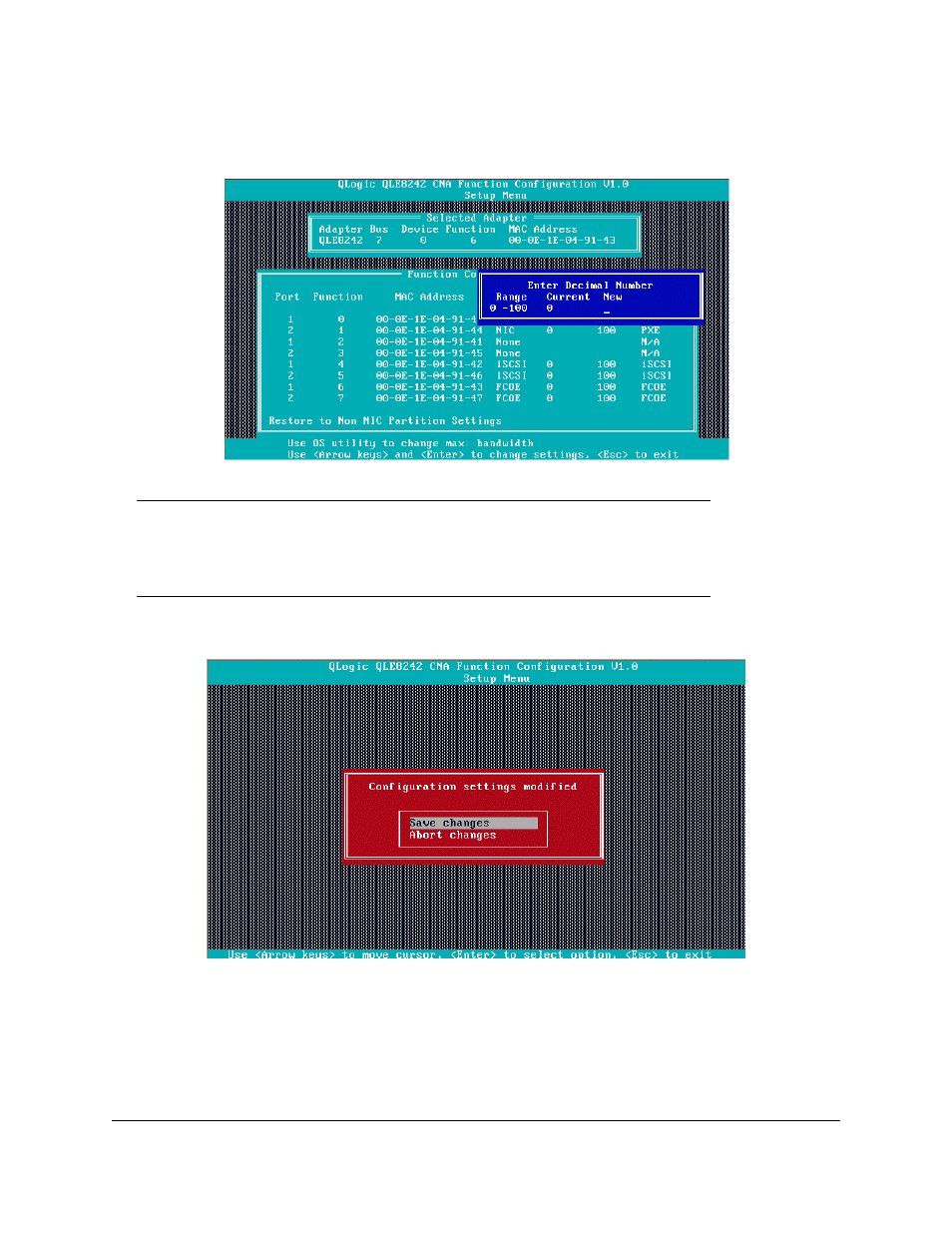

Figure 30: Adjusting the Minimum Bandwidth
5. Save your changes (Figure 31).
Figure 31: Saving Configuration Changes
6. Reboot the host server after completing NPAR configuration.
Note: Do not set any bandwidth percentages for the FCoE function. The adapter uses the
enhanced transmission selection (ETS) settings for determining FCoE bandwidth. The
NIC bandwidth settings configured in the Figure 30 are not a percentage of the line
rate (10Gb): they are a percentage of the NIC bandwidth allocated to this NIC port
through ETS on the switch.
