7.

If

removing

a

processor

air

duct

as

part

of

another

procedure,

continue

with

that

procedure.

Installing

the

processor

air

duct

To

install

the

processor

air

duct,

complete

the

following

steps:

CAUTION:

Do

not

operate

the

Secure

Managed

Client

-

Storage

Array

without

the

presence

of

a

processor

air

duct.

Attention:

Before

performing

any

maintenance

on

the

system,

back

up

the

data.

Follow

the

instructions

in

the

Secure

Managed

Client

-

Storage

Array

User

Guide

for

shutting

down

the

system.:

1.

Observe

all

safety

and

ESD

precautions

in

the

Safety

and

Warranty

Guide.

2.

If

enclosure

cover

is

not

already

removed,

remove

it.

For

instructions.

3.

Install

the

processor

air

duct

by

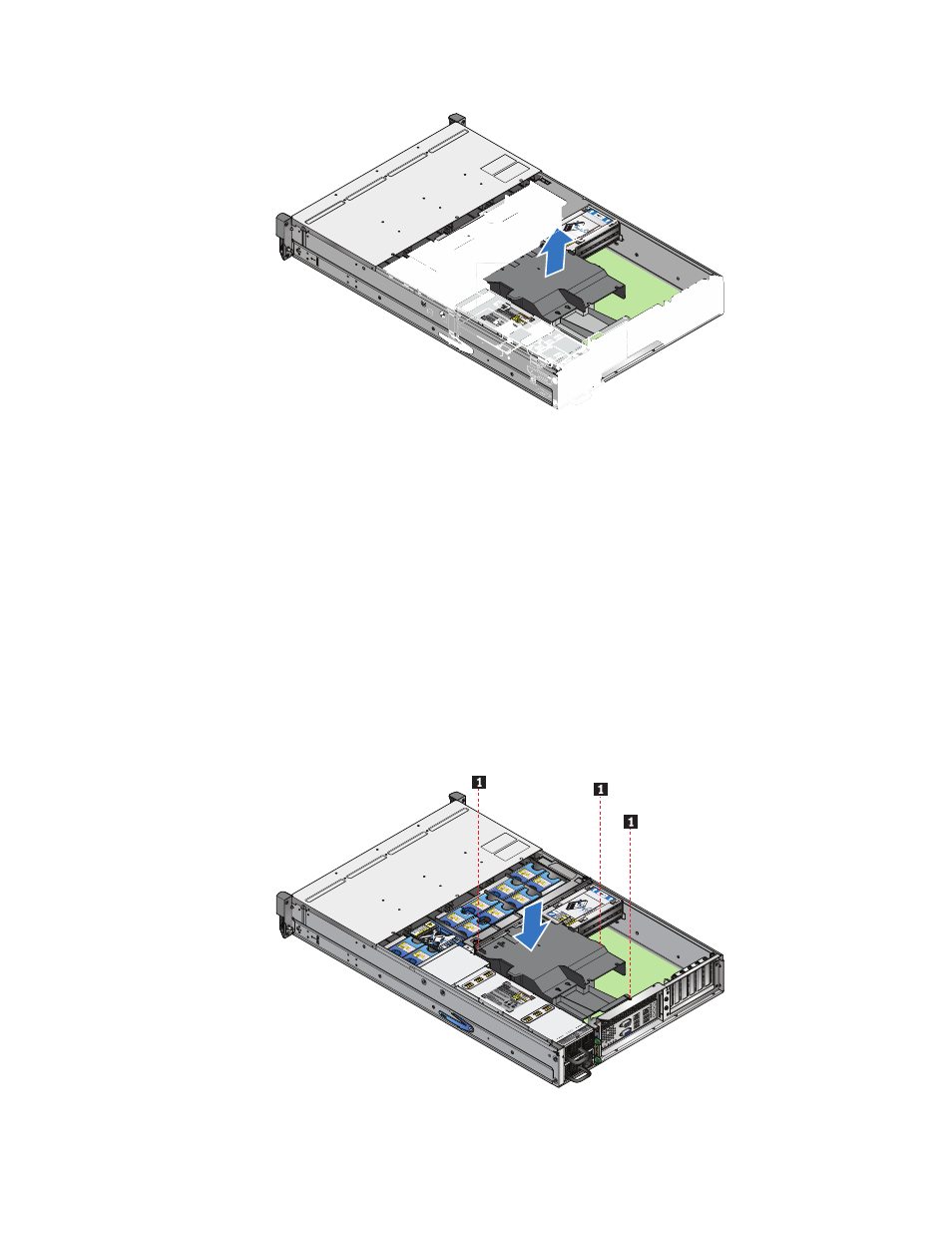

aligning

pins

with

slots

(see

1

in

the

following

figure).

82

Hardware

Maintenance

Manual
