Loosen

the

four

captive

screws

on

the

corners

of

the

heatsink.

Twist

the

heatsink

slightly

to

break

the

seal

between

the

heatsink

and

the

processor.

9.

Lift

the

heatsink

from

the

processor.

If

it

does

not

pull

up

easily,

twist

the

heatsink

again.

Do

not

force

the

heatsink

from

the

processor.

Doing

so

could

damage

the

processor.

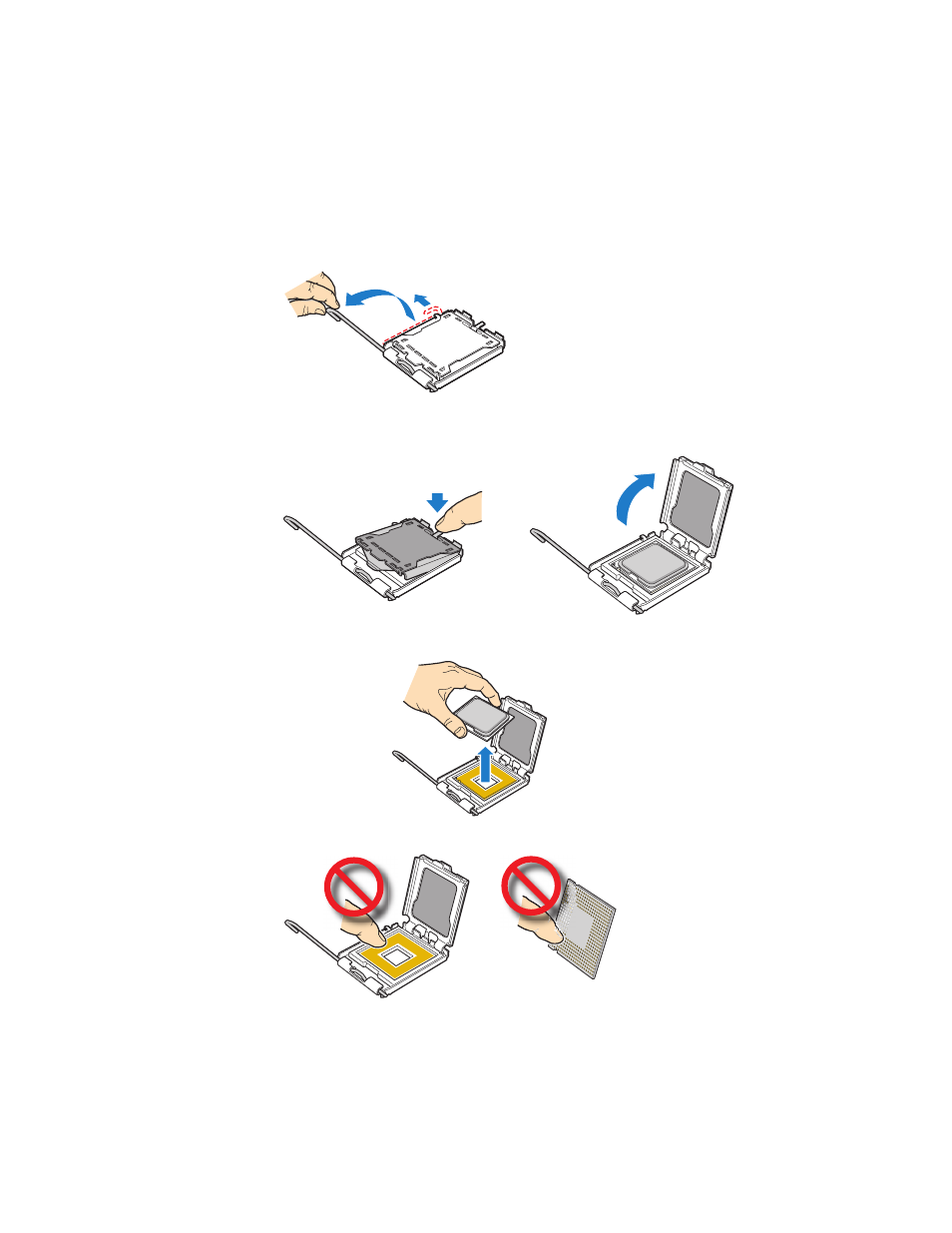

10.

Push

down

on

the

lever

attached

to

the

processor

socket.

While

holding

the

lever

down,

pull

it

towards

the

center

of

the

board

to

disengage

the

lever

from

the

hook.

Fully

open

the

lever.

11.

Push

down

on

the

rear

tab

of

the

load

plate

to

swing

the

front

of

the

load

plate

up

slightly.

Fully

open

the

load

plate.

12.

Lift

the

processor

from

the

socket.

13.

Store

the

processor

in

appropriate

packaging

materials.

14.

Install

the

protective

cover

over

the

load

plate

if

a

replacement

processor

will

not

be

installed.

Install

the

second

processor

air

dam

if

permanently

removing

the

second

processor.
