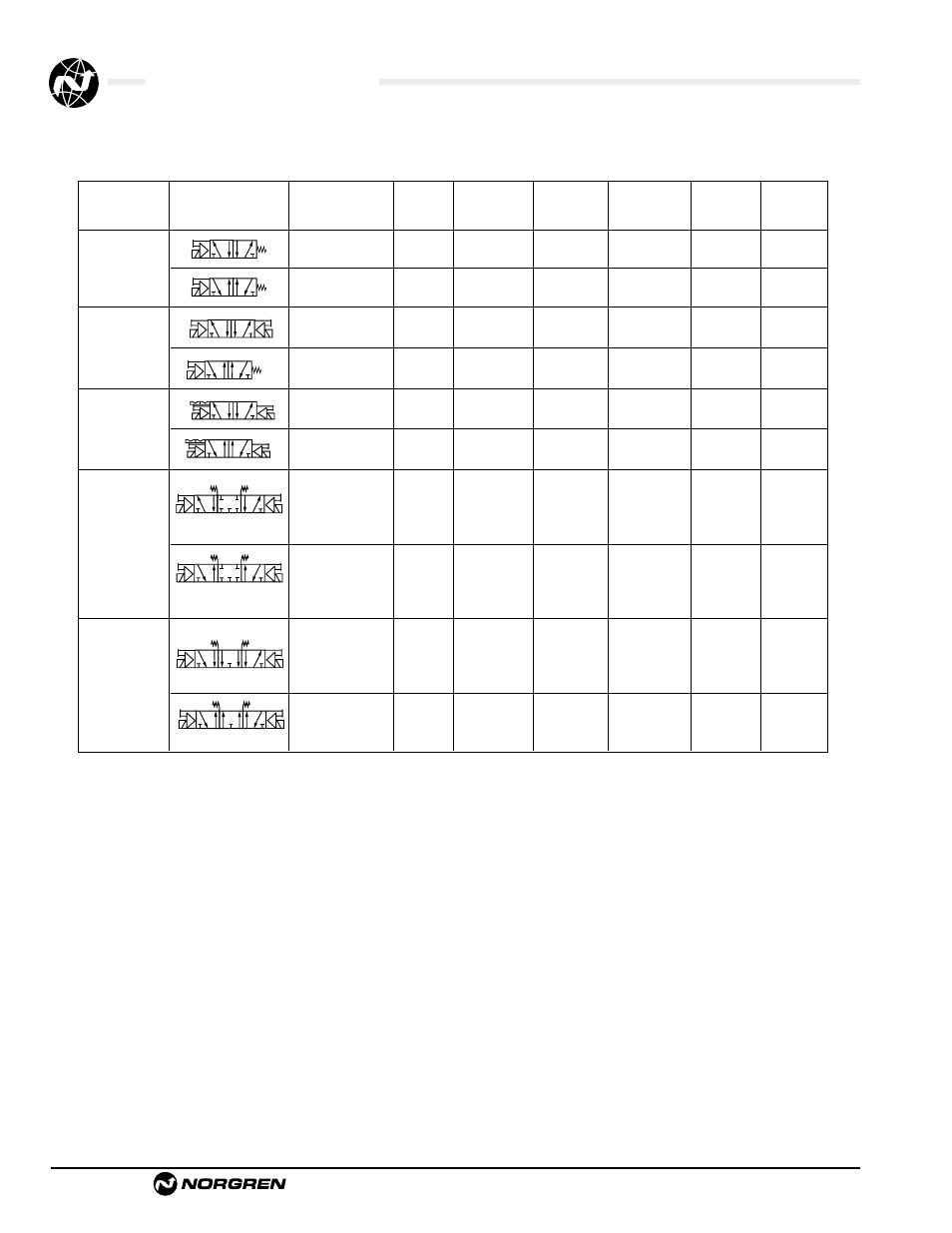

Nugget 500 Series Valves
Inline Valves
Pilot
Port Pressure Weight Repair
Description Symbol Type Size Body Operator psig (bar) lbs. (kg) Kit
5-port/2-position
1/2" PTF MN01CGA 35-AJJA
40 - 150 1.42 54677-50
Single Solenoid single pressure (2.8 - 10.3) (.65)
Spring Return* 5-port/2-position
1/2" PTF MN02CGA 35-AKJA
40 - 150 1.42 54677-51
dual pressure (2.8 - 10.3) (.65)
5-port/2-position
1/2" PTF MN01CGA 25-AJJA
20 - 150 1.71 54677-50
Double single pressure (1.4 - 10.3) (.78)
Solenoid 5-port/2-position
1/2" PTF MN02CGA 25-AJJA
20 - 150 1.71 54677-51
dual pressure (1.4 - 10.3) (.78)
5-port/2 position
1/2" PTF MN01CGA 25-BJJA
30 - 150 1.99 54677-50
Double Solenoid single pressure (2.1 - 10.3) (.90)
Detent 5-port/2 position
1/2" PTF MN02CGA 25-BJJA
30 - 150 1.99 54677-51
dual pressure (2.1 - 10.3) (.90) 54677-51
5-port/3-position
single pressure,
1/2" PTF MN03CGA 25-FJJA
40 - 150 1.99 54677-52
all ports blocked in (2.8 - 10.3) (.90)
Double center position
Solenoid 5-port/3-position
1/2" PTF MN04CGA 25-FJJA
40 - 150 1.99 54677-53
dual pressure, (2.8 - 10.3) (.90)
all ports blocked in
center position
5-port/3-position
1/2" PTF MN05CGA 25-FJJA
20 - 150 1.99 54677-54
Double Solenoid single pressure, (1.4 - 10.3) (.90)
Spring Centered cylinder open to
Cylinder Open exhaust
to Exhaust
5-port/3-position dual
1/2" PTF MN06CGA 25-FJJA
20 - 150 1.99 54677-55
pressure cylinder (1.4 - 10.3) (.90)
open to exhaust
4 2
3 1 5
4 2
3 1 5
2 4
3 1 5
2 4
3 1 5
2 4
3 1 5
2 4
3 1 5
2 4
1 5 3
2 4
1 5 3
2 4
1 5 3
2 4
1 5 3
* Standard valves are equipped with PTF threads, solenoid operators with non-locking overrides, internal pilot, 120V/60 Hz-110V/50 Hz coils and cable
grip connectors. Optional solenoid operators, coil voltages and electrical connectors can be ordered using the information on p. VAL-11-22.
Note: For ISO-G threads, insert “G” in the 7th position.
