5/2 and 5/2 directional control
spool valves
VAL-11-6 Littleton, CO USA Phone: 303-794-2611 www.norgren.com

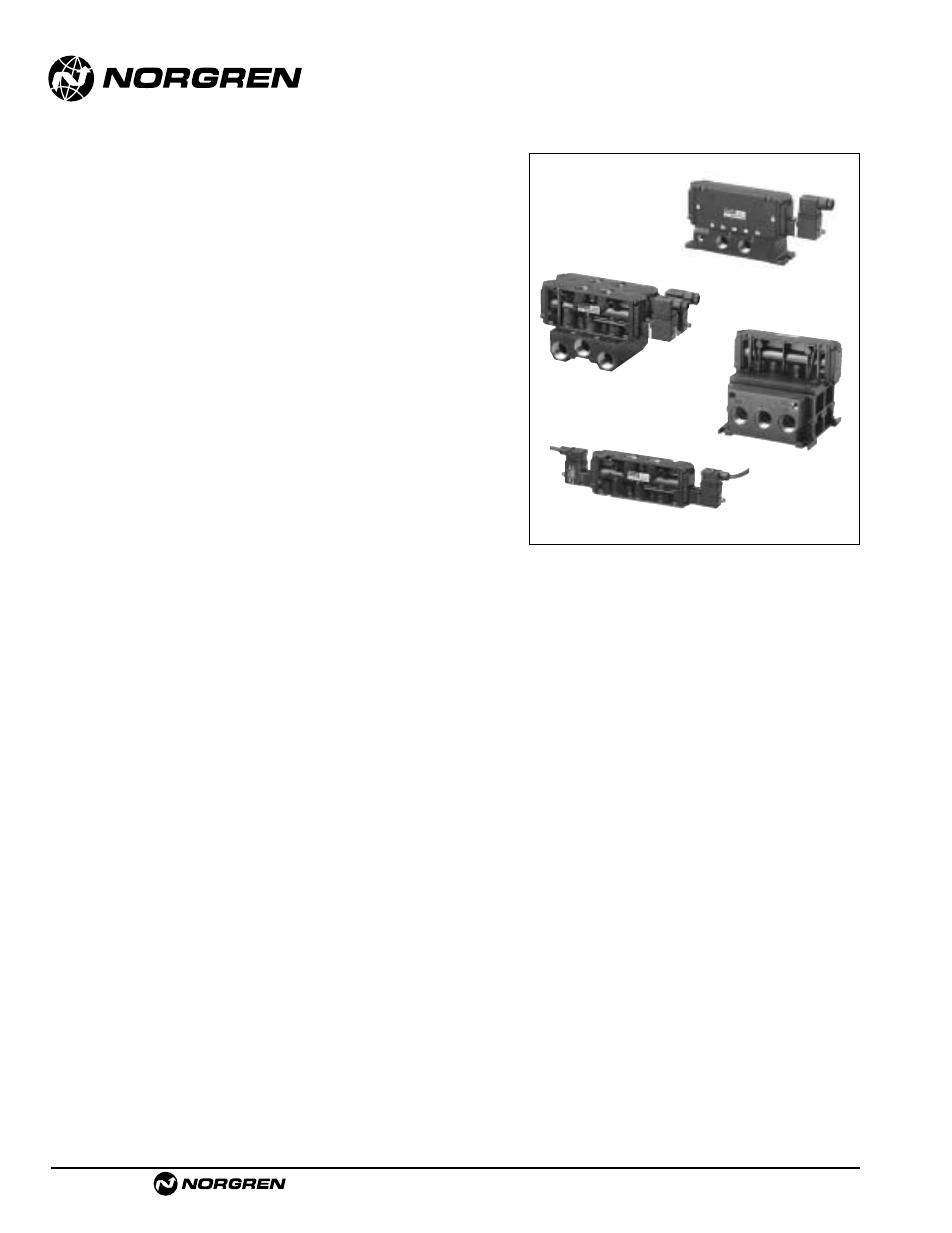

Nugget 500 Series Valves
● Long lasting spool design
● High flow compact valves
● Four mounting styles: inline, fixed length
manifolds, single subbase, or subbase valves
attached to manifolding subbases
● Wide range of operators available
● Two functional types: available in 5/2, and 5/3
configurations
Technical Data
Medium:
Filtered, lubricated or non-lubricated, compressed air or vacuum
Operation:
Spool valve air pilot actuated
Mounting:
Inline, fixed length manifold, single subbase, and manifolding subbase
Port Sizes:
3/8", 1/2", or 3/4", ISO G or PTF
Operating Pressure:
Maximum 150 psig (10.3 bar).
Flow Characteristics:
Port Cv l/min scfm
3/8" Inline 4.0 4250 150
1/2" Inline 5.0 5150 180
3/4" Inline 5.6 6000 210
1/2" Subbase 4.7 5300 190
Operating Temperature
Solenoid Operated Valves: -20° to 120°F (-29° to 50°C)
Air Operated Valves: -20° to 160°F (-29° to 71°C)
*Consult our Technical Service for use below 36°F (2°C)
Materials:
Valve Body: Aluminum
Spool: Aluminum
Elastomers: Nitrile
Solenoid Operator Base: PPS plastic
Operator Housing: Zinc
Speed Control Materials
Body: Zinc
Adjusting Screw: Brass
Elastomers: Nitrile
Subbase Materials
Fixed Length Manifolds: Aluminum
Single and Manifolding Subbase: Aluminum
End Plate: Zinc
Elastomers: Nitrile
Order Information
To order standard Nugget 500 air pilot solenoid
operated valves, quote model number from table,
e.g. order
MN01CGA-35-AJJA for a 5-port/2-position, single
solenoid, spring return model.
