Nugget 500 Series Valves

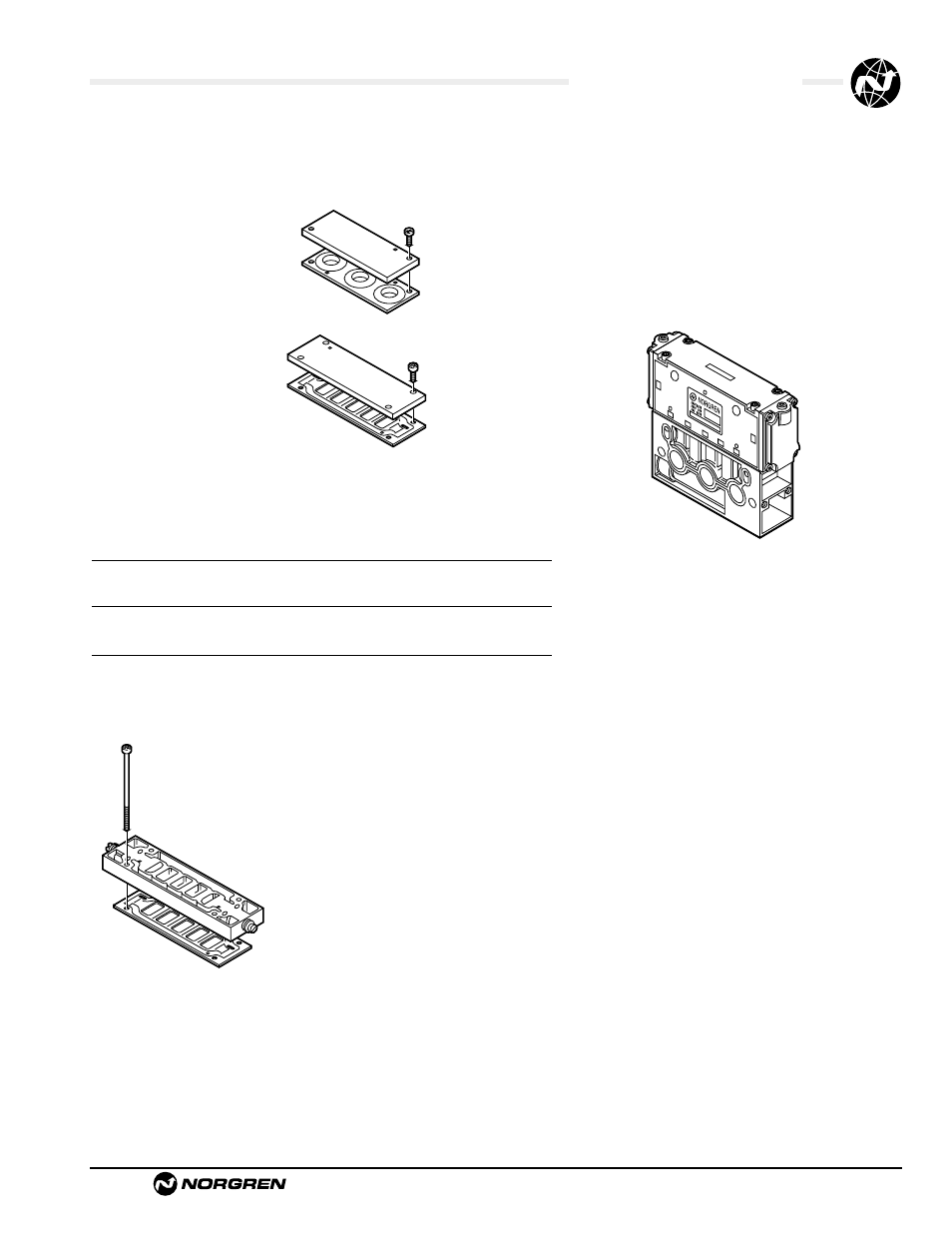

Blanking Plate Kit
The blanking plate kit consists of a blanking plate, seal, and attaching hardware.
The plate is installed on a subbase in place of a valve, allowing an additional valve
to be added at a later date.
For Fixed Length
Manifolds: 54689-50
For Single and
Manifolding Subbases: 54689-51
Quietaire® Mufflers and Speed Control Mufflers
Mufflers should be installed in the exhaust ports of Nugget 500 Valves to reduce
work area noise and help prevent contaminants from entering the valve. Speed
control mufflers also allow metering of the exhaust air flow to restrict the speed of
air cylinders and air motors. Do not use speed control mufflers in manifold exhaust
ports.
Port Sintered Speed
Size Type Control Shell
NPT Muffler Muffler Type
3/8 MS003A MM003A MB003A
1/2 MS004A MM004A MB004A
3/4 MS006A MM006A MB006A
See Norgren publication APC-101 for complete muffler information.
Intermediate Supply/Exhaust Block
The intermediate supply/exhaust block consists of a
supply/exhaust block, a manifolding subbase valve body
without spool, interface seals and hardware needed to
connect the subbase to the adjacent subbase and six
isolating plugs. The supply/exhaust block provides a
method of connecting an additional air supply to the valve
manifold. This helps prevent starvation of supply air to the
valves when a number of valves are operated
simultaneously. The block also allows use of three or more
supply pressures in the same manifold, and may also be
used to exhaust individual valves.
Supply/Exhaust Block
1/2" PTF .......................................................54693-50
1/2" ISO G ....................................................54693-51
Dual Sandwich Speed Control Kit
The speed control kit, consisting of a speed control block, mounting
screws, and gasket, is installed between a subbase valve and a subbase.
Needle valves, located at both ends of the speed control, restrict exhaust
flow from the valve to control the speed of an air cylinder or motor. Order
the speed control kit below.
Speed Control Kit ..............................13336-60
