Norgren 500 Series Nugget - Manual (Page 15)

Littleton, CO USA Phone: 303-794-2611 www.norgren.com VAL-11-15
Nugget 500 Series Valves
Valve A B C D E F G H J K L N O P R S T
Solenoid Pilot Operator — 5-Port/2-Position Nondetent
Single Solenoid*
0.63 1.94 1.48 1.46 0.48 9.46 1.80 4.15 3.53 1.38 0.63 6.50 6.05 1.48 0.25 2.71 0.63
(16) (49) (38) (37) (12) (240) (46) (105) (90) (35) (16) (1.65) (154) (38) (6) (69) (16)
Double Solenoid 0.63 1.94 1.48 1.46 0.48 10.40 1.80 4.15 4.00 1.38 0.63 6.50 6.05 1.48 0.25 2.71 0.63
(16) (49) (38) (37) (12) (264) (46) (105) (102) (35) (16) (1.65) (154) (38) (6) (69) (16)
Solenoid Pilot Operator — 5-Port/2-Position Detent or 5-Port/3-Position Spring Centered
Double Solenoid
0.63 1.94 1.48 1.46 0.48 12.36 1.80 4.15 3.53 1.38 0.63 6.50 6.05 1.48 0.25 2.71 0.63
(16) (49) (38) (37) (12) (314) (46) (105) (90) (35) (16) (1.65) (154) (38) (6) (69) (16)
Air Pilot Operator — 5-Port/2-Position Nondetent
Single Air*
0.63 1.94 1.48 1.46 0.48 6.56 1.80 3.89 — 1.38 0.63 6.50 6.05 1.48 0.25 — 0.63
(16) (49) (38) (37) (12) (167) (46) (99) — (35) (16) (1.65) (154) (38) (6) — (16)
Double Air 0.63 1.94 1.48 1.46 0.48 6.56 1.80 3.89 — 1.38 0.63 6.50 6.05 1.48 0.25 — 0.63
(16) (49) (38) (37) (12) (167) (46) (99) — (35) (16) (1.65) (154) (38) (6) — (16)
Air Pilot Operator — 5-Port/2-Position Detent or 5-Port/3-Position Spring Centered
Double Air
0.63 1.94 1.48 1.46 0.48 7.50 1.80 3.89 — 1.38 0.63 6.50 6.05 1.48 0.25 — 0.63
(16) (49) (38) (37) (12) (191) (46) (99) — (35) (16) (1.65) (154) (38) (6) — (16)
*With air-assisted spring return, spring return or integral air return.
Single Subbase Ports
A T
D
G
R K
L
H
F
P P
J
O
N
B E C
A T
D
G
R K
L
H
S
F
P P
J
O
N
B E C
A T
D
G
L
R K
H
F
P P
O
N
B E C
Valve Body
Locating Pin
3/8" External
Pilot Port
3/8" or 1/2"
Exhaust Ports
1/8" External
Pilot Port
Port
Numbers
3/8" or 1/2"
Cylinder Ports
4.250 (108)
.280 (7)
1.120 (28)
Note: 4 mm hex key drive required for mounting screws

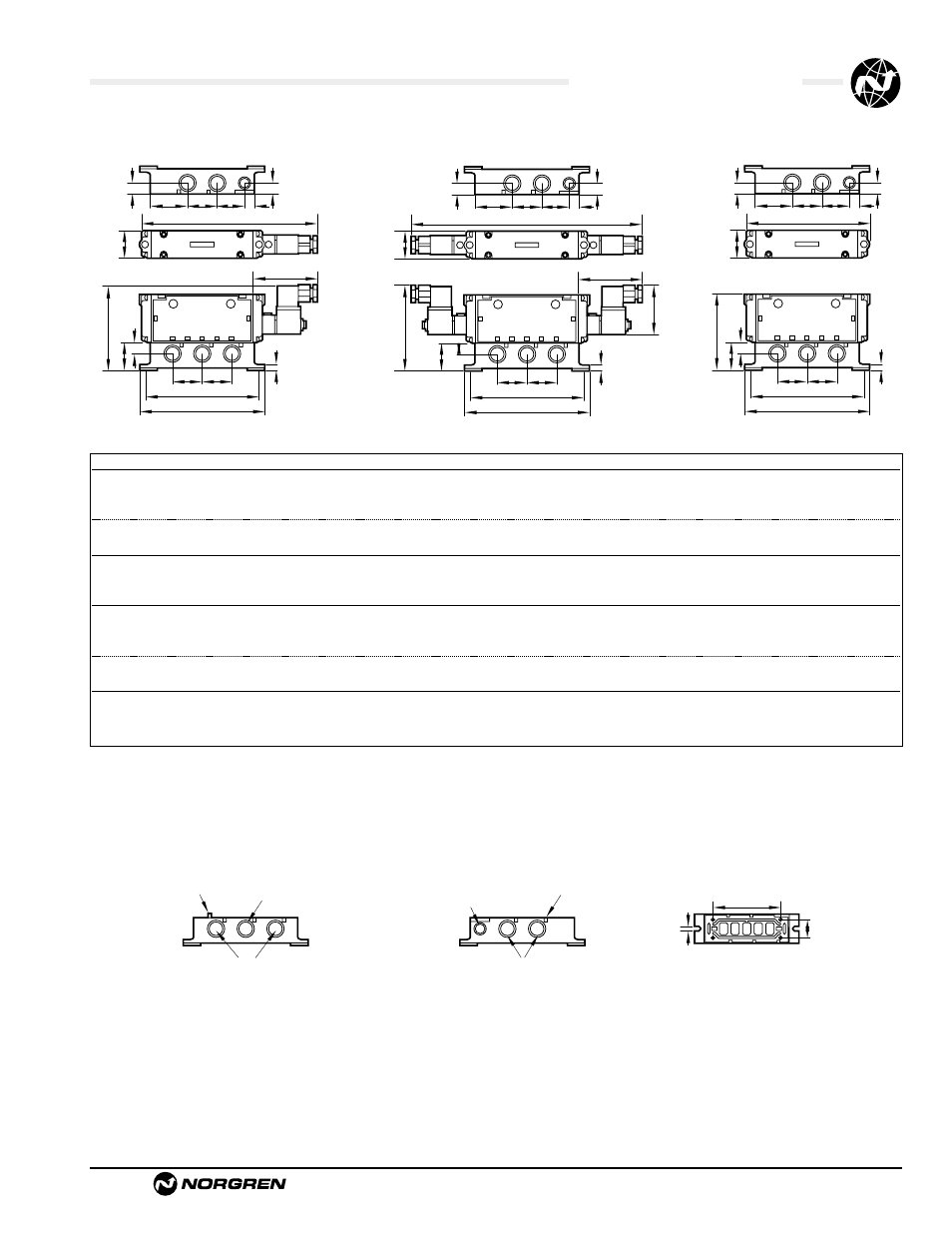

Subbase Valve on Single Subbase Dimensions
All Dimensions in Inches (mm)
