Norgren 500 Series Nugget - Manual (Page 11)

Littleton, CO USA Phone: 303-794-2611 www.norgren.com VAL-11-11

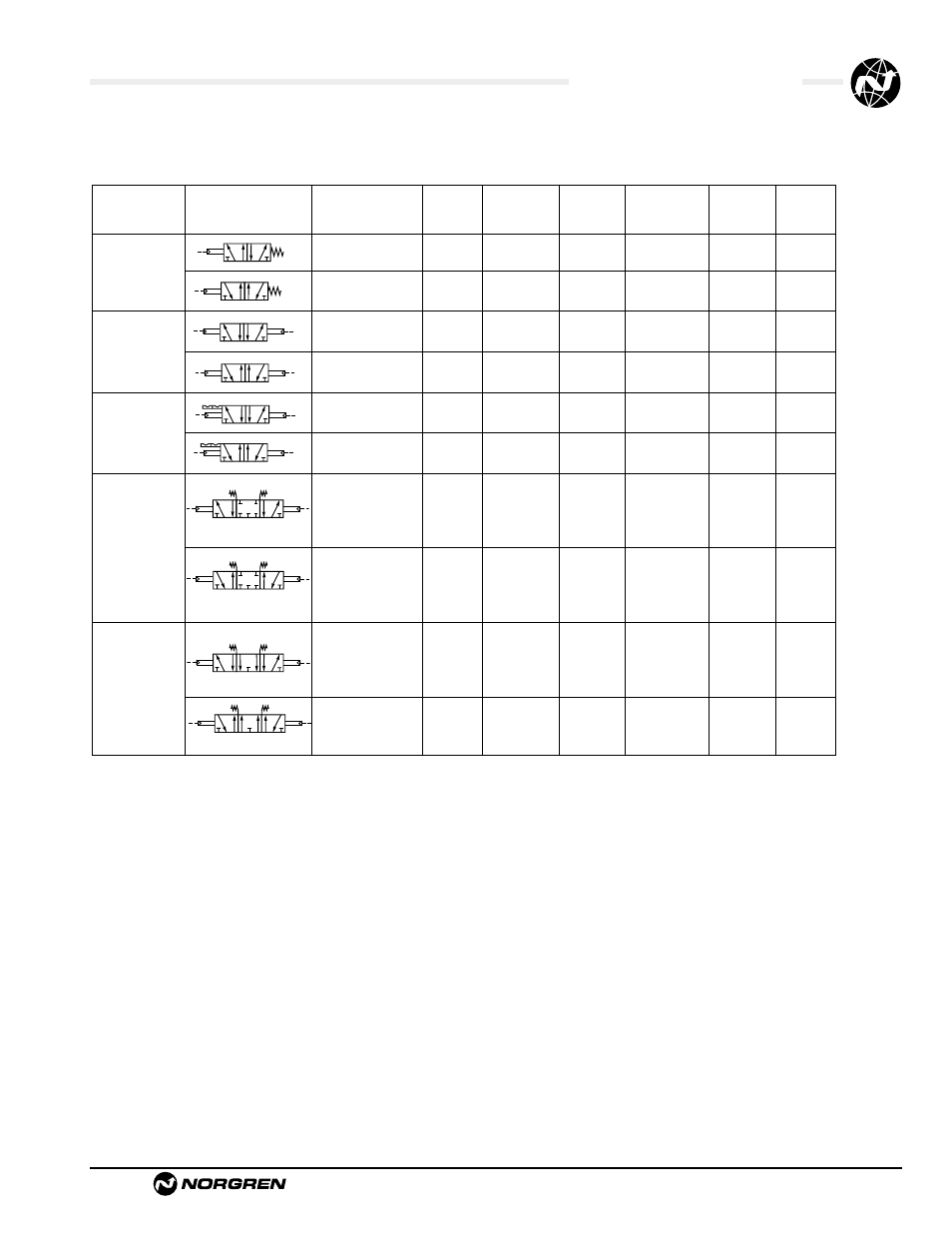

Nugget 500 Series Valves
Valves with Manifolding Subbases
Pilot
Port Pressure Weight Repair
Description Symbol Type Size Body Operator psig (bar) lbs. (kg) Kit
5-port/2-position 1/2" PTF MN01GGA 33-A000 40 - 150 2.09 54677-50
Single Air single pressure (2.8 - 10.3) (.95)
Spring Return* 5-port/2-position 1/2" PTF MN02GGA 33-A000 40 - 150 2.09 54677-51
dual pressure (2.8 - 10.3) (.95)
5-port/2-position 1/2" PTF MN01GGA 23-A000 20 - 150 2.09 54677-50
Double single pressure (1.4 - 10.3) (.95)
Air 5-port/2-position 1/2" PTF MN02GGA 23-A000 20 - 150 2.09 54677-51
dual pressure (1.4 - 10.3) (.95)
5-port/2 position 1/2" PTF MN01GGA 23-B000 30 - 150 2.37 54677-50
Double Air single pressure (2.1 - 10.3) (1.08)
Detent 5-port/2 position 1/2" PTF MN02GGA 25-B000 30 - 150 2.37 54677-51
dual pressure (2.1 - 10.3) (1.08)
5-port/3-position
single pressure, 1/2" PTF MN03GGA 23-F000 40 - 150 2.37 54677-52
all ports blocked in (2.8 - 10.3) (1.08)
Double Air, center position
Spring Centered, 5-port/3-position 1/2" PTF MN04GGA 23-F000 40 - 150 2.37 54677-53
all ports blocked dual pressure, (2.8 - 10.3) (1.08)
all ports blocked in
center position
5-port/3-position 1/2" PTF MN05GGA 23-F000 20 - 150 2.37 54677-54
Double Air single pressure, (1.4 - 10.3) (1.08)
Spring Centered cylinder open to
Cylinder Open exhaust
to Exhaust
5-port/3-position dual 1/2" PTF MN06GGA 23-F000 20 - 150 2.37 54677-55
pressure, cylinder (1.4 - 10.3) (1.08)
open to exhaust
2 4
3 1 5
4 2
3 1 5
2 4
3 1 5
2
4
3 1 5
2
4
3 1 5
2 4
3 1 5
2 4
1 5 3
2 4
1 5 3
2 4
1 5 3
2 4
1 5 3
* Standard valves are equipped with PTF threads.
Note: For ISO-G threads, insert “G” in the 7th position.
