Cirrus Logic CS61583 - Manual (Page 8)

J-TCK
J-TMS
J-TDI
J-TDO
t cyc
t dv
t su t h

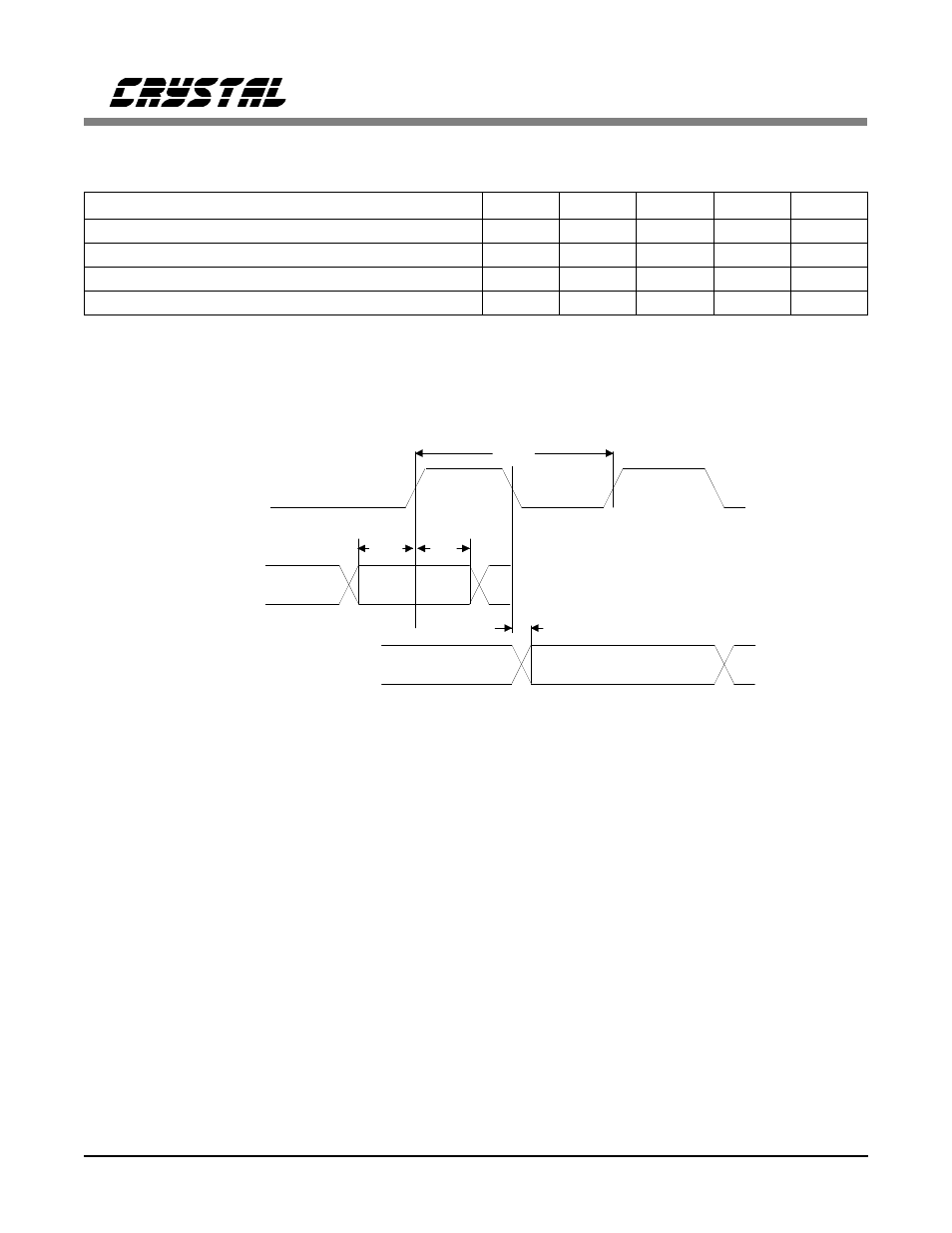

Figure 4. JAG Switching Characteristics
SWITCHING CHARACTERISTICS - JTAG
(T A = - 40
°
to 85
°
C;
TV+, RV+ = nominal
±
0.3V; Inputs: Logic 0 = 0V, Logic 1 = RV+) (See Figure 4)
Parameter Symbol Min Typ Max Units
Cycle Time t
cyc
200 - - ns
J-TMS/J-TDI to J-TCK rising setup time t
su
50 - - ns
J-TCK rising to J-TMS/J-TDI hold time t h 50 - - ns
J-TCK falling to J-TDO valid t
dv
- - 50 ns
CS61583
8 DS172PP5
