D-011-0093 27

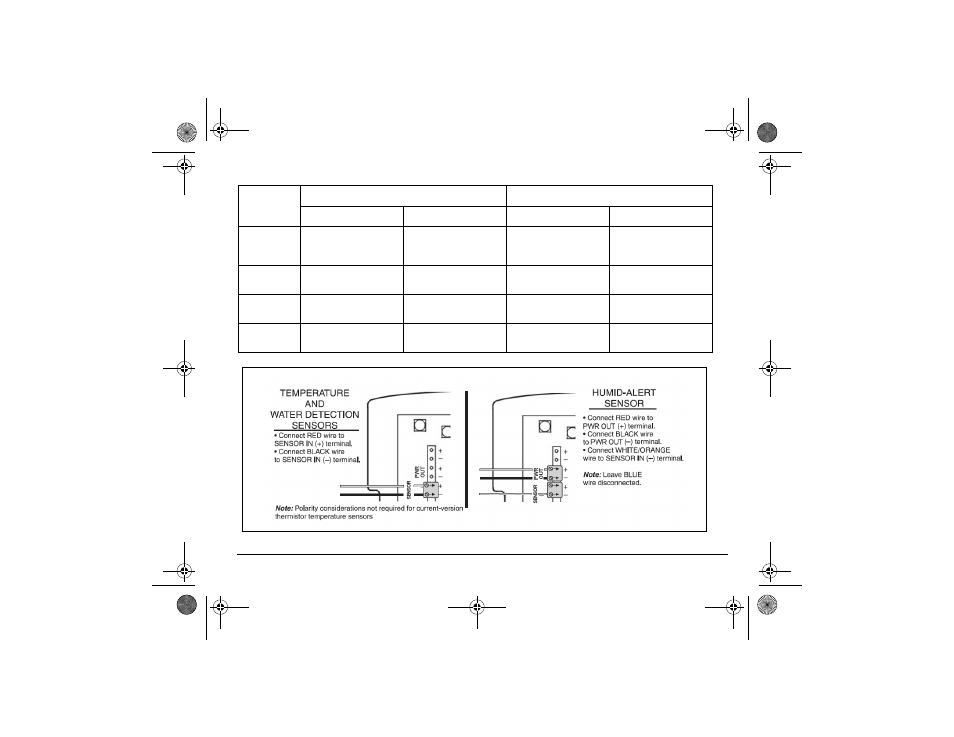

Figure 7. EA200 / EA400 Sensor Connections
Zone
Sensor IN Corresponding Alarm Outputs
EA200 EA400 EA200 EA400
1 no external
connection
(built-in temp. Zone)
SENSOR IN 1
(+) (–)
OUTPUT 1
NC C NO
OUTPUT 1
NC C NO
2 SENSOR IN 1
(+) (–)
SENSOR IN 2
(+) (–)
OUTPUT 2
NC C NO
OUTPUT 2
NC C NO
3 not available SENSOR IN 3
(+) (–)
not available OUTPUT 3
NC C NO
4 not available SENSOR IN 4
(+) (–)
not available OUTPUT 4
NC C NO
