D. computer logic and wiring diagram – American Dryer Corp. ADG-385 User Manual
Page 55
51

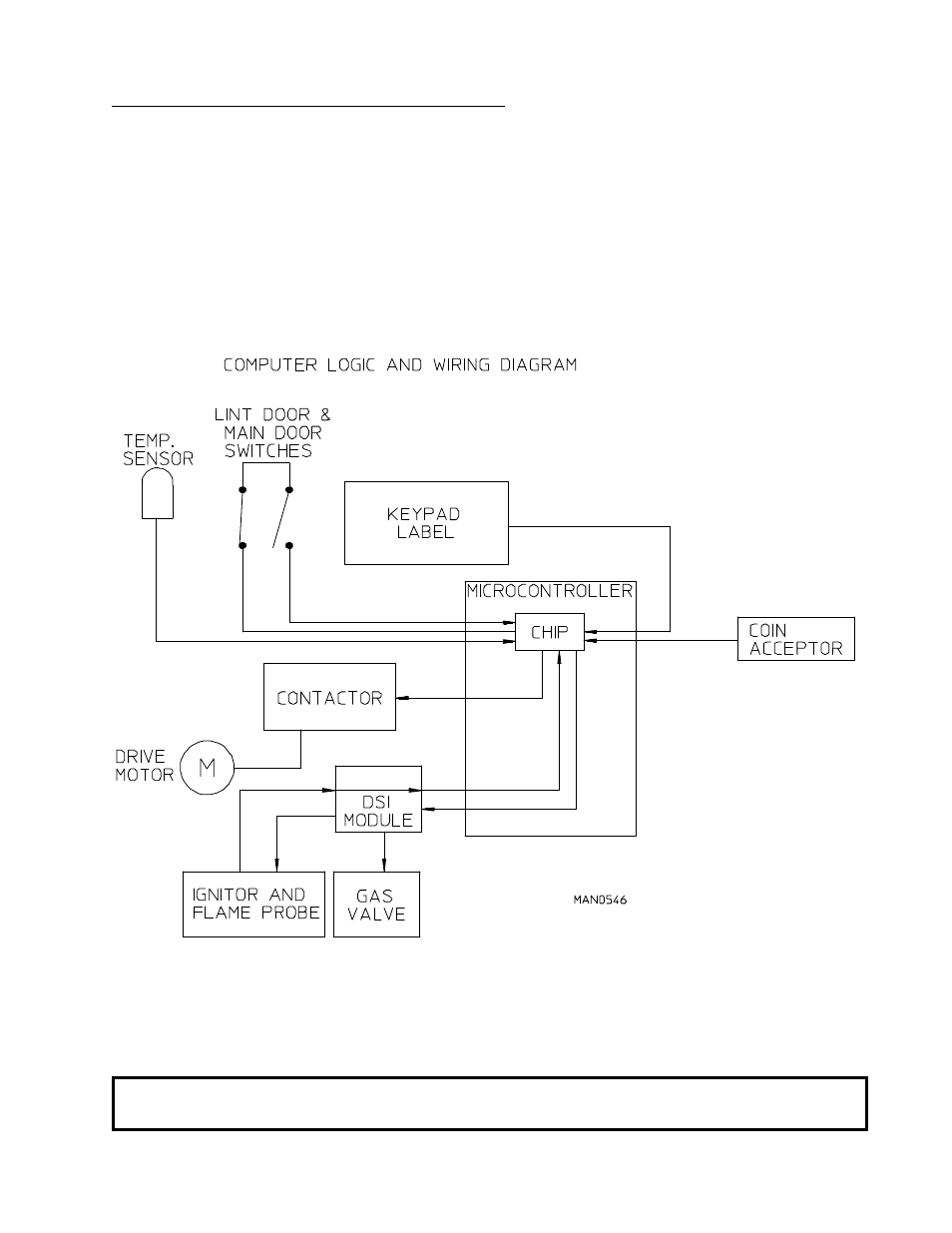

D. Computer Logic and Wiring Diagram
1. Operator inserts coin.
2. Operator enters desired selection(s) ...
3. Information entered is sent to the micro-controller via the keyboard ribbon.
4. The input information is sorted/processed and executed by the micro-computer chip.
5. The micro-computer output signal activates the contactors and DSI module which control machines
functions.
NOTE: When contacting American Dryer Corporation with electrical questions, please have on
hand the correct wiring diagram number for your particular machine.
