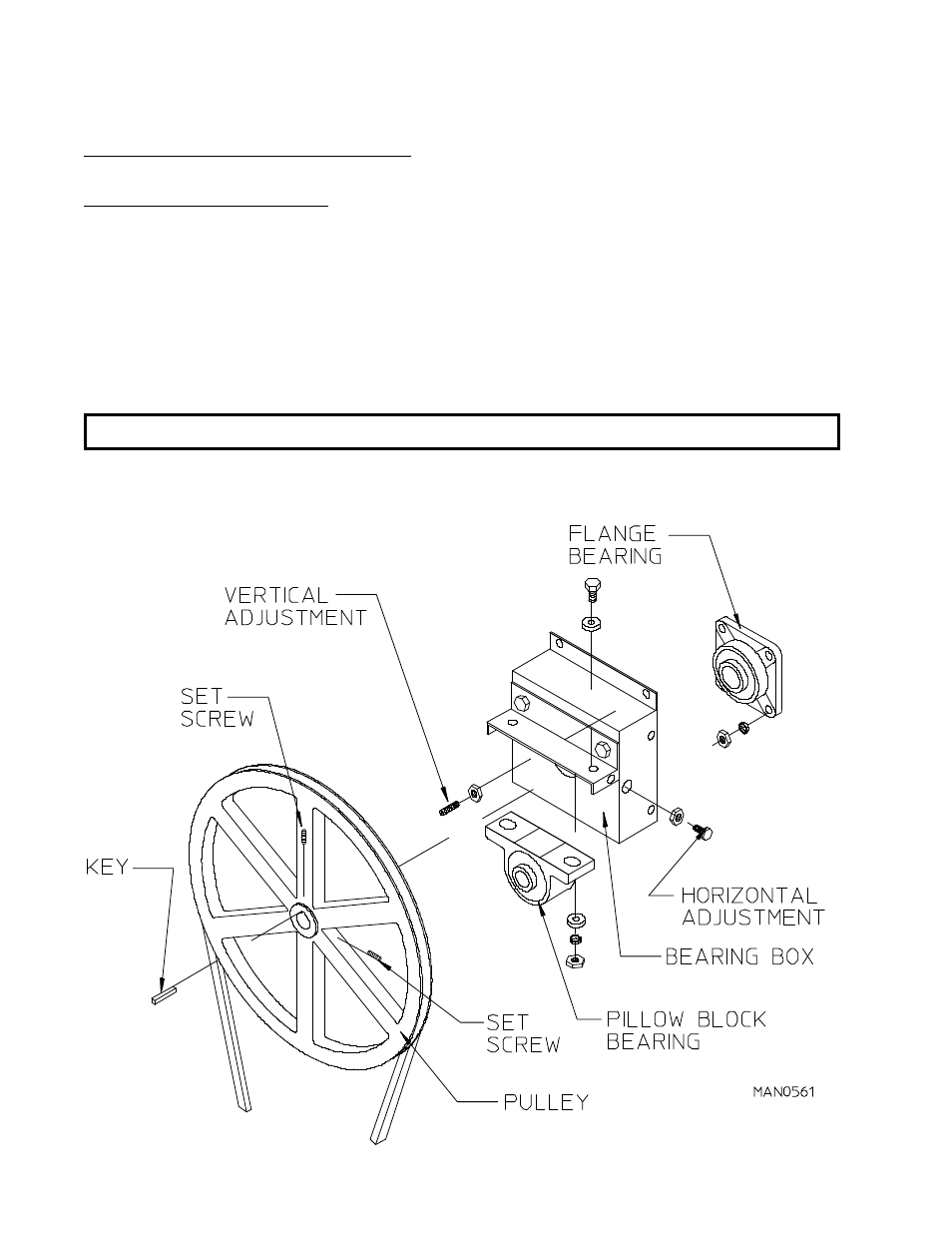

E. Tumbler and Bearing Assembly (Remove backguard to access assembly)
To Replace Tumbler Pulley
1. Remove backguard.
2. Loosen v-belts, then rotate pulley and roll v-belts out of grooves.
3. Loosen two (2) set screws on the pulley and pull the pulley off the shaft.
4. Reverse procedure for installing new tumbler pulley.
NOTE: Check belt alignment before operating dryer.
