SECTION V
Servicing
ALL electrical/mechanical service or repairs should be made with the electrical power to the dryer
disconnected (power off).
WARNING: PERSONAL INJURY COULD RESULT
The information provided in this section should not be misconstrued as a device for use by an untrained
person making repairs. Service work should be performed by competent technicians in accordance with
local, state, and federal codes.
When contacting the factory for assistance, always have the dryer model and serial numbers available.
CAUTION: Observe ALL safety precautions displayed on the dryer or specified in this manual
before and while making repairs.
Before considering replacement, make sure that ALL connectors are in place and making proper contact.
Check input voltages and temperature sensor. After replacing any parts or performing adjustments or
service run through a complete cycle.

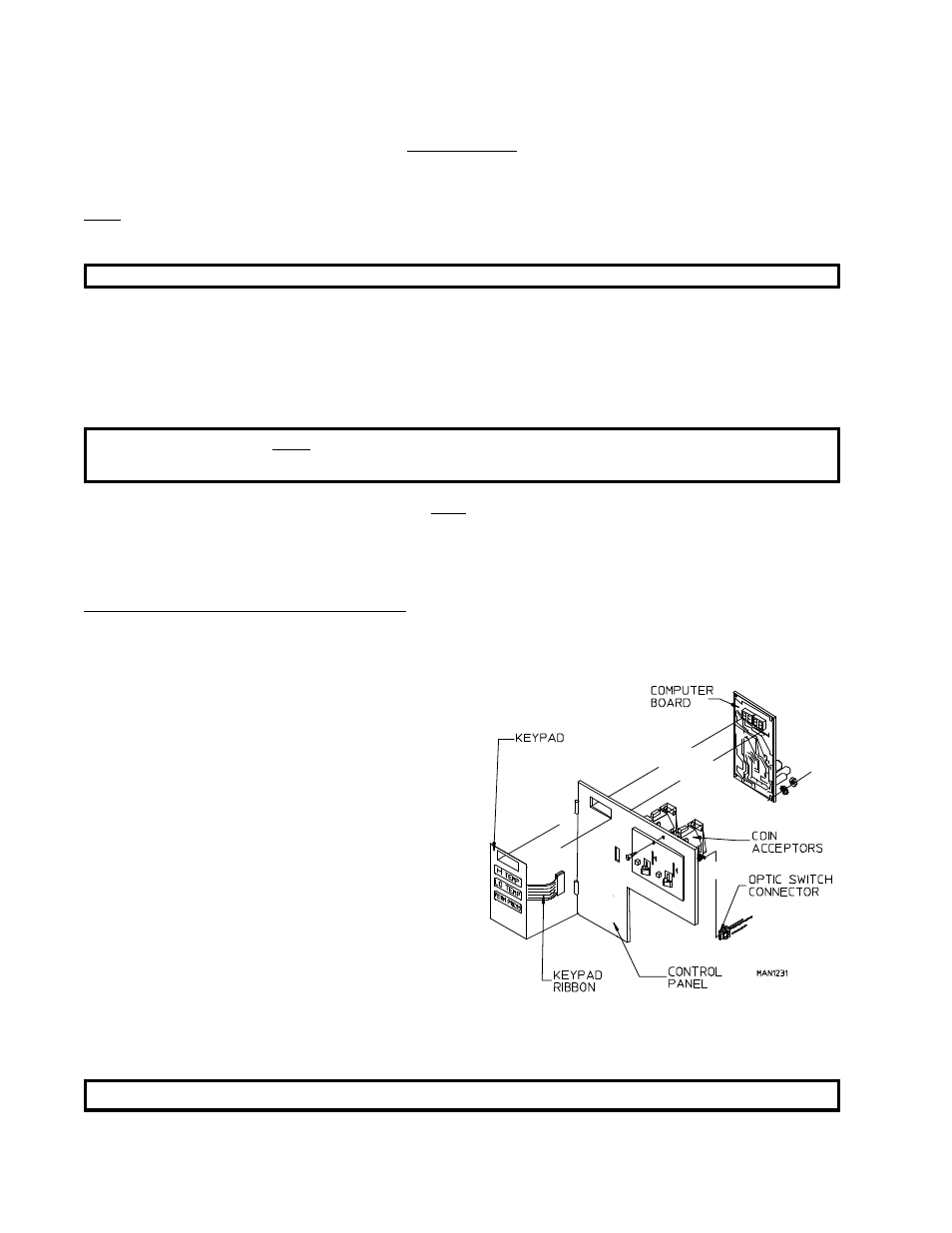

To Replace Control Panel Assembly
1. Disconnect power to the dryer.
2. Disconnect main power harness from rear of
computer by squeezing locking tab and pulling
connector straight back.
3. Disconnect the green ground wire from the
computer.
4. Disconnect coin acceptor optic switch connector
from 15 pin harness.
5. To remove control panel assembly from the
control box, gently tap the bottom of the control
panel upward and lift off the hinges.
6. Install new control panel assembly by reversing
this procedure.
7. Be sure to check or reset programs.
NOTE: Use caution when handling MP Controller. Easily damaged by static electricity.
