33

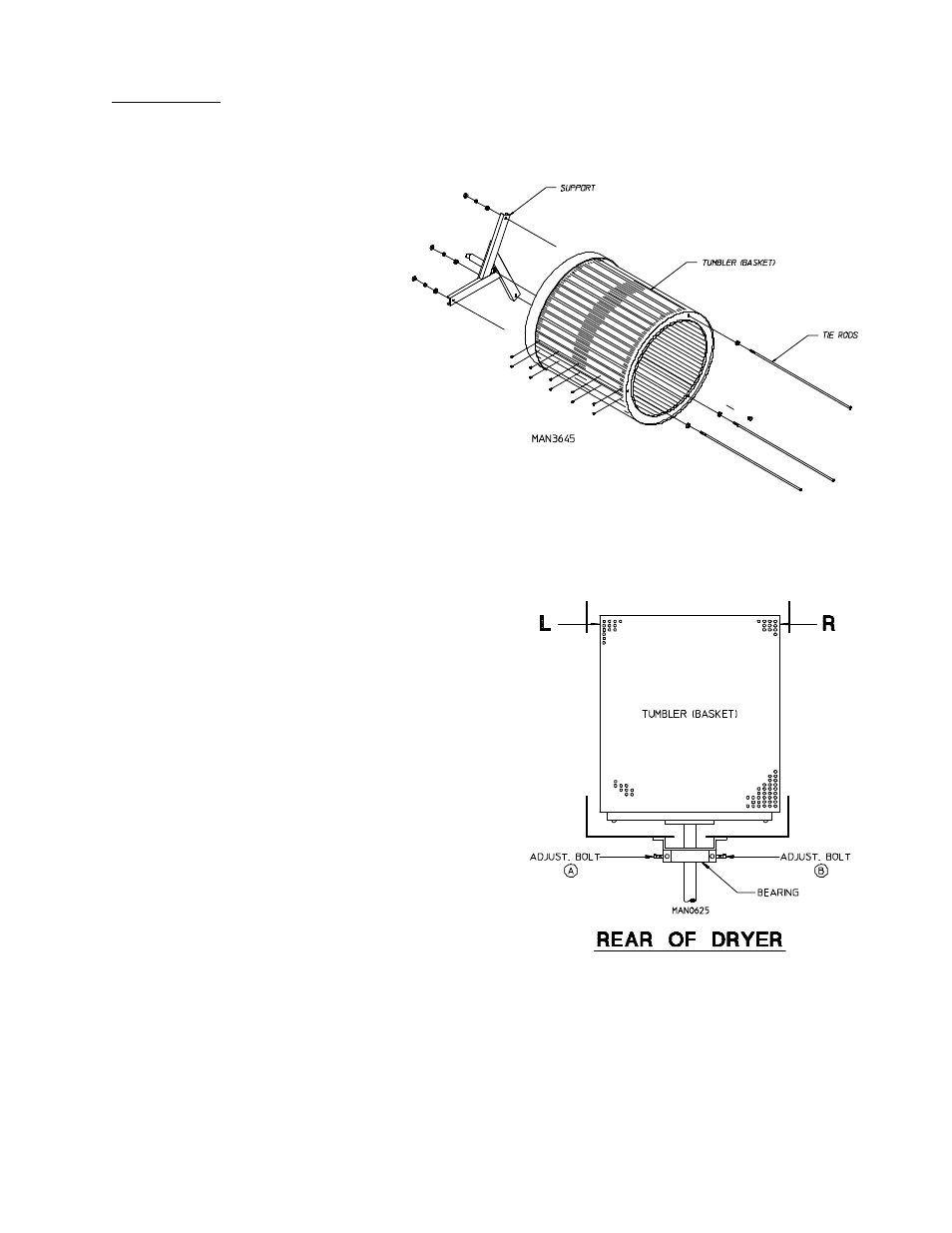

H. Tumbler (basket)
Tumbler Alignment (vertical)
1. Discontinue power to dryer.
2. Remove backguard.
3. Loosen the four (4) hex head bolts
on the sides of the bearing box
(2 on each side).
4. Back off jam nuts on the two (2)
allen head adjustment screws.
5. Turn the screws clockwise evenly
to raise the number or counter
clockwise evenly to lower the number.
6. Rotate the tumbler from the front and check
alignment with the main door opening.
7. Leave a large gap from the inside ring on
the top of the front panel opening to the
tumbler, and a smaller gap on the bottom to
compensate for the weight of the clothes drying.
8. Tighten the four (4) hex head bolts on the
sides of the bearing box, and the two (2) allen
head adjustment screws.
9. Replace backguard.
10. Reconnect power to dryer.
Tumbler Alignment (lateral)
1. Discontinue power to dryer.
2. Remove backguard.
3. Loosen the two (2) hex head bolts, (one turn is enough), that holds the pillow block bearings to the
bearing box.
4. Back off the two (2) jam nuts on the side adjustment bolts. Now rotate the tumbler from the front of the
dryer, checking the space between the tumbler and the front panel. This should be equal on the left
hand and right hand side.
