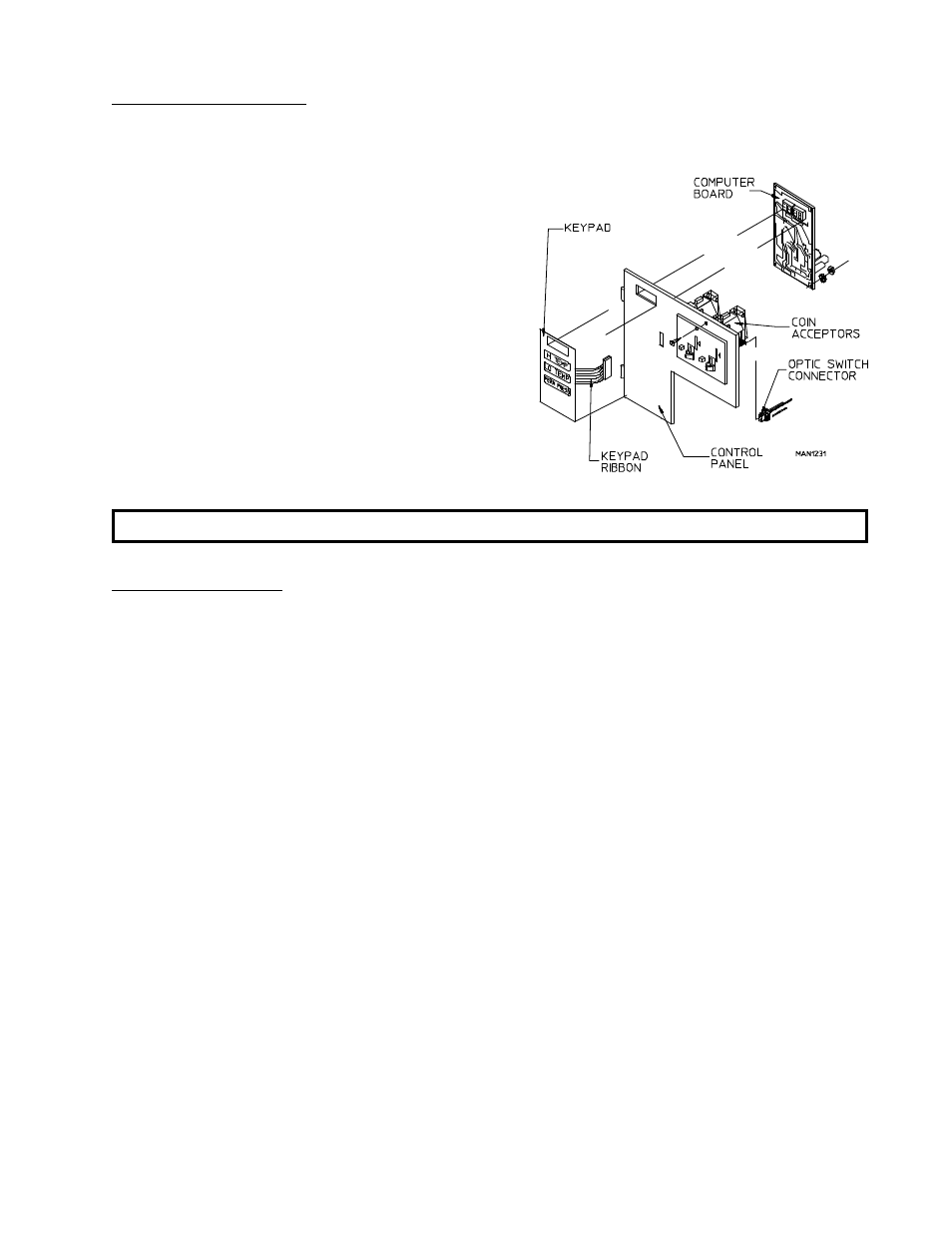

To Replace Keypad (refer to illustration above)
1. Discontinue power to dryer.
2. Swing control panel open and unplug keypad
ribbon from computer board.
3. Peel the keypad from the front of the control panel
taking care to avoid scratching the panel.
4. Clean any adhesive residue from the panel.
5. Peel off paper backing from new keypad.
6. Align the display window on the keypad with the
cutout in the control panel and press in place.
7. Connect keypad ribbon to the board and reconnect
power to the dryer.
8. Test for operation by pressing each temperature
selection.
To Replace Computer
1. Disconnect power to the dryer.
2. Disconnect main power harness from rear of
computer by squeezing locking tab and pulling
connector straight back.
3. Disconnect the green ground wire from the
computer.
4. Disconnect the keypad ribbon from the computer.
5. Remove the two (2) screws securing the computer
to the control panel and remove computer from
panel, by pulling upwards on the corners.
6. Install new computer by reversing this procedure.
7. Be sure to check or reset programs.
NOTE: Use caution when handling MP Controller. Easily damaged by static electricity.
