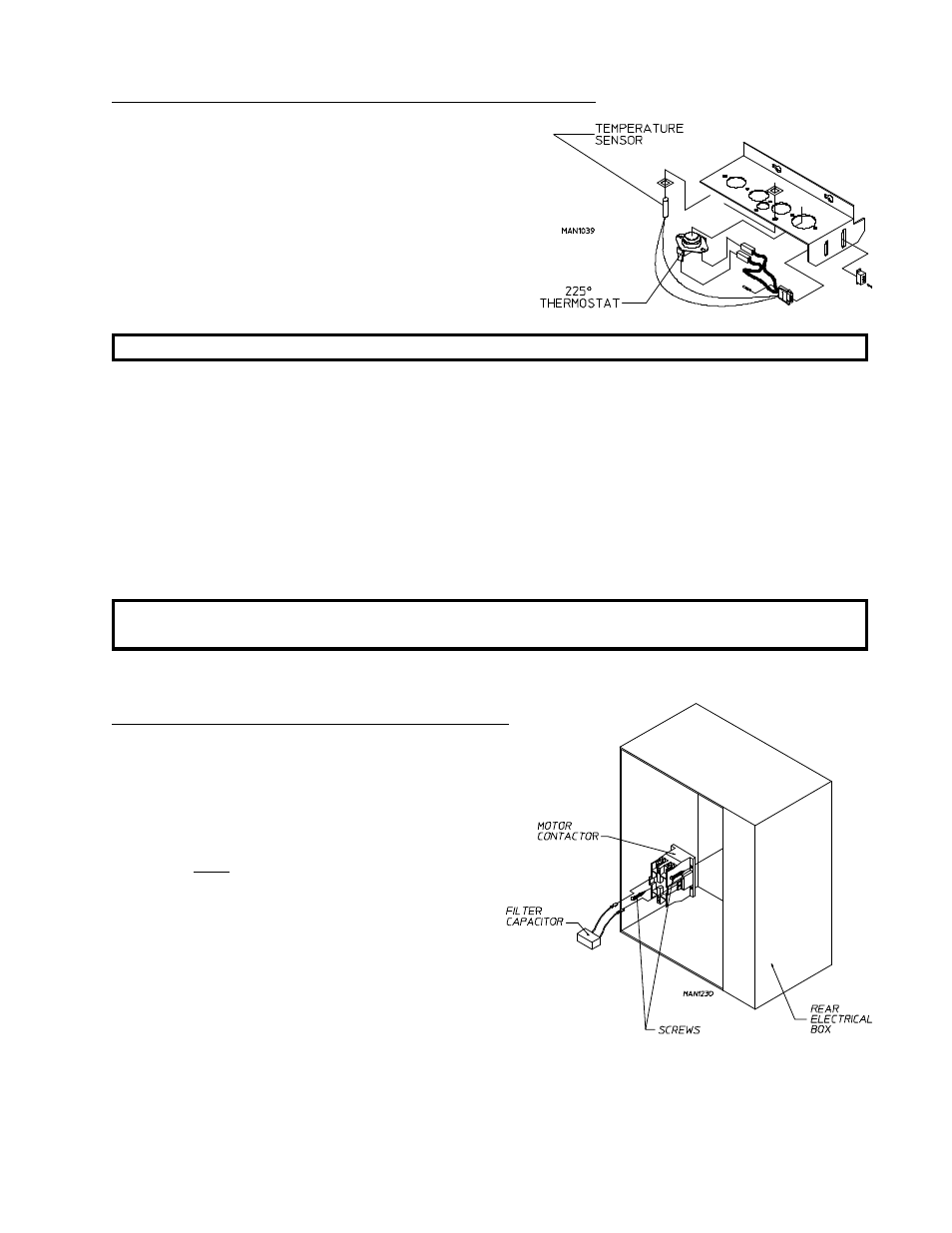

To Replace Microprocessor Temperature Sensor Probe

1. Discontinue power to dryer.

2. Remove M.P. sensor bracket assembly from the dryer.

A. Disconnect sensor bracket harness connector

B. Loosen the two (2) phillips head screw securing the

bracket assembly to the dryer and remove the

bracket from the dryer.

NOTE: DO NOT remove screws.

3. Disassemble sensor probe from bracket assembly by removing the top push-on fastener securing the

probe from bracket. Use a small screwdriver to slowly pry the fastener off.

4. Disconnect the two (2) orange wires from the high heat (225 degree) thermostat, and remove modular

bracket connector, wires, and probe from bracket assembly.

5. Install new sensor probe assembly (ADC P/N 880251) by reversing procedure.

6. Reestablish power to the dryer.

NOTE: If, when power is reestablished, the computer display reads "dSFL", check for a loose

connection in the wiring.

To Replace Motor Contactor 2-Pole, 24VAC

1. Discontinue power to dryer.

2. Remove both screws securing motor

contactor to the electric panel.

3. Remove ALL wires from contactor

(NOTE: make sure each wire is marked

with location removed from).

4. Install new contactor in reverse procedure.

5. Re-establish power to dryer.
