E. Lint Coop

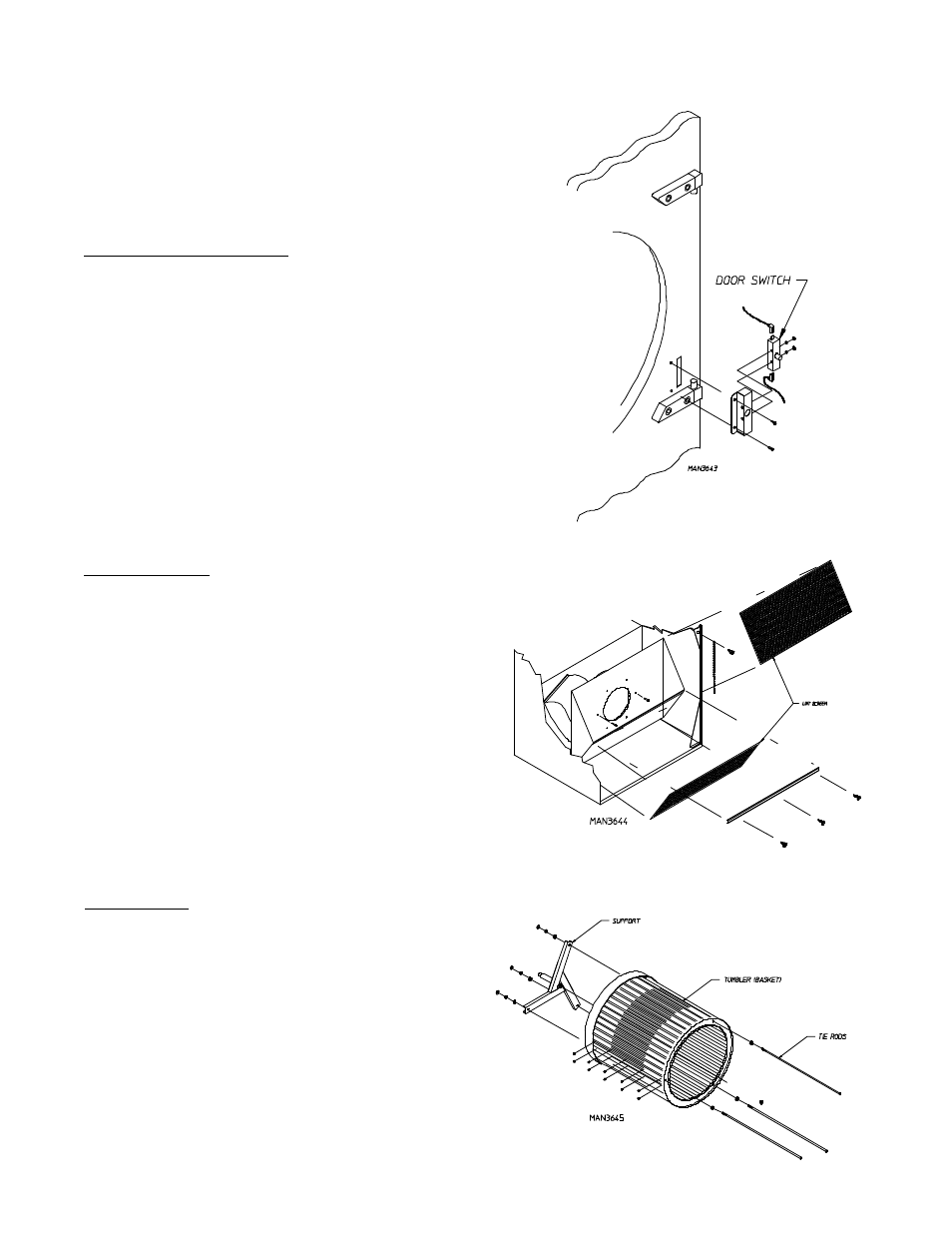

The lint coop is the bottom portion of the dryer behind
the lint door. Inside the lint coop is the lint screen which
prevents lint from entering the exhaust system. The
lint screen should be kept clean at all times. On the WDA-
385/ADG-385 models there are two (2) lint screens. The
lint screens should be cleaned on a daily basis. Lint screens
with tears or holes should be replaced immediately.
F. Tumbler
The tumbler consists of three or four ribs and a
perforated basket along with a front and back which
are riveted or screwed together as an assembly. The
tumbler also consists of tie rods which support the
tumbler from front to back. The tumbler support is
used to mate the tumbler to the drive system in the rear.
Some models also have a felt band which helps to keep
lint from accumulating behind the basket.
D. Main Door Switch
The main door switch is located behind the main door
on the right hand side. When the main door is opened,
the switch will also open preventing the dryer from
operating. The main door switch is a safety device and
should never be disabled.
