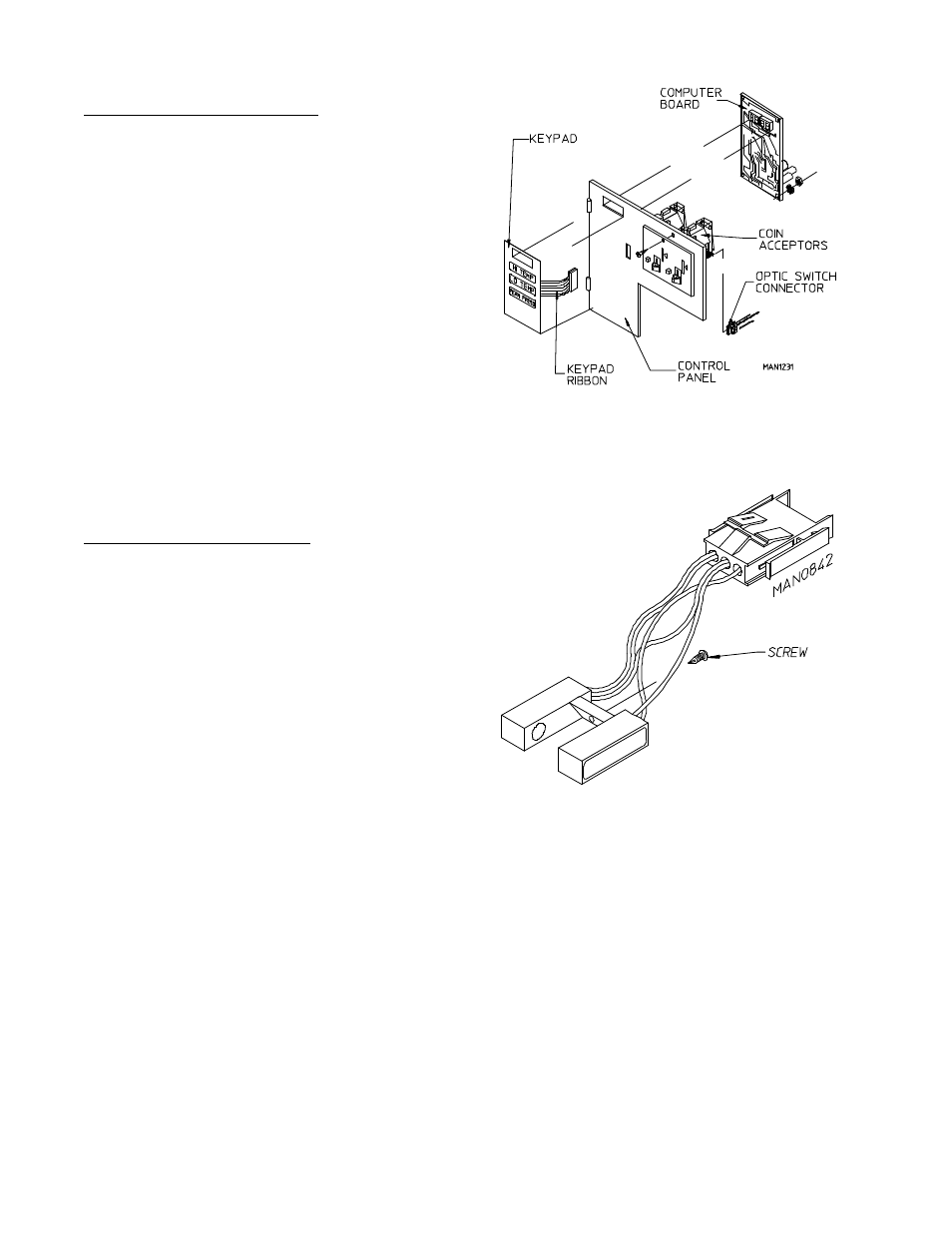

To Replace Coin Acceptor
1. Discontinue power to dryer.
2. Swing control panel open.
3. Unplug optic switch harness connector.
4. Remove one (1) screw holding coin acceptor in place.
5. Pull coin acceptor out gently.
6. Reverse procedure for installing new acceptor.
To Remove Optic Switch
1. Unplug optic switch connector.
2. Remove screw and washer holding optic switch to the
coin acceptor and pull optic switch away.
3. Reverse procedure for installing new optic switch.
