4 Defining the VP-4x1CS 4x1 PC Graphics Clean Switcher
This section defines the front and rear panels of the VP-4x1CS.

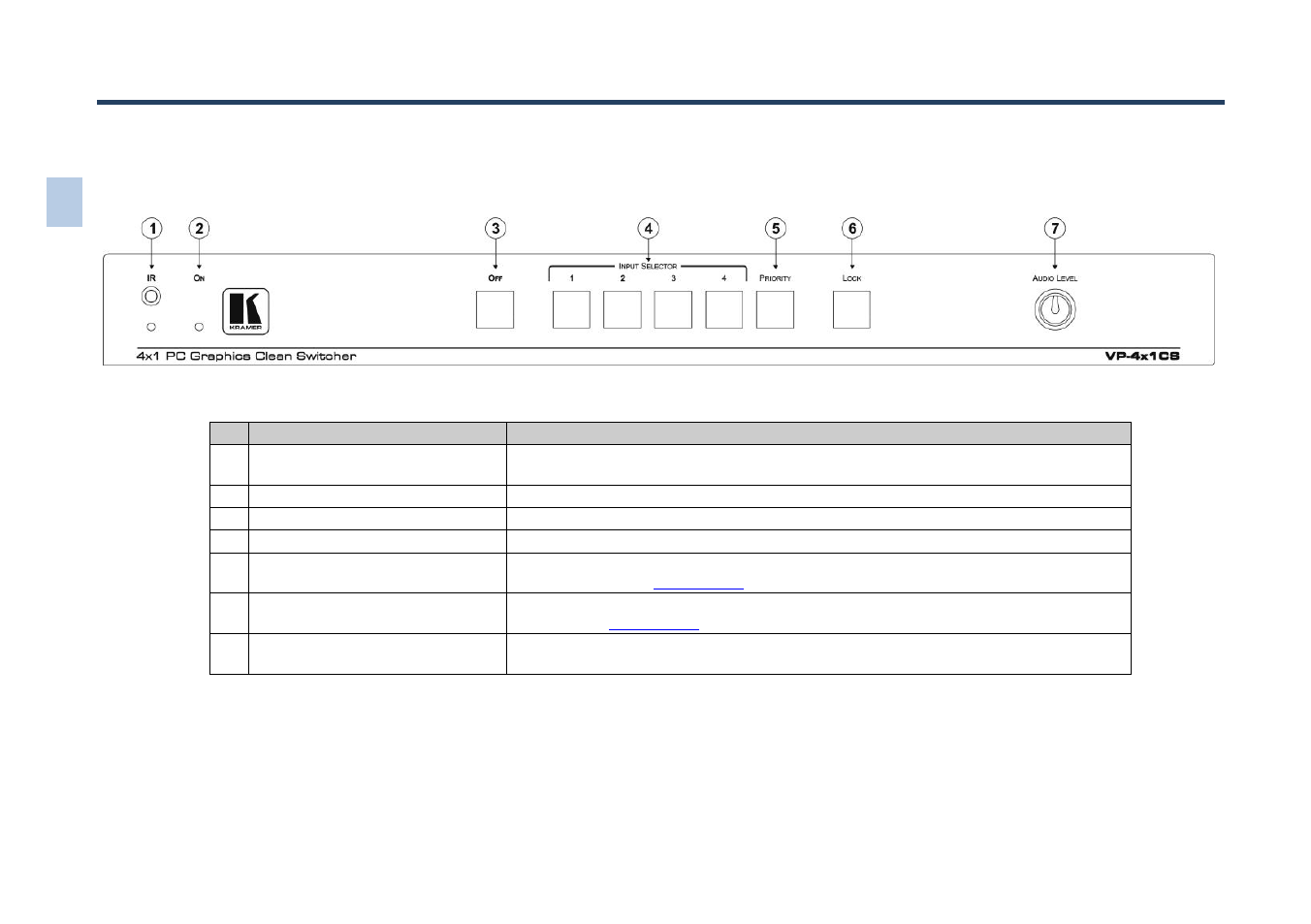

Figure 1: VP-4x1CS 4x1 PC Graphics Clean Switcher Front Panel
# Feature Function
1 IR Receiver and LED Signal receiver and LED for the infrared remote control transmitter. The indicator LED
lights yellow when receiving an IR signal
2 ON LED The LED lights green when the device is powered on
3 OFF Button Press to mute the output
4 INPUT SELECTOR 1~4 Buttons Press one of the 4 input buttons to switch it to the output
5 PRIORITY Button Press to set the current active input as the priority input. Press again to cancel priority
input selection (see
Section 7.1.1 )
6 LOCK Button Press and hold to lock the front panel buttons. Press and hold again to unlock the
buttons (see
Section 7.1.3 )
7 AUDIO LEVEL Control Rotate clockwise to increase the audio level and anticlockwise to decrease the audio
level of the audio output
