VP-4x1CS - Operating the VP-4x1CS 4x1 PC Graphics Clean Switcher 21

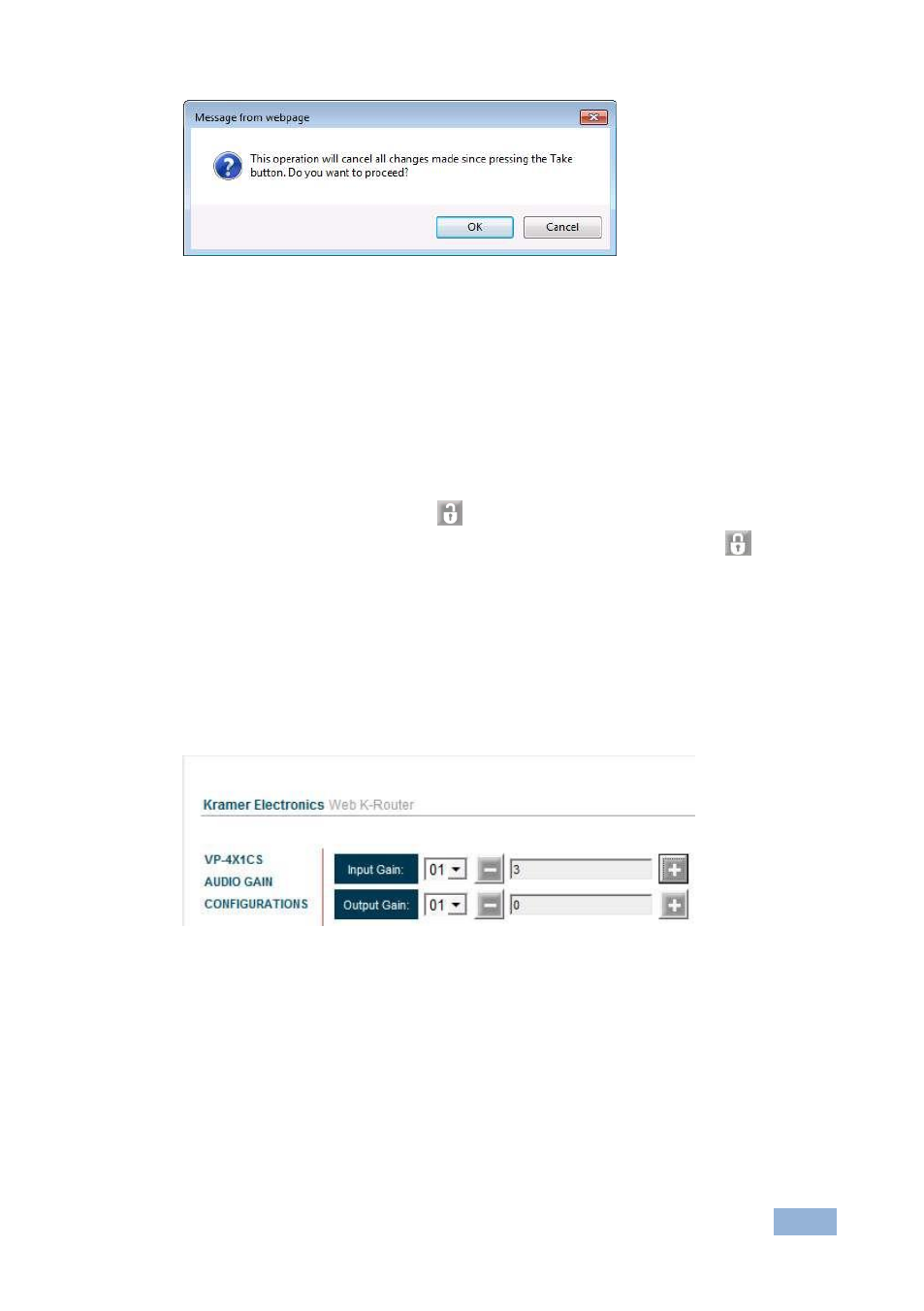

Figure 14: Exiting Offline Warning
5. Click OK to cancel all changes made. Click Cancel to return to the
switching matrix screen with the changes made but not saved.
7.2.5 Locking and Unlocking the Front Panel Buttons
To lock and unlock the front panel buttons:
1. Click on the unlocked icon .
The front panel buttons are locked and the locked icon appears .
2. Click on the locked icon.
The front panel buttons are unlocked and the unlocked button appears.
7.2.6 The Audio Gain Page
The Audio Gain screen lets you set the gain for the four inputs and the output.
Figure 15: Audio Gain Page
To change an input or output gain:
1. Using the Input Gain drop-down list, select the channel number.
2. Click and hold the + or
– button to increase or decrease the gain
respectively.
