3. Click Run.
The main switching control Home page is displayed which shows a graphical
interpretation of the front panel (see Figure 12 ).
The Web pages let you control the VP-4x1CS via the Ethernet. The menu appears
on the left side of the screen. There are three remote operation Web pages:

The switching matrix (see Section 7.2.2 )

Audio gain (See Section 7.2.5 )

Configuration (See Section 7.2.7 )
A description of each Web page is displayed if you place your mouse over the
question mark that appears on the left side of the screen.
7.2.2 The Switching Matrix Page
The VP-4x1CS switching matrix page lets you route any of the four inputs to the
output by clicking the relevant square on the matrix.

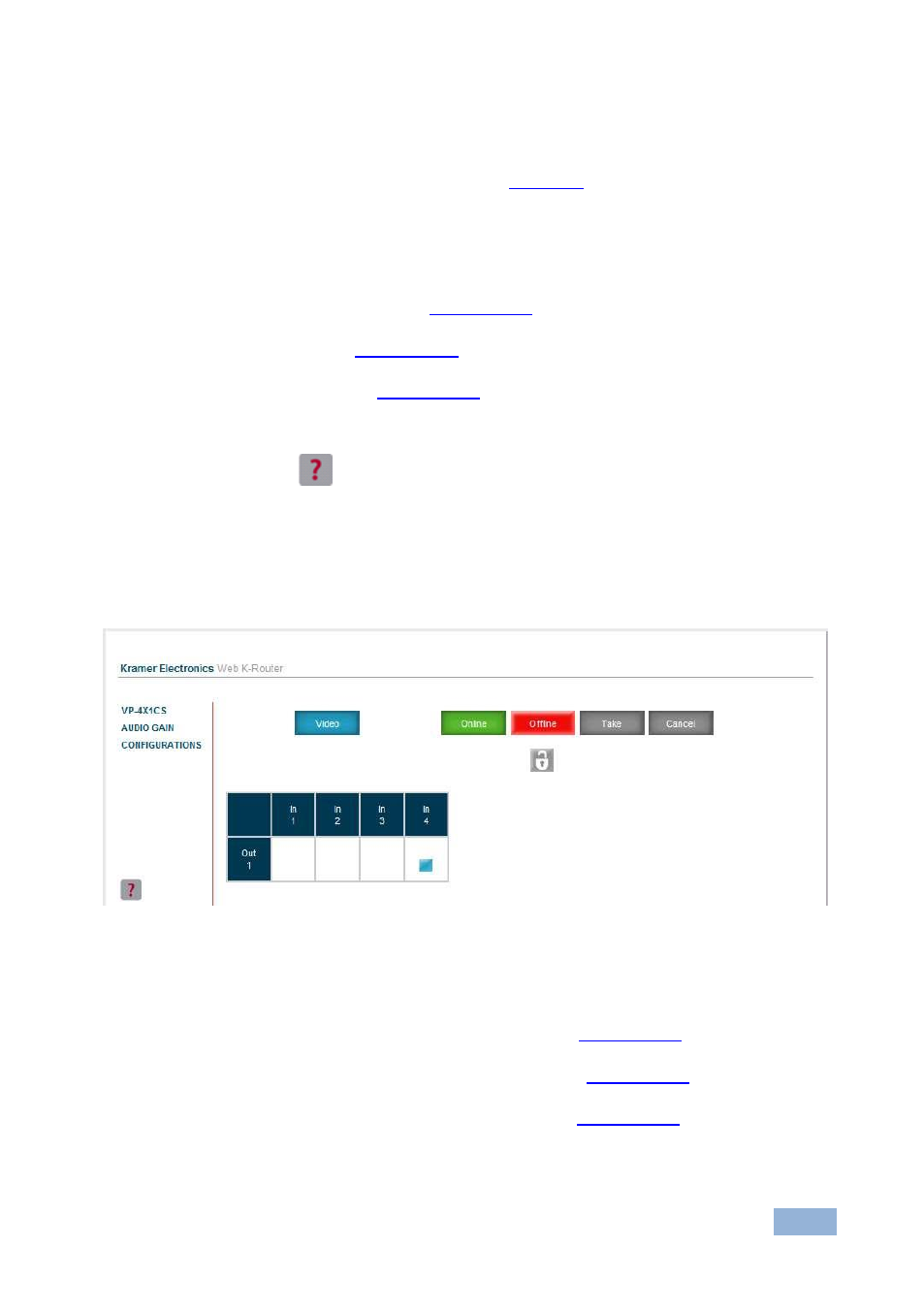

Figure 12: VP-4x1CS Switching Matrix Page
From this page you can:

Select an input by clicking on the matrix (see Section 7.2.3 )

Operate in the At-Once or Confirm mode (see Section 7.2.4 )

Lock and unlock the front panel buttons (see Section 7.2.5 )
