24

VP-4x1CS - Wiring the TP RJ-45 Ethernet Connector

8

Wiring the TP RJ-45 Ethernet Connector

This section defines the TP pinout using a straight pin-to-pin cable with RJ-45

connectors.

EIA /TIA 568B

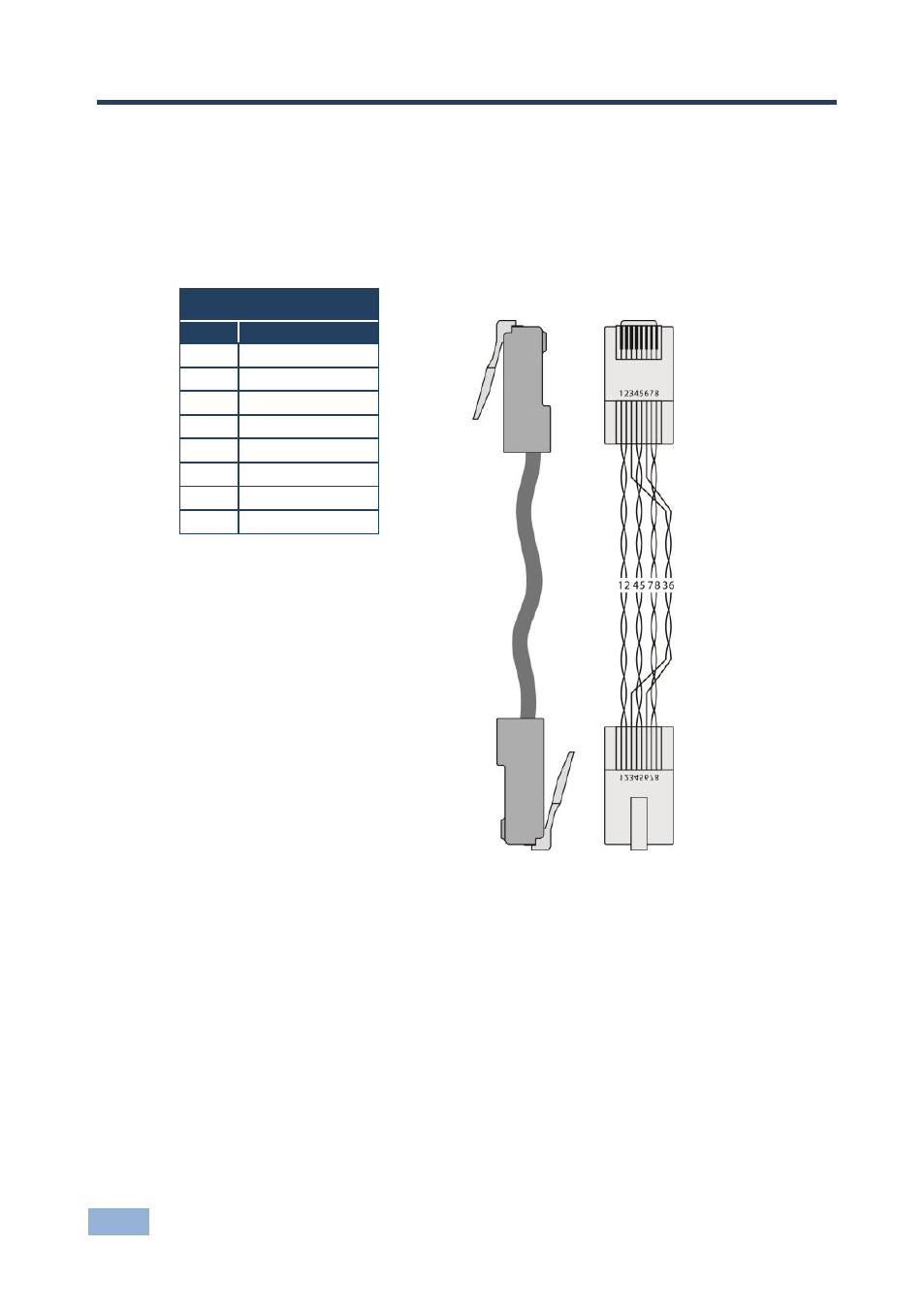

Figure 17: TP Pinout Wiring

PIN

Wire Color

1

Orange / White

2

Orange

3

Green / White

4

Blue

5

Blue / White

6

Green

7

Brown / White

8

Brown
