VP-4x1CS - Connecting the VP-4x1CS 4x1 PC Graphics Clean Switcher 9
6 Connecting the VP-4x1CS 4x1 PC Graphics
Clean Switcher
Always switch off the power to each device before connecting it to your
VP-4x1CS. After connecting your VP-4x1CS, connect its power and
then switch on the power to each device.

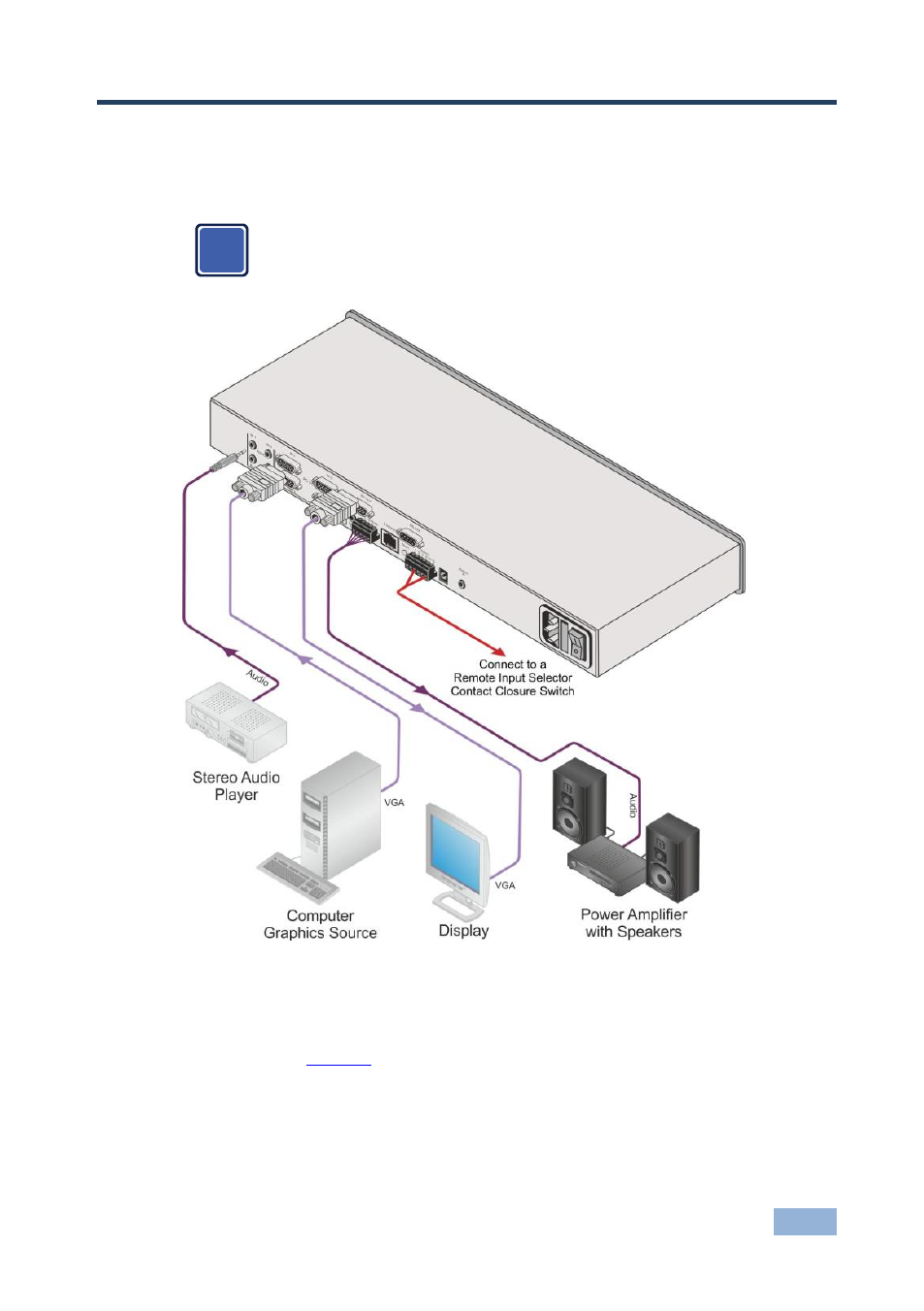

Figure 3: Connecting the VP-4x1CS 4x1 PC Graphics Clean Switcher
To connect the VP-4x1CS 4x1 PC Graphics Clean Switcher as illustrated in
the example in Figure 3 :
1. Connect up to four audio sources (for example, stereo audio players) to the
Audio In connectors.
2. Connect up to four PC graphics sources to the PC Video In connectors.
i
