VP-4x1CS - Connecting the VP-4x1CS 4x1 PC Graphics Clean Switcher 13
6. Select Use the following IP Address, and fill in the details as shown in
Figure 8 . You can use any IP address in the range 192.168.1.1 to
192.168.1.255 (excluding 192.168.1.39) that is provided by your IT
department.
7. Click OK.

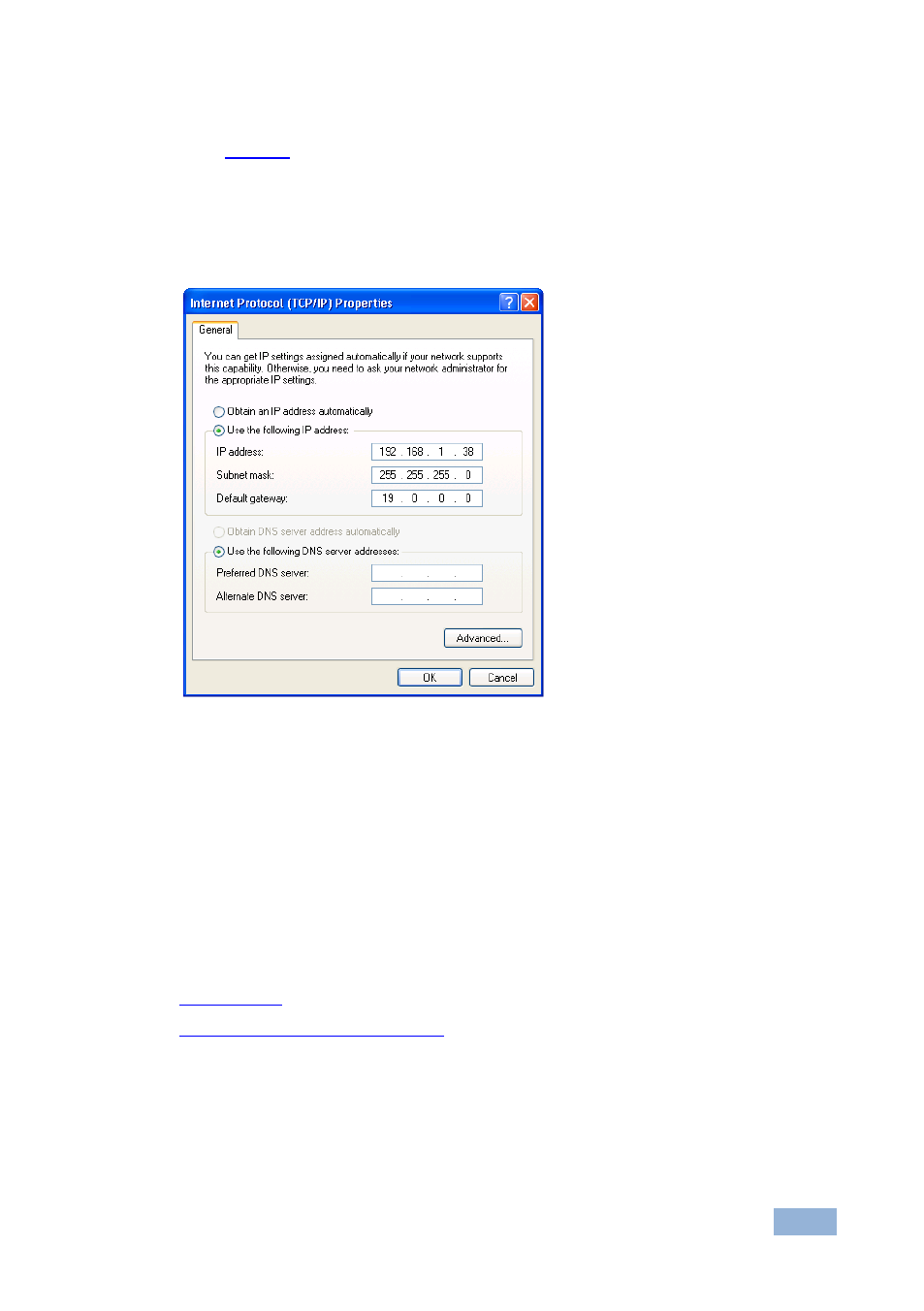

Figure 8: Internet Protocol (TCP/IP) Properties Window
6.4.2 Connecting the Ethernet Port via a Network Hub
You can connect the Ethernet port of the VP-4x1CS to the Ethernet port on a
network hub or network router, via a straight through cable with RJ-45 connectors.
6.5 Ethernet Port Configuration
To configure the Ethernet port, use either the embedded Web pages (see
Section 7.2.7 ) or the K-Upload Software which is available for download from
http://www/kramerelectronics.com .
