3. Introduce the product into the front frame from the inside. In doing so, slide
the clamping jaws of the front frame 2 into the product’s guides 3 on the top
and bottom. Engage both of the noses on the inner edge of the front frame 1
in the recesses provided on the product 4.
4. Prevent any unauthorised actuating of the lockable protective cap FSS−K−12−C
(Fig. 10). Use of the protective cap is mandatory for compliance with protecĆ
tion class IP54.

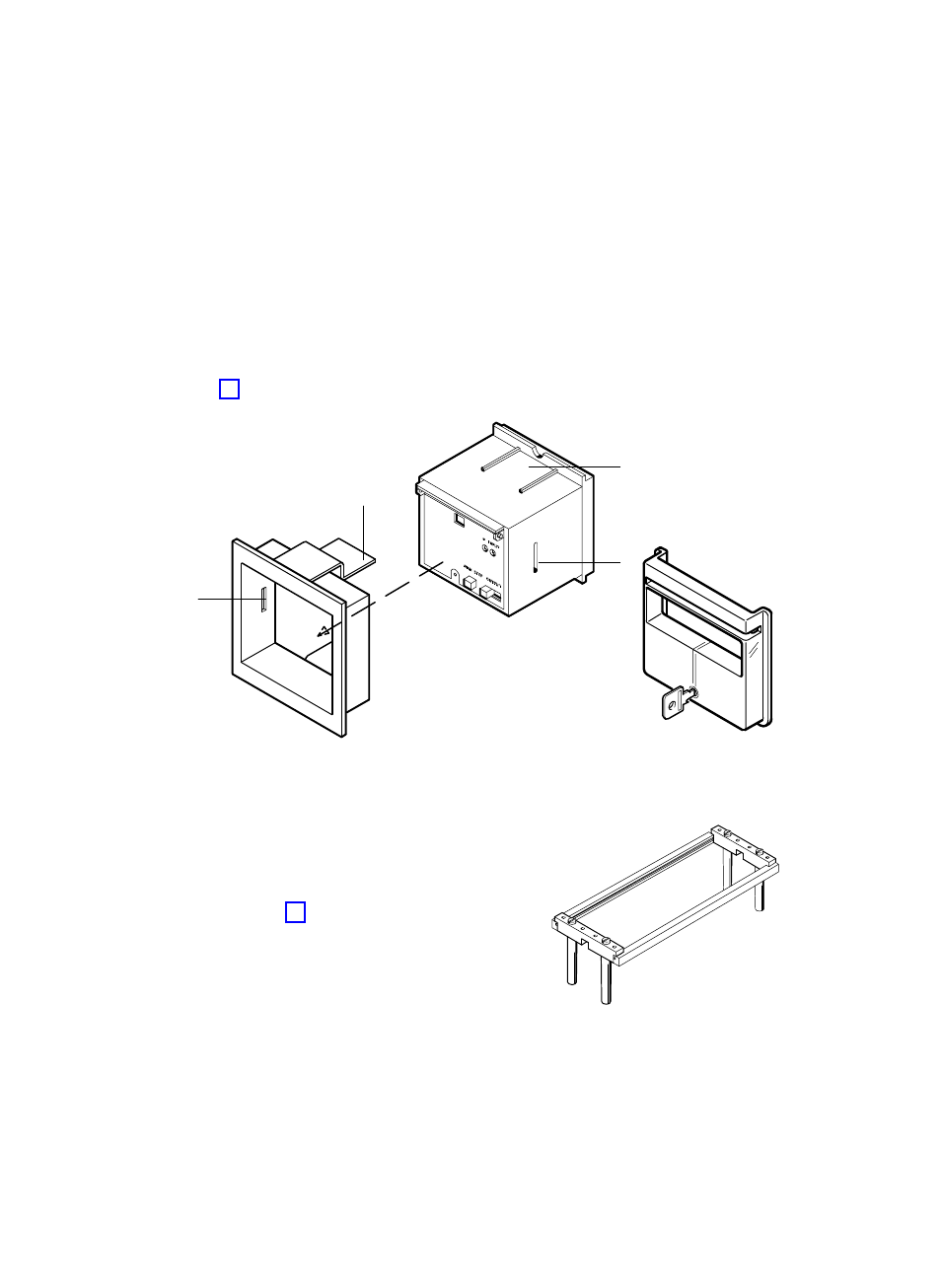

Fig. 9 Fig. 10
2
3
4
1
6.2 Fitting in the control cabinet
Fit the product on the Festo 2N installation
frame NRRQ−2N of the standard frame system
M5 Compact (Fig. 11).
Fig. 11
