American Electric Lighting a division of Acuity Lighting Group, Inc. Conyers, GA
DRAWING NO. B62071 REV B (BACK) ©2003 ACUITY LIGHTING GROUP, INC. PART NUMBER 057-70-62071
WARNING
DISCONNECT POWER BEFORE RELAMPING OR WIRING THE FIXTURE.
HOUSING MUST BE GROUNDED TO REDUCE POTENTIAL OF ELECTRICAL SHOCK
!
FIXTURE MUST BE INSTALLED IN COMPLIANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL/BUILDING CODES.
CAUTION
!
LENS REPLACEMENT
DISCONNECT THE POWER SUPPLY AND ENSURE THAT LAMP IS
COOL TO THE TOUCH BEFORE SERVICING. OPEN THE BEZEL BY
LOOSENING THE #1/4 CLOSURE SCREW OR THE WIRE LATCH
LOCATED AT THE TOP OF THE FIXTURE. LOOSEN THE 8 LENS
CLIP SCREWS AND ROTATE THE CLIPS. REMOVE THE OLD LENS
PARTS AND INSTALL THE NEW LENS. ROTATE THE CLIPS BACK
INTO POSITION AND TIGHTEN THE LENS CLIP SCREWS.
WIRING
CHANNEL MOUNT
FIXTURE IS AVAILABLE WITH FACTORY INSTALLED OPTIONS OF
PRE-WIRED FLEXIBLE CABLE OR LIQUID- TIGHT FLEXIBLE
CONDUIT. FOR UNITS WHICH ARE NOT PRE-WIRED, OPEN THE
BEZEL BY EITHER LOOSENING THE #1/4 CLOSURE SCREW OR
THE WIRE LATCH LOCATED AT THE TOP OF THE FIXTURE. LIFT
THE FIBER SHIELD TO EXPOSE THE WIRING COMPARTMENT.
REMOVE THE COMPRESSION FITTING AND GROMMET. FEED THE
CABLE THROUGH THE WIRE ENTRY HOLE. SLIP THE GROMMET
AND COMPRESSION FITTING OVER THE CABLE AND RE-ASSEMBLE
TO THE HOUSING. USING THE WIRING DIAGRAM AS A GUIDE,
MAKE CONNECTIONS AS INSTRUCTED ABOVE. CABLE SHOULD BE
NO. 18 AWG MINIMUM, TYPE SJ, SO, OR SJT-WA, SUITABLE
FOR 60°C OPERATION.
ADJUSTABLE TENON MOUNT
OPEN THE ACCESS DOOR ON THE TENON MOUNT, FEED THE
SUPPLY WIRES THROUGH THE BOTTOM OF THE TENON MOUNT
AND OUT OF THE ACCESS DOOR LOCATED ON THE TENON
MOUNT. SLIP TENON MOUNT OVER POLE TENON AND MAKE
THE WIRING CONNECTIONS AS INSTRUCTED ABOVE.
PUSH LEADS BACK INTO WIRING COMPARTMENT OF TENON
MOUNT AND REPLACE COVER.
FIXED POSITION TENON MOUNT
FEED THE SUPPLY WIRES THROUGH THE TENON MOUNT AND
THROUGH THE OPENING IN THE HOUSING WALL. OPEN THE
BEZEL BY LOOSENING THE #1/4 CLOSURE SCREW OR THE
WIRE LATCH AT THE TOP OF THE FIXTURE. LIFT THE
FIBER SHIELD TO EXPOSE THE WIRING COMPARTMENT.
MAKE THE WIRING CONNECTIONS AS INSTRUCTED ABOVE.
REPLACE THE FIBER SHIELD.
FOR MULTI-VOLT BALLAST FIXTURE, DETERMINE THE CORRECT
SUPPLY VOLTAGE, THEN CONNECT THE BLACK SERVICE WIRE
TO THE 120, 208, 240, OR 277 VOLT FIXTURE WIRE, AS
REQUIRED. CONNECT THE WHITE FIXTURE WIRE TO THE WHITE
SERVICE WIRE. MAKE SURE THAT ALL UNUSED FIXTURE WIRE
ENDS ARE INSULATED.
MAKE WIRING CONNECTIONS BY CONNECTING THE WHITE
FIXTURE WIRE TO THE WHITE SERVICE WIRE. CONNECT THE
BLACK FIXTURE WIRE TO THE BLACK SERVICE WIRE, AND
CONNECT THE GREEN (OR BARE) SERVICE WIRE TO THE GREEN
FIXTURE WIRE OR THE GROUND SCREW. USE TWIST-ON TYPE
WIRE CONNECTORS (NOT INCLUDED) TO MAKE THE CONNECTIONS,
MAKING SURE THAT THE CONNECTIONS ARE SECURE, PROPERLY
INSULATED AND THAT NO LOOSE WIRE STRANDS ARE STICKING
OUT OF THE WIRE CONNECTORS.

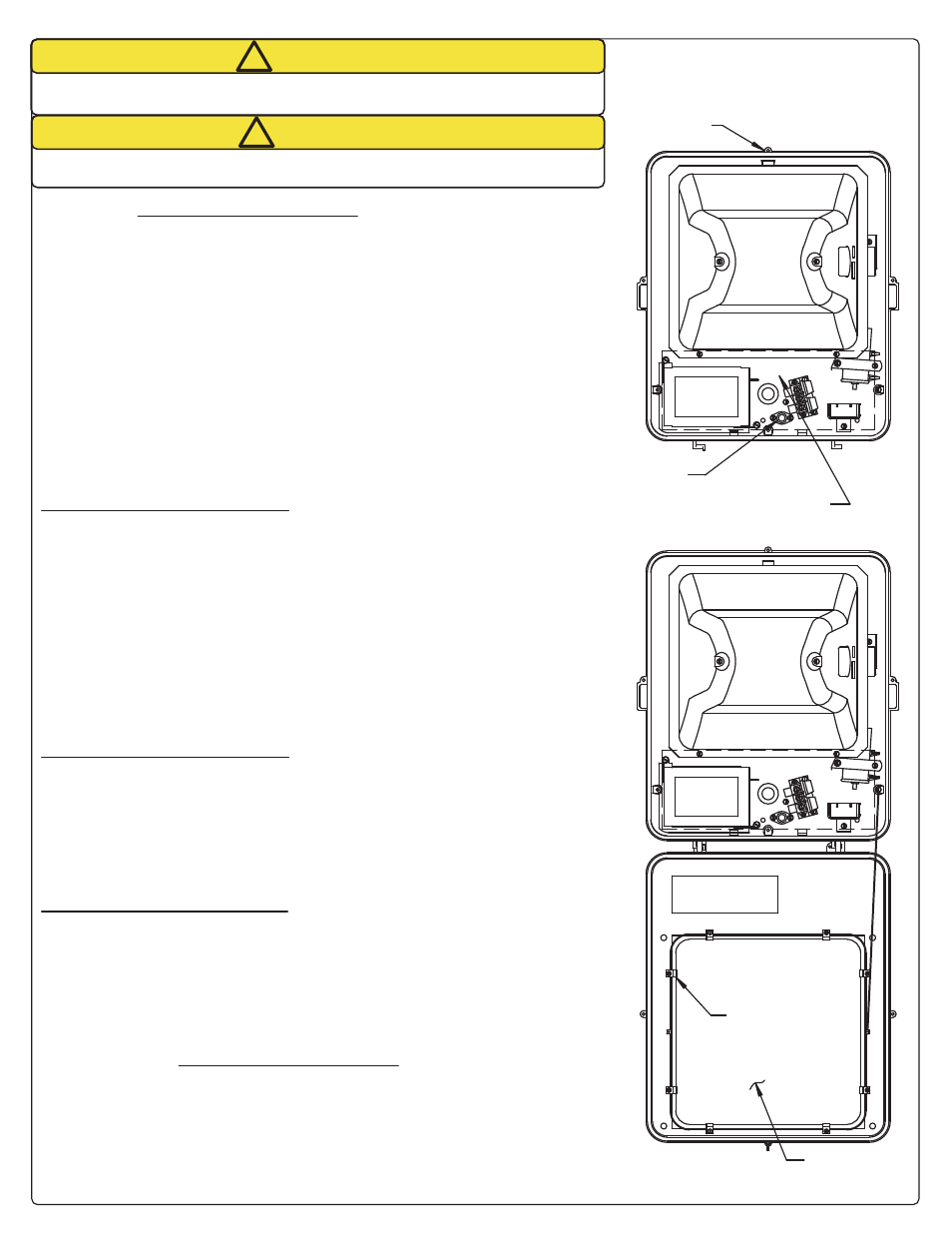

LENS CLIP
AND SCREW
LENS
CLOSURE
SCREW
POWER CORD
ENTRY
WIRING
COMPARTMENT
