INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
CORVUS MEDIUM (CVM) CORVUS MEDIUM (CVM) cont. cont.

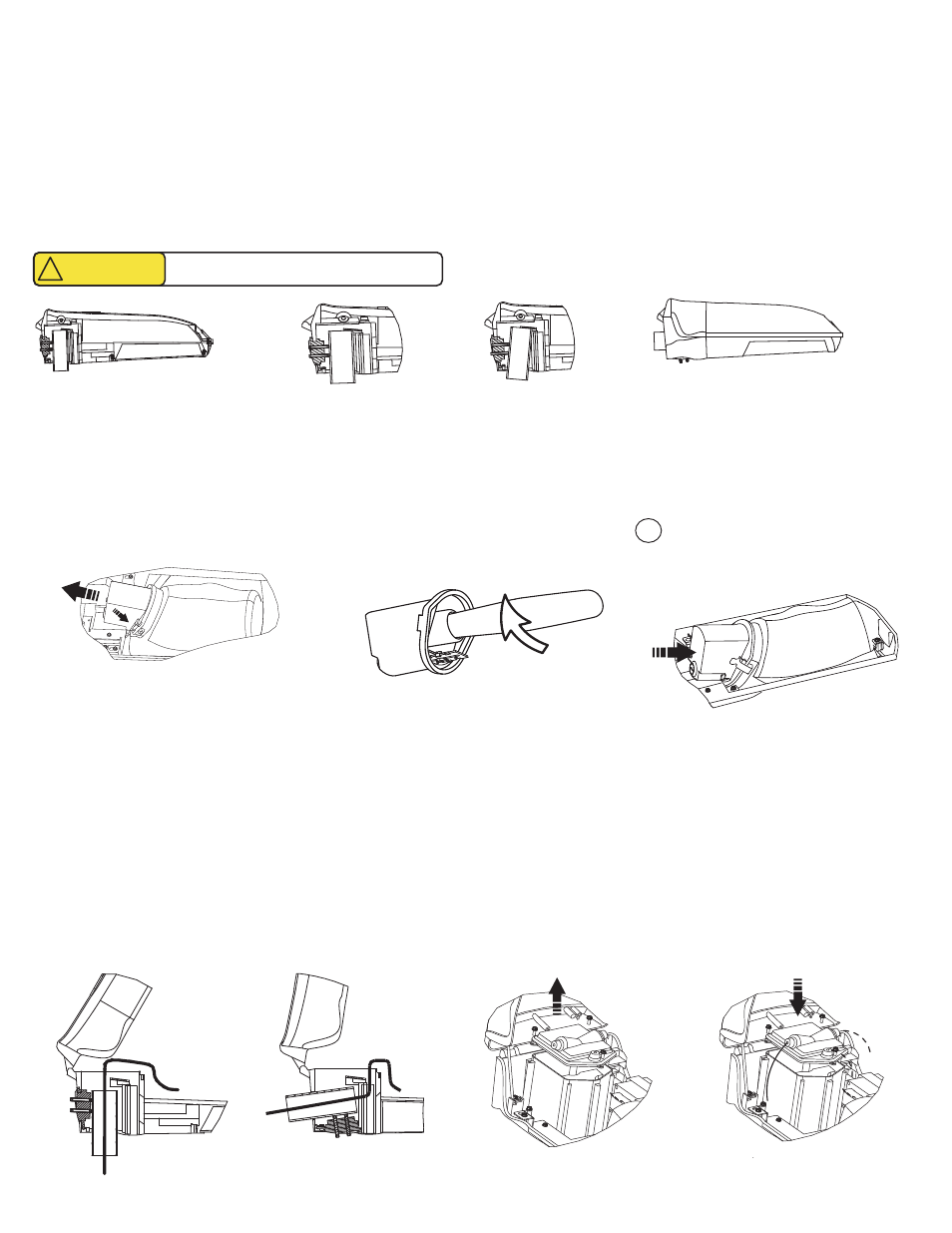

MOUNTING: MOUNTING:
NOTE: THIS UNIT WILL ACCEPT SIDE MOUNTING POLES NOTE: THIS UNIT WILL ACCEPT SIDE MOUNTING POLES
WITH AN EXTERIOR DIAMETER BETWEEN 1 5/8” AND 2.375”. WITH AN EXTERIOR DIAMETER BETWEEN 1 5/8” AND 2.375”.
THIS UNIT WILL ACCEPT VERTICAL MOUNTING POLE THIS UNIT WILL ACCEPT VERTICAL MOUNTING POLE
WITH AN EXTERIOR DIAMETER BETWEEN 2.375” AND 3.0” WITH AN EXTERIOR DIAMETER BETWEEN 2.375” AND 3.0”
1. WHEN PLACING THE UNIT ON THE POLE, FEED THE 1. WHEN PLACING THE UNIT ON THE POLE, FEED THE
SUPPLY LEADS THROUGH THE MOUNTING BASE OF SUPPLY LEADS THROUGH THE MOUNTING BASE OF
THE UNIT. THE UNIT.
WIRING: WIRING:
N NOTE: THIS PROCEDURE IS NOT NECESSARY IF UNIT IS OTE: THIS PROCEDURE IS NOT NECESSARY IF UNIT IS
SUPPLIED WITH PRE-WIRE. SUPPLIED WITH PRE-WIRE.
1. OPEN THE UNIT. 1. OPEN THE UNIT.
2. LOCATE THE WIRING DIAGRAM ATTACHED TO THE 2. LOCATE THE WIRING DIAGRAM ATTACHED TO THE
INSIDE OF THE HOOD. INSIDE OF THE HOOD.
3. USING THE WIRING DIAGRAM AS A GUIDE, CONNECT 3. USING THE WIRING DIAGRAM AS A GUIDE, CONNECT
THE POWER SUPPLY LEADS TO THE TERMINAL BLOCK. THE POWER SUPPLY LEADS TO THE TERMINAL BLOCK.
4. CONNECT THE GREEN OR BARE GROUND SUPPLY WIRE 4. CONNECT THE GREEN OR BARE GROUND SUPPLY WIRE
TO THE CASTING BY HOOKING IT AROUND THE HEAD OF TO THE CASTING BY HOOKING IT AROUND THE HEAD OF
THE GREEN GROUNDING SCREW, LOCATED BESIDE THE THE GREEN GROUNDING SCREW, LOCATED BESIDE THE
TERMINAL BLOCK, AND TIGHTENING THE SCREW TERMINAL BLOCK, AND TIGHTENING THE SCREW
SECURELY. SECURELY.
5. CLOSE THE UNIT. 5. CLOSE THE UNIT.
LAMP INSTALLATION: LAMP INSTALLATION:
11. OPEN THE UNIT. . OPEN THE UNIT.
2. 2. REMOVE REMOVE SOCKET SOCKET HOLDER CLAMPS HOLDER CLAMPS..
3. TIGHTEN LAMP WITH ENOUGH TORQUE TO FULLY 3. TIGHTEN LAMP WITH ENOUGH TORQUE TO FULLY
DEPRESS AND LOAD THE CENTER CONTACT OF THE DEPRESS AND LOAD THE CENTER CONTACT OF THE
SOCKET. SOCKET.
CAUTION
DO NOT TIGHTEN SET SCREWS
BEYOND 15 ft-lb. TORQUE.
!
N NO OTTE E:: O ON N TTH HE E C CV VM M N NO O TTO OO OLLIIN NG G IIS S N NE EC CE ES SS SA AR RY Y FFO OR R TTH HE E
P PH HO OTTO OC CO ON NTTR RO OLL INSTALLATION OR ADJUSTMENT. INSTALLATION OR ADJUSTMENT.
11.. IIN NS SE ER RTT TTH HE E P PH HO OTTO OC CO ON NTTR RO OLL IIN NTTO O TTH HE E R RE EC CE EP PTTA AC CLLE E..
22.. TTU UR RN N TTH HE E P PH HO OTTO OC CO ON NTTR RO OLL TTO OW WA AR RD D N NO OR RTTH H B BY Y LLIIFFTTIIN NG G
A AN ND D TTU UR RN NIIN NG G S SIMULTANEOUSLY UNTIL IT IS FACING IMULTANEOUSLY UNTIL IT IS FACING
NORTH. NORTH.
PPH HO OTTO OC CO ON NTTR RO OLL::
VERTICAL MOUNTING VERTICAL MOUNTING
HORIZONTAL MOUNTING HORIZONTAL MOUNTING
0° 0° 5° 5°
IF LAMP IS MARKED IT CONTAINS MERCURY. IF LAMP IS MARKED IT CONTAINS MERCURY.
FOLLOW DISPOSAL LAWS. SEE WWW.LAMPRECYCLE.ORG FOLLOW DISPOSAL LAWS. SEE WWW.LAMPRECYCLE.ORG
Hg
NOTE: IF UNIT IS PRE-WIRED, INSTEAD OF STEP 1, FEED NOTE: IF UNIT IS PRE-WIRED, INSTEAD OF STEP 1, FEED
THE SUPPLIED PRE-WIRE THROUGH THE MOUNTING BASE THE SUPPLIED PRE-WIRE THROUGH THE MOUNTING BASE
AND DOWN THE POLE. AND DOWN THE POLE.
2. ORIENT THE UNIT SO THAT THE CLOSURE LATCH 2. ORIENT THE UNIT SO THAT THE CLOSURE LATCH
IS TO THE STREET SIDE. IS TO THE STREET SIDE.
3. TIGHTEN THE TWO MOUNTING SET SCREWS. 3. TIGHTEN THE TWO MOUNTING SET SCREWS.
NOTE: NEMA SPECIFIES TORQUE OF 35 in-lbs. NOTE: NEMA SPECIFIES TORQUE OF 35 in-lbs.
4. PLACE SOCKET HOLDER IN PLACE AND SECURE CLAMPS. 4. PLACE SOCKET HOLDER IN PLACE AND SECURE CLAMPS.
5. CLOSE THE UNIT. 5. CLOSE THE UNIT.
6. ENERGIZE AND VERIFY OPERATION. 6. ENERGIZE AND VERIFY OPERATION.
VERTICAL MOUNT VERTICAL MOUNT HORIZONTAL MOUNT HORIZONTAL MOUNT
