American Electric Lighting a division of Acuity Lighting Group, Inc. Conyers, GA

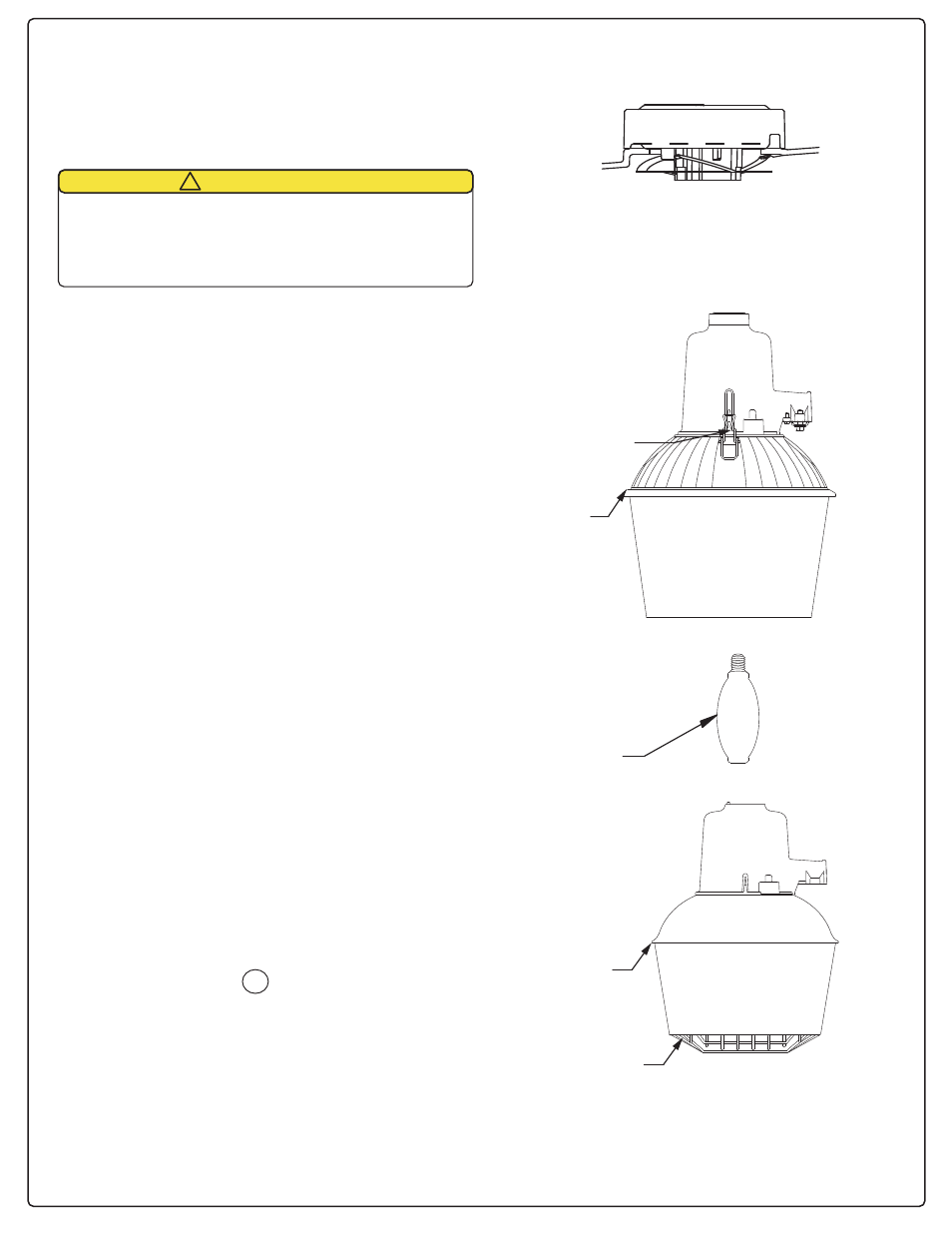

DRAWING NO. A71964 REV A (BACK)

PART NUMBER 057-71-

71964

BULB

*REFLECTOR AND LENS

TOGETHER MAKE UP

OPTICAL ASSEMBLY

LIFT AND ROTATE THE RECEPTACLE SO THAT THE ARROW

ON THE TOP POINTS NORTH. RELEASE THE RECEPTACLE.

PLUG THE PHOTOCONTROL INTO THE RECEPTACLE AND

TWIST IT CLOCKWISE UNTIL IT LOCKS INTO POSITION

2. CONNECT THE WHITE FIXTURE WIRE TO THE WHITE

SERVICE WIRE, CONNECT THE BLACK FIXTURE WIRE

TO THE BLACK SERVICE WIRE. THE 24" MAST REQUIRES

CONNECTING THE GROUNDING LEAD AROUND THE

GROUNDING BOLT BETWEEN THE MAST ARM BRACKET

AND WASHER. TIGHTEN ALL SCREWS SECURELY.

ALT: CONNECT GROUNDING LEAD BETWEEN GROUND

SCREW AND FIXTURE AS SHOWN ON BACK.

1. BEFORE WIRING THIS FIXTURE, CONSULT THE LOCAL

ELECTRICAL CODES FOR WIRING AND GROUNDING

REQUIREMENTS.

WIRING

CAUTION

DO NOT LEAVE THE PHOTOCONTROL COVERED

WITH THE BOX, OR OTHER MATERIAL, FOR

SEVERAL HOURS AS DAMAGE TO THE

PHOTOCONTROL, OR TO THE FIXTURE, MAY

RESULT

1. ENERGIZE THE FIXTURE BY TURNING ON THE

ELECTRICAL SUPPLY. TO CHECK THE OPERATION

OF THE FIXTURE DURING DAYLIGHT, COVER THE

PHOTOCONTROL WITH THE BOX THAT IT CAME IN.

(NEVER USE ALUMINUM FOIL OR ANY OTHER

ELECTRICALLY CONDUCTIVE MATERIAL TO COVER

THE PHOTOCONTROL.) THE FIXTURE SHOULD LIGHT

WITHIN 5 MINUTES, AND IT WILL TAKE APPROXIMATELY

10 MINUTES FOR IT TO ATTAIN FULL BRILLIANCE.

NOTE: SOME MODELS OF PHOTOCONTROL WILL TURN THE

LIGHT ON AND IN A FEW MINUTES TURN OFF. THEN, AFTER

3 TO 5 MINUTES DELAY, IT WILL TURN ON. THIS IS NORMAL,

AND IT IS NOT A CAUSE FOR CONCERN. IT DOES NOT MEAN

THAT THE PHOTOCONTROL OR THE FIXTURE IS DEFECTIVE

(A DEFECTIVE PHOTOCONTROL WILL KEEP THE LIGHT ON

ALL DAY AND ALL NIGHT.)

2. REMOVE THE BOX FROM THE PHOTOCONTROL AND IT

WILL TURN OFF. AGAIN, THERE MAY BE A DELAY OF

SEVERAL MINUTES BEFORE THE LIGHT EXTINGUISHES.

THE FIXTURE IS NOW READY TO OPERATE AUTOMATICALLY

ON AT DUSK,OFF AT DAWN.

TESTING

SPRING LATCH

OPTICAL

ASSEMBLY

WIRE MESH

OPTICAL

ASSEMBLY

MH LAMP OPTION

INSTALLING OPTIONAL PHOTOCONTROL

OPTIONAL

IF LAMP IS MARKED

IT CONTAINS MERCURY.

FOLLOW DISPOSAL LAWS.

SEE WWW.LAMPRECYCLE.ORG
