HID ActivID AAA OOB & SSL - Manual (Page 4)

4TRESS AAA Out-of-Band Authentication (SMS) and SSL VPN Fortinet | Integration Handbook
External Release | © 2012-2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved. Page | 4
2.0 Secure Access Configuration
This chapter describes how to manage FortiGate Secure Access.
2.1 Procedure 1: Configure the RADIUS Authentication Server
Getting Started
1. Logged into the FortiGate
Web console, navigate to
User > Remote > RADIUS.
2. Click Create New.

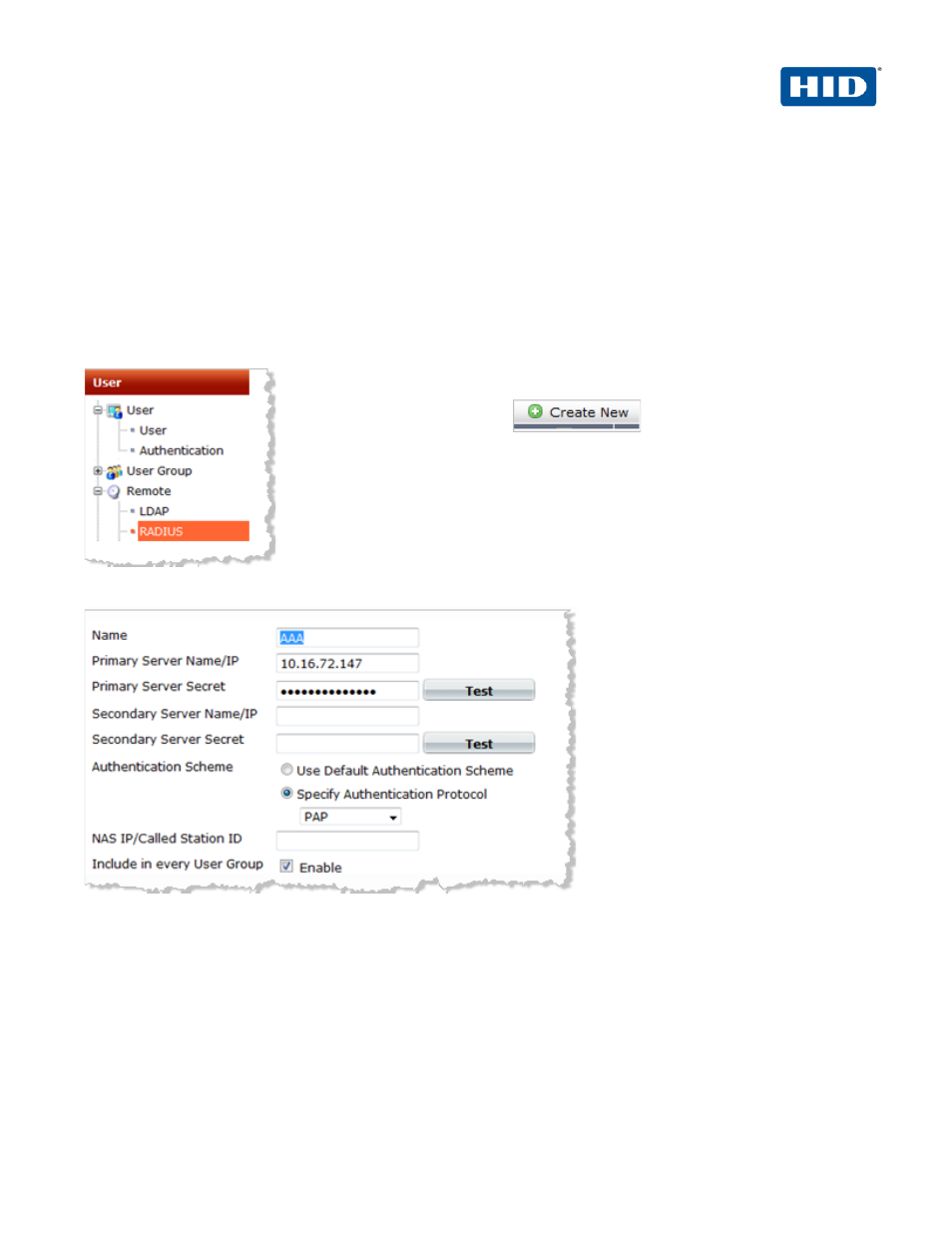

The following dialog is displayed.
3. Enter the following attributes.
• Name—Enter the name that is used to identify the AAA server on the FortiGate unit.
• Primary Server Name/IP—Enter the domain name or IP address of the primary AAA server.
• Primary Server Secret—Enter the RADIUS server secret key for the primary AAA server. The primary
server secret key should be a maximum of 16 characters in length.
• Secondary Server Name/IP—Enter the domain name or IP address of the secondary AAA server, if you
have one.
