4.3 Procedure 3: Create An Out-of-Band Delivery Gateway
4TRESS AAA supports OOB authentication (SMS) via telephones. The actual SMS one-time password is a
random number generated by the Appliance and sent to the end user through a delivery gateway. To create a
gateway, perform the following steps using the AAA Server Administration Console.

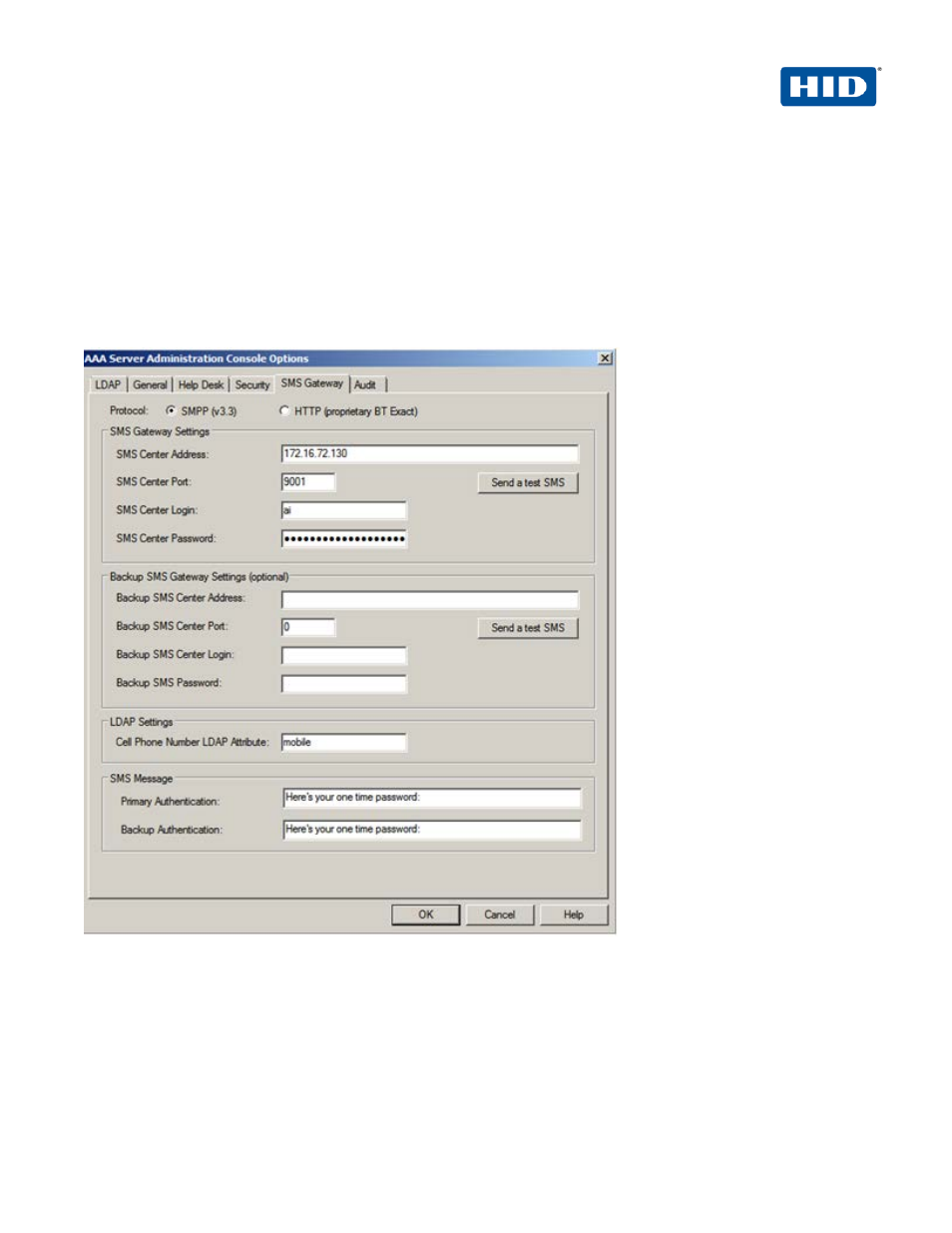

1. Select Tools, and then click Options.
2. Select the SMS Gateway tab.
3. Select the Protocol to use for sending the SMS to the cell phone.
4. For SMS Center Address, enter the IP address or domain name of the SMS Center’s server.
5. Enter the SMS Center Port number for the above server.
6. Enter the login and password credentials that the AAA Server uses to authenticate to the SMS Center server.
7. For Cell Phone Number LDAP Attribute, enter the attribute used by your organization’s LDAP directory for
user phone numbers.
