HID ActivID AAA OOB & SSL - Manual (Page 15)

4TRESS AAA Out-of-Band Authentication (SMS) and SSL VPN Fortinet | Integration Handbook
External Release | © 2012-2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved. Page | 15
4.0 Configure 4TRESS AAA
This chapter describes how to configure the 4TRESS AAA Authentication Server.
4.1 Procedure 1: Configure FortiGate Gate
A gate for the 4TRESS AAA Server is a group of Network Access Servers (NAS) that is used to simplify
administration. For configuration details, refer to 4TRESS AAA Server technical documentation.

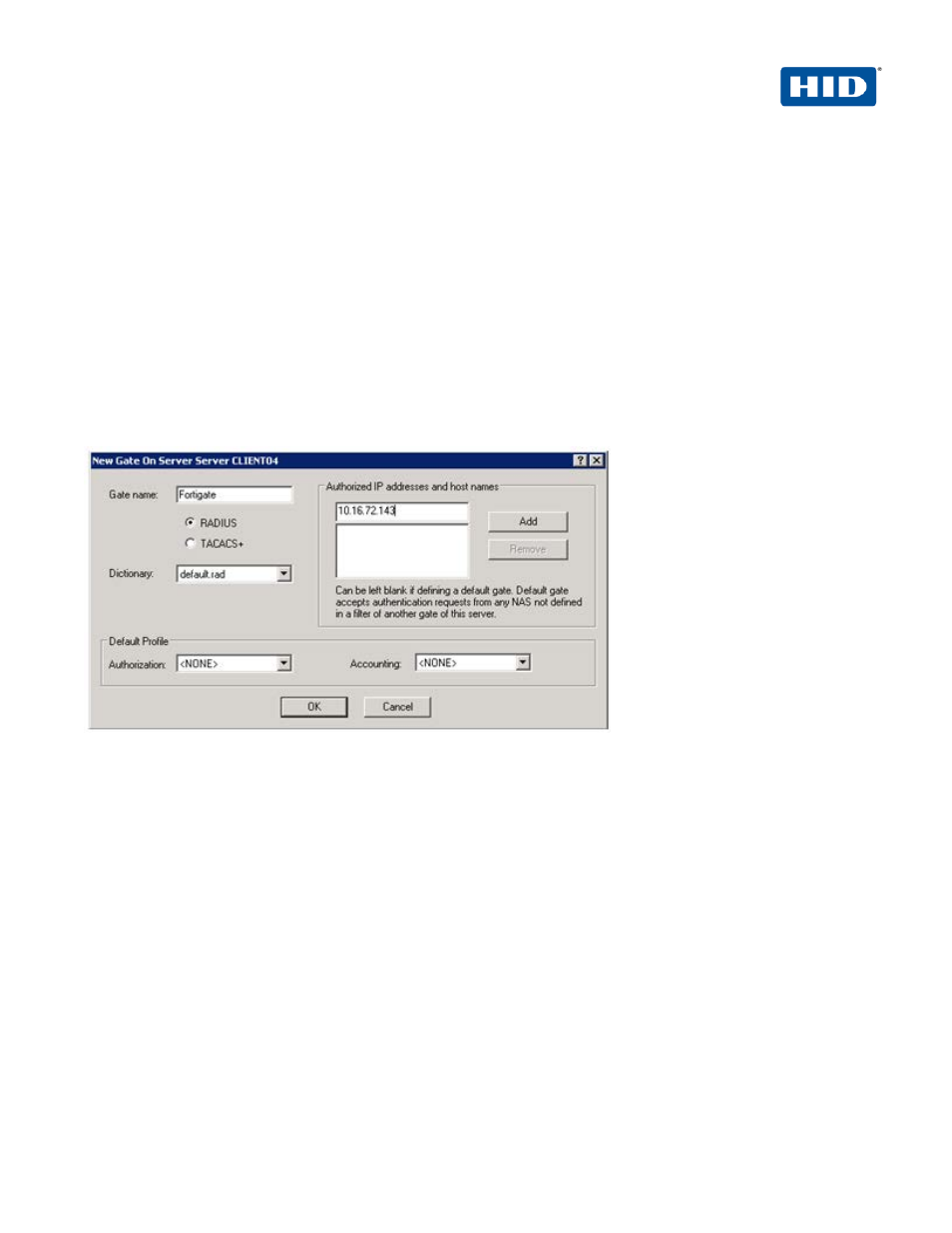

1. In the tree in the left pane of the Administration Console, expand the Servers line.
2. Right-click on the server to which you want to add a gate, and then click New Gate.
3. Enter a Gate name (can be any string).
4. Select the option, RADIUS.
5. Use the Authorized IP addresses and host names section to specify filter(s) for the gate.
6. Click Add, and then click OK.
