VertX EVO V1000 Installation Guide

Step 1

Connect

1.1

What you need before getting started

Prior to starting the installation, completely read this guide.

Reference the

Configuration Checklist

, page 15, and gather the information before proceeding with these instructions.

CAUTION: VertX controllers and panels are sensitive to Electrostatic Discharges (ESD). Observe precautions
while handling the circuit board assembly by using proper grounding straps and handling precautions at all
times.

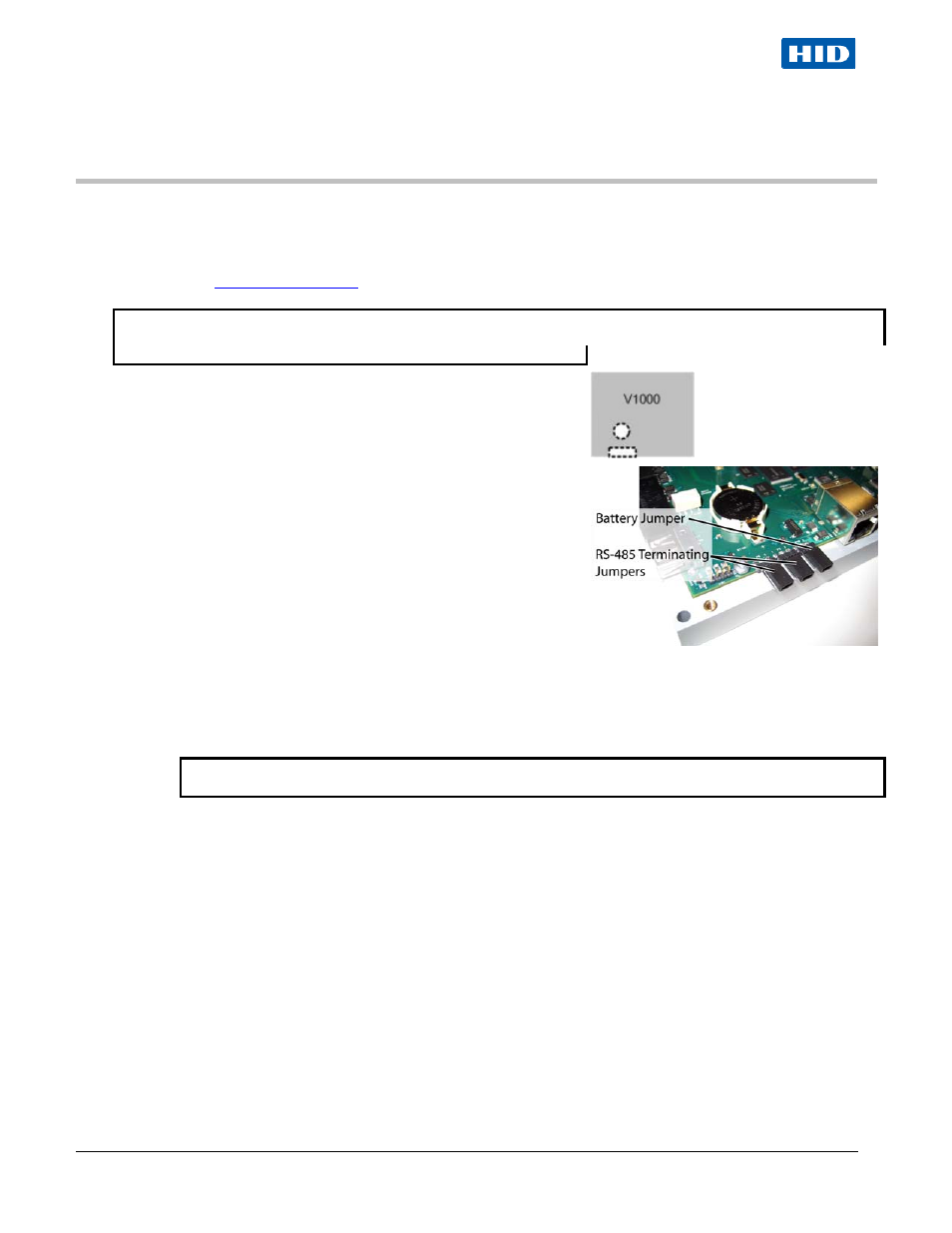

1.2

V1000

1. Verify the battery jumper is installed in the ON position, P10

connector.

2. If installing a V1000 - Verify the RS-485 termination jumper is

in the Out position when there are no panels attached to the
port. If there are downstream interface panels attached, place
the termination jumper in the In position. The V1000 is shipped
with jumpers in the Out positions

1.3

Mounting Instructions

1. Always mount the controllers and interface panels in a secure

area.

2. Mount using the four mounting screws (provided) or other

appropriate fasteners. Place the fasteners in the corner holes
of the base.

3. Stack the VertX EVO devices with or without the cover. Do not remove the plastic base. Position the VertX EVO

devices in such a way as to provide room for wiring, air-flow and cable runs.
CAUTION: Stacking the VertX EVO devices without the cover risks the danger of breaking the LEDS
unless spacers are used for separation.

July 2011

Page 5 of 19
