MaxiProx

Installation Guide

Part No. 5375-901, Rev E.1

March 2012

Page 11 of 19

2.16 Install Cover

Replace the top cover and top cover screw. Make sure that the Auto-tune indicator LED remains in a
steady green state. If the LED is red, remove the cover and re-mount the unit using a non-metallic
spacer to position it further away from the mounting surface. Reinstall the cover, verify Auto-tune, and
install the front label over the top cover screw and the Auto-tune indicator lens.

11.800

+/ - .03

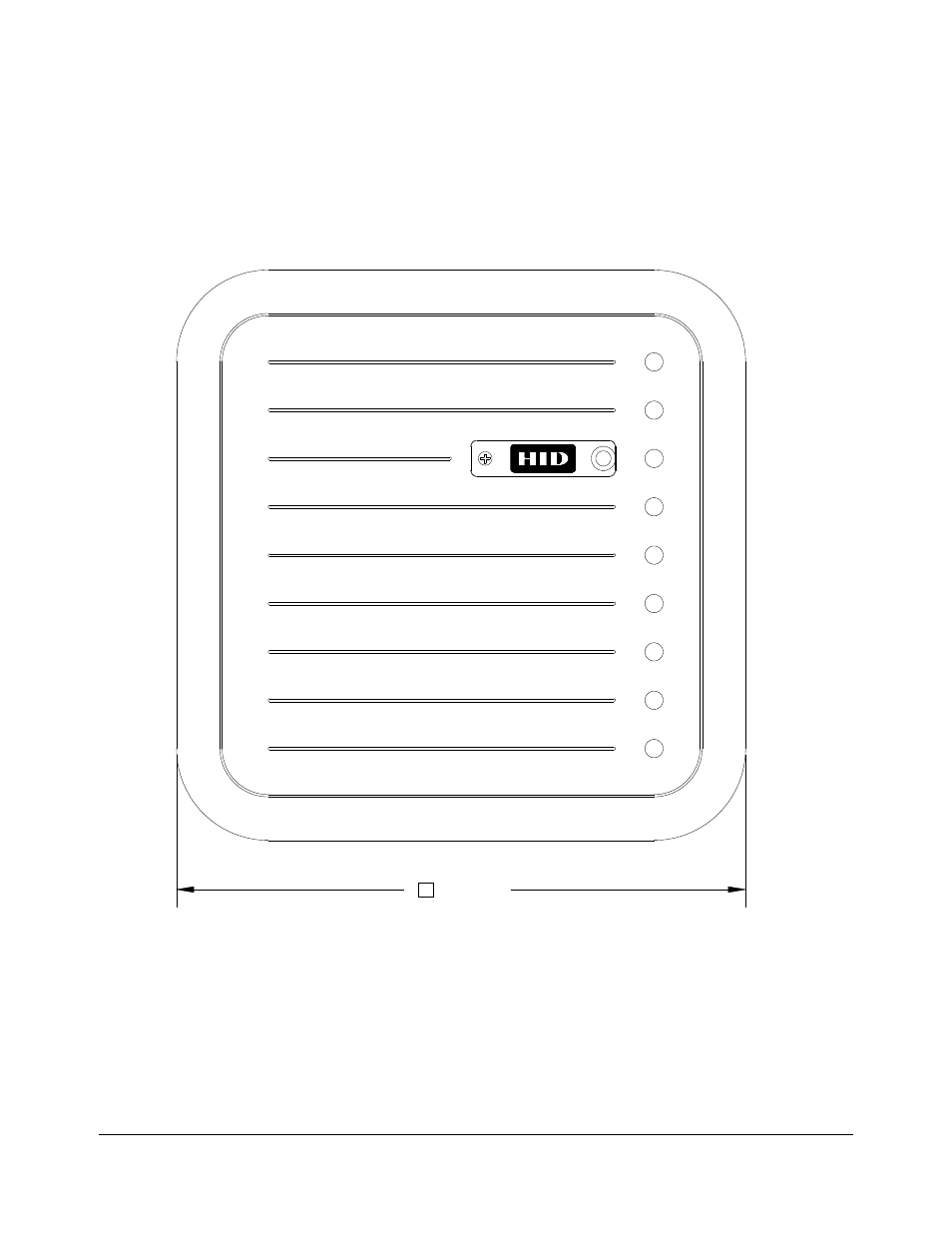

Figure 1: MaxiProx Front View
